1.5-2.8kw Monophase Sine Wave Alternator (QFB160 Series)
| Price: |
Negotiable |
| Min Order: |
1 |
| Pay Type: |
T/T |
1, Portable emergency power supply when working with gasoline generator;
2, Monophase AC power output;
3, Special design, keeps the THDu less than 5%;
4, AVR (automatic voltage regulator) makes the stable voltage output (brush excitation);
5, High quality AC power output.
Type
| Frequency
| Rated Power
(KW)
| Max. Power (KW)

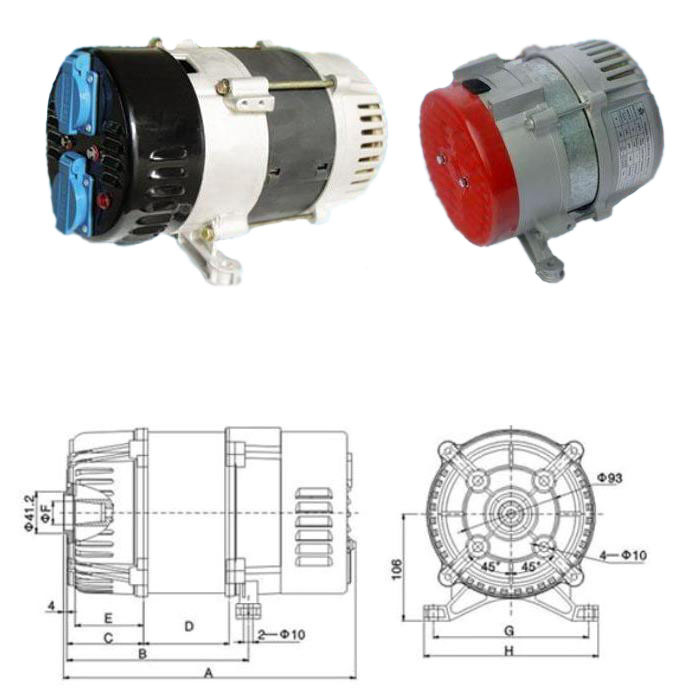

| Overall & Mounting Dimensions
| Matching Engine Type & Taper parameters
|
A
| B
| C
| D
| E
| ΦF
| G
| H
|
A1
| A2
| B1
| B2
| G1
| G2
| H1
| H2
|
QFB160-1.5
| 50Hz
| 1.5
| 1.7
| 283.5
| 276
| 173.5
| 166
| 76
| 70
| 35/55
| 20.8/23
| 165
| 150
| 194
| 173
| General engine 1:5
|
60Hz
| 1.8
| 2
|
QFB160-2
| 50Hz
| 2
| 2.2
| 297.5
| 290
| 187.5
| 180
| 85
|
60Hz
| 2.3
| 2.5
|
QFB160-2.5
| 50Hz
| 2.5
| 2.8
| 332.5
| 325
| 212.5
| 205
| 110
|
60Hz
| 2.8
| 3.2
|
QFB160-2
| 50Hz
| 2
| 2.2
| 297.5
| 290
| 187.5
| 180
| 76
| 85
| 36
| 21.5
| 165
| 150
| 194
| 173
| Honda engine 1:5.333
|
60Hz
| 2.3
| 2.5
|
QFB160-2.5
| 50Hz
| 2.5
| 2.8
| 332.5
| 325
| 212.5
| 205
| 110
|
60Hz
| 2.8
| 3.2
|
Insulation Class
| F (T≤105K) & H (T≤125K)
|
Power Factor (cosφ)
| Single phase cosφ=1
|
Rated Voltage (V)
| 110,115,120,220,230,240,110/220,120/240,230/400
|
DC Output
| 12V / 8.3A
|
Excitation
| QFB160 Type : Brush-excitation + AVR
|
Note
| THDu ≤ 5%
|
Parts list
| Stator + Rrotor(Include Ball Bearing & Radiator Fan) + Protect Plate + Electric Brush+ AVR + End Cover+ Head Cover + Fix Frame + Other Parts
|
| Prod Model: |
QFB160 Series |
