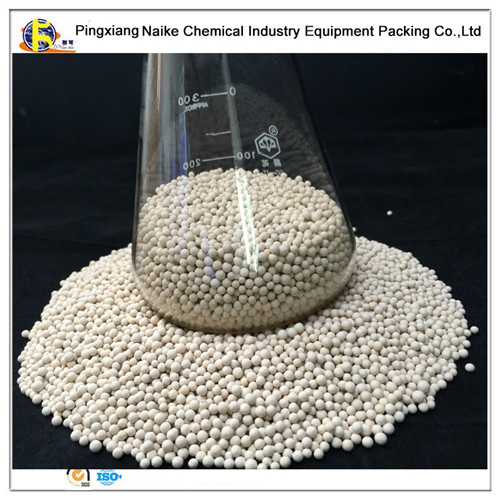

zeolite PSA molecular sieve 5a
product name | molecular sieve 5a |
| type | 5a |
| brand | NKCHEM |
| shape | pellet, sphere |
| diameter | 1-2mm, 2-3mm, 2.5-5mm |
| classfication | Chemical Auxiliary Agent |
| color | as picture |
| package | carton box, iron drum |
| MOQ | 1 ton |
| regenetion | yes |
| delivery | 7-15 days, depends on quantity |
| place of origin | jiangxi, China |
| price | FOB shenzhen, shanghai |
| payment term | T/T, L/C, west union |
| application | oxygen production, separation of normal andiso paraffins |
Introduction:
Molecular sieve 5A is an alkali alumino silicate; it is the calcium form of the Type A crystal structure. Type 5A has an effective pore opening of 5 angstroms (0.5 nm). It will adsorb molecules with a kinetic diameter of less than 5 Angstrom and exclude those larger.
It is especially suitable for PSA adsorber applications where it may be used for the separation of normal- and iso- paraffins (C4 to C6 species), in PSA hydrogen purification and in oxygen concentrators.
Typical Chemical Formula:
0.7 CaO . 0.3 Na2O . Al2O3 . 2 SiO2 . 4.5H2O
Application:
The strong ionic forces of the divalent calcium ion makes it an excellent adsorbent to remove water, CO2, H2S from sour natural gas streams, while minimising COS formation. Light mercaptans are also adsorbed.
It is also used for the separation of normal- and iso paraffins.
Production of high purity N2, O2, H2 and inert gases from mixed gas streams.
Technical Parameter:
Item |
Unit |
Technical data |
Shape |
|
Pellet |
Sphere |
Diameter |
mm |
1.5-1.7 |
3.0-3.3 |
1.7-2.5 |
3.0-5.0 |
Size ratio up to grade |
% |
≥98 |
≥98 |
≥96 |
≥96 |
Bulk density |
g/ml |
≥0.64 |
≥0.64 |
≥0.66 |
≥0.66 |
Wear ratio |
% |
≤0.20 |
≤0.40 |
≤0.20 |
≤0.20 |
Crushing strength |
N |
≥30/cm |
≥45/cm |
≥30/piece |
≥60/piece |
Static water adsorption |
% |
≥21.5 |
≥21.5 |
≥21.5 |
≥21.5 |
Water content, as shipped |
% |
≤1.5 |
≤1.5 |
≤1.5 |
≤1.5 |
Regeneration:
Molecular sieve Type 5A can be regenerated by either heating in the case of thermal swing processes; or by lowering the pressure in the case of pressure swing processes.
To remove moisture from a 5A molecular sieve, a temperature of 250-300°C is required. A properly regenerated molecular sieve can give moisture dew points below -100°C, or mercaptan or CO2 levels below 2 ppmv.
The outlet concentrations on a pressure swing process will depend on the gas present, and on the conditions of the process.
Size:
5A - Zeolites are available in beads of 1-2 mm, (10x18 mesh) 2-3 mm, (8x12 mesh) , 2.5-5 mm, (4x8 mesh) and as powder, and in pellet 1.6, 3.2.
Pingxiang Naike Chemical Industry Equipment Packing Co., Ltd. (also known as NKCHEM), the top leading mass transfer product manufacturer of tower packing (column packing) and chemical ceramic. NKCHEM was established from the consortium of several existing factories with 38 years history.
NKCHEM isChinese largest manufacturer of tower packings and Column Internals. We supplies a full range of tower packings, inert balls, column internals, plastic packings and demisters (mist eliminators) - for all mass and heat transfer applications, in all relevant materials and sizes, anywhere in the world.
The program is complemented by an expert advice service from our technical applications department including configurations using our extremely comprehensive NKCHEM tower packing software...
Product overview
NKCHEM supplies a wealth of column-related products and consultation services for the most diverse applications e. g.:
* Absorption
* Desorption
* Distillation
* Extraction
* Drying
* Cooling
* Humidification
* Water treatment
* Droplet separation(demisters)
* Desalination
* FCC & RFCC
* Faucet Aerator and much more
NKCHEM has a distinguished and experienced team of experts & engineers to provide our customers with up-to-date mass transfer products & technologies at the most competitive price. Our customer service dept. Is providing fast & good services for our customers because NKCHEM takes the services as one of the important competitive factors too. NKCHEM is an ISO9001 certified company. Quality is the first consideration of NKCHEM. Our products are of German technology & workmanship but at Chinese competitive price.
Stock: To meet the requirement of urgent demand of our clients, NKCHEM keeps enough quantity products in stock especially for the traditional standard random & structured packing, ceramic balls and molecular sieves.
Applications: Petrochemical, Chemical, Pollution Control, and Metallurgy industries.
Products:
Random tower packing (column packing): Intalox saddles, Super saddles, Nutter rings, Cross partition rings, Cascade rings, Raschig rings, Conjugate rings, Catalyst bed support inert alumina ceramic balls, and VSP. Materials are available with ceramic, plastic, and metal.
Structured tower packing (column packing): Ceramic, plastic, and metal structured tower packing.
Ceramic products: Tourmaline Ceramic ball, Honeycomb Monoliths, Molecular sieves, Acid resistant ceramics, Wear resistant ceramics, Grinding ceramic balls, and Heat exchange ceramics.
