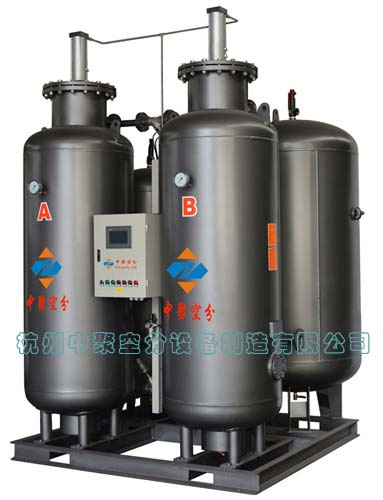

Zbn Nitrogen Generator

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	L/C,T/T,D/P

Contact Supplier

Hangzhou Sinopoly as Manufacturing Co., Ltd

Showroom Product Company Profile

Adopts carbon molecular sieve as adsorbent,the two adsorbers alternately adsorbing and regenerating to separate oxygen from nitrogen in air .
Under certain pressure, with the use of the difference of diffusion rate between nitrogen and oxygen into air on carbon molecular sieve; oxygen molecule ins absorbed largely by the carbon molecular sieve and nitrogen molecule concentrates in gas-phase in a short time, so as to realize separation of oxygen and nitrogen.
Due to the absorption capacity of carbon molecular sieve for oxygen varies largely from different pressure, reducing the pressure can make the carbon molecular sieve release absorbed oxygen molecular and regenerate the carbon molecular sieve, so as to realize repeated recycling of it.
It adopts the technique of two absorption towers, whcih one tower absorbs oxygen and produces nitrogen, while another tower releases the absorbed oxygen and regenerates the carbon molecular sieve. This cyclic-alternating Patten can produce high-quality nitrogen continuously.

ZBN nitrogen generator parameter table (purity: (99.999%)

Model	Output	Effective gas consumption	Import and export caliber (mm)		Air purification system	Note
	(Nm3/h)	(Nm3/min)				Air purification system and PSA nitrogen generator entirety installation
ZBN-5A	5	0.68	DN15	DN15	ZJ-1
ZBN-10A	10	1.36	DN25	DN15	ZJ-2
ZBN-15A	15	2.05	DN32	DN15	ZJ-3
ZBN-20A	20	2.72	DN 32	DN 15	ZJ-3
ZBN-30A	30	4.1	DN40	DN15	ZJ-6
ZBN-40A	40	5.5	DN40	DN25	ZJ-6
ZBN-60A	60	8.2	DN50	DN25	ZJ-10
ZBN-80A	80	11.1	DN50	DN25	ZJ-15
ZBN-100A	100	13.6	DN50	DN32	ZJ-15
ZBN-120A	120	16.4	DN65	DN32	ZJ-20
ZBN-140A	140	19.0	DN65	DN40	ZJ-20	Air purification system and PSA nitrogen generator Segregate installation
ZBN-160A	160	21.8	DN80	DN40	ZJ-30
ZBN-200A	200	27.2	DN85	DN40	ZJ-30
ZBN-300B	300	41.0	DN100	DN50	ZJ-50
ZBN-400B	400	55.0	DN125	DN50	ZJ60

ZBN nitrogen generator parameter table (purity: 99.99%)

Model	Output	Effective gas consumption	Import and export caliber (mm)		Air purification system	Note
	(Nm3/h)	(Nm3/min)				Air purification system and PSA nitrogen generator entirety installation
ZBN-5B	5	0.41	DN15	DN15	ZJ-1
ZBN-10B	10	0.82	DN25	DN15	ZJ-2
ZBN-15B	15	1.23	DN25	DN15	ZJ-2
ZBN-20	20	1.64	DN32	DN 15	ZJ-3
ZBN-30B	30	2.45	DN32	DN15	ZJ-3
ZBN-40B	40	3.28	DN40	DN25	ZJ-6
ZBN-60B	60	4.9	DN40	DN25	ZJ-6
ZBN-80B	80	6.5	DN50	DN32	ZJ-10
ZBN-100B	100	8.1	DN50	DN32	ZJ-10
ZBN-120B	120	9.8	DN50	DN40	ZJ-10
ZBN-140B	140	11.3	DN50	DN40	ZJ-15	Air purification system and PSA nitrogen generator Segregate installation
ZBN-160B	160	13.0	DN50	DN40	ZJ-15
ZBN-200B	200	16.2	DN65	DN40	ZJ-20
ZBN-300B	300	24.5	DN80	DN50	ZJ-30
ZBN-400B	400	32.8	DN100	DN50	ZJ40
ZBN-500B	500	40.5	DN100	DN50	ZJ-50
ZBN-600B	600	49.0	DN125	DN50	ZJ-60

ZBN nitrogen generator parameter table (purity: 99.9%)

Model	Output	Effective gas consumption	Import and export caliber (mm)		Air purification system	Note
	(Nm3/h)	(Nm3/min)				Air purification system and PSA nitrogen generator entirety installation
ZBN-5C	5	0.31	DN15	DN15	ZJ-1
ZBN-10C	10	0.62	DN25	DN15	ZJ-2
ZBN-20C	20	1.24	DN25	DN15	ZJ-2
ZBN-30C	30	1.86	DN32	DN 15	ZJ-3
ZBN-40C	40	2.48	DN32	DN25	ZJ-3
ZBN-60C	60	3.72	DN40	DN25	ZJ-6
ZBN-80C	80	4.96	DN40	DN32	ZJ-6
ZBN-100C	100	6.2	DN50	DN32	ZJ-10
ZBN-120C	120	7.4	DN50	DN40	ZJ-10
ZBN-150C	150	9.3	DN50	DN40	ZJ-10
ZBN-200C	200	12.4	DN50	DN40	ZJ-15	Air purification system and PSA nitrogen generator Segregate installation
ZBN-300C	300	18.6	DN65	DN50	ZJ-20
ZBN-400C	400	24.8	DN80	DN50	ZJ-30
ZBN-600C	600	37.3	DN100	DN50	ZJ-40
ZBN-800C	800	49.6	DN100	DN65	ZJ50
ZBN-1000C	1000	62.0	DN125	DN65	ZJ-80
ZBN-1500C	1500	93.0	DN150	DN80	ZJ-100

ZBN nitrogen generator parameter table (purity: 99.0%)

Model	Output	Effective gas consumption	Import and export caliber (mm)		Air purification system	Note
	(Nm3/h)	(Nm3/min)				Air purification system and PSA nitrogen generator entirety installation
ZBN-10D	10	0.41	DN15	DN15	ZJ-1
ZBN-20D	20	0.83	DN25	DN15	ZJ-2
ZBN-30D	30	1.22	DN25	DN15	ZJ-2
ZBN-40D	40	1.65	DN32	DN25	ZJ-3
ZBN-50D	50	2.06	DN32	DN25	ZJ-3
ZBN-80D	80	3.3	DN40	DN32	ZJ-6
ZBN-100D	100	4.1	DN40	DN32	ZJ-6
ZBN-150D	150	6.2	DN50	DN40	ZJ-10
ZBN-200D	200	8.3	DN50	DN40	ZJ-10
ZBN-300D	300	12.2	DN50	DN50	ZJ-15
ZBN-400D	400	16.5	DN65	DN50	ZJ-20	Air purification system and PSA nitrogen generator Segregate installation
ZBN-600D	600	24.5	DN80	DN50	ZJ-30
ZBN-800D	800	33.1	DN100	DN65	ZJ-40
ZBN-1000D	1000	41.2	DN100	DN65	ZJ-50
ZBN-1500D	1500	62.0	DN125	DN80	ZJ80
ZBN-2000D	2000	82.7	DN150	DN100	ZJ-100
ZBN-2500D	2500	103.2	DN150	DN100	ZJ-120

ZBN nitrogen generator parameter table (purity: 98%)

Model	Output	Effective gas consumption	Import and export caliber (mm)		Air purification system	Note
	(Nm3/h)	(Nm3/min)				Air purification system and PSA nitrogen generator entirety installation
ZBN-10E	10	0.36	DN15	DN15	ZJ-1
ZBN-20E	20	0.72	DN25	DN15	ZJ-2
ZBN-30E	30	1.08	DN25	DN15	ZJ-2
ZBN-50E	50	1.8	DN32	DN15	ZJ-3
ZBN-80E	80	2.9	DN32	DN25	ZJ-3
ZBN-100E	100	3.65	DN40	DN25	ZJ-6
ZBN-150E	150	5.4	DN40	DN32	ZJ-6
ZBN-200E	200	7.2	DN50	DN32	ZJ-10
ZBN-300E	300	10.8	DN50	DN40	ZJ-15
ZBN-500E	500	18.2	DN65	DN40	ZJ-20
ZBN-600E	600	21.8	DN80	DN50	ZJ-30	Air purification system and PSA nitrogen generator Segregate installation
ZBN-800E	800	29.2	DN80	DN50	ZJ-30
ZBN-1000E	1000	36.35	DN100	DN50	ZJ-40
ZBN-1500E	1500	54.5	DN125	DN65	ZJ-60
ZBN-2000E	2000	72.5	DN125	DN65	ZJ80
ZBN-2500E	2500	91.2	DN150	DN80	ZJ-100
ZBN-3000E	3000	108.5	DN150	DN100	ZJ-120

ZBN nitrogen generator parameter table:(99.5%)

Model	Output	Effective gas consumption	Import and export caliber (mm)		Air purification system	Note
	(Nm3/h)	(Nm3/min)				Air purification system and PSA nitrogen generator entirety installation
ZBN-5	5	0.24	DN15	DN15	ZJ-1
ZBN-10	10	0.47	DN15	DN15	ZJ-1
ZBN-20	20	0.95	DN25	DN15	ZJ-2
ZBN-30	30	1.38	DN32	DN15	ZJ-3
ZBN-50	50	2.35	DN32	DN25	ZJ-3
ZBN-60	60	2.8	DN32	DN25	ZJ-3
ZBN-80	80	3.7	DN40	DN32	ZJ-6
ZBN-100	100	4.6	DN40	DN32	ZJ-6
ZBN-150	150	7.0	DN50	DN40	ZJ-10
ZBN-200	200	9.2	DN50	DN40	ZJ-10
ZBN-300	300	13.8	DN50	DN50	ZJ-15	Air purification system and PSA nitrogen generator Segregate installation
ZBN-500	500	23.5	DN80	DN50	ZJ-30
ZBN-600	600	27.8	DN80	DN50	ZJ-30
ZBN-800	800	36.8	DN100	DN65	ZJ-40
ZBN-1000	1000	46.5	DN100	DN65	ZJ50
ZBN-1500	1500	70.2	DN125	DN80	ZJ-80
ZBN-2000	2000	93.5	DN150	DN100	ZJ-100

Prod Model:	ZBN
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gas Source:	Natural Gas

Hangzhou Sinopoly As manufacturing Co., Ltd is a professional manufacturer which produces PSA nitrogen making equipment, PSA oxygen making equipment, VPSA oxygen making equipment, compressed air purification equipment etc.

The company combined with the R&D, design manufacturing and marketing. Qualify with the perfect production conditions, equipment installation, configuration, maintenance and service. It also hire the expert in the field of new material and engineering thermodynamics as technical consultant to ensure that our products and technical is always in the line of technology and provide a reliable and scientific guarantee of product design and manufacturing. Sinopoly air separation is becoming a technical leader in the line of compressed air purification and pressure swing adsorption.

Company's products are mainly divided into: PSA nitrogen(oxygen) equipment, VPSA analytical oxygen equipment, vacuum gas purification equipment, membrane separation nitrogen (oxygen) devices, freeze dryer, micro heat regenerative dryer, heatless regenerative dryer, heat regenerative dryer, filter and other ten series of specifications. Products are widely used in petroleum, petrochemical, electric power, chemical industry, metallurgy industry, coal industry, pharmaceutical industry, aerospace, automotive industry, plastics industry, chemical fiber, rubber, glass industry, food industry, electronic industry and aquaculture and other fields.

Company is located in Fuyang Gaoqiao Industrial park, adjacent to Hangzhou West lake, Fuchun river, Qiandao lake and other national places of interests.
