Product Characteristic:
1. Portable, using ultra-light composite material and engingering plastics, the weight of 2500g, installation or disassembly in 3 minutes and a small space occupied
2. The machine head can be arbitrary rotated with anti-winding devices
3. Large capacity, to be Wind-Solar Hybrid power supply system with solar cells
4. Can meet the need of portable computer, instrument, mobile phones and lighting
Wind speed 5.6m/s, the output of wind-solar hybrid system
Per month(assessment)
The power of wind tubine The power of solar panel Kw. H
100W 50W 20
100W 100W 26
100W 150W 32
100W 200W 38
Large capacity, to be Wind-Solar Hybrid power supply system with solar cells, can meet the need of portable computer, instrument, mobile phones and lighting.
|

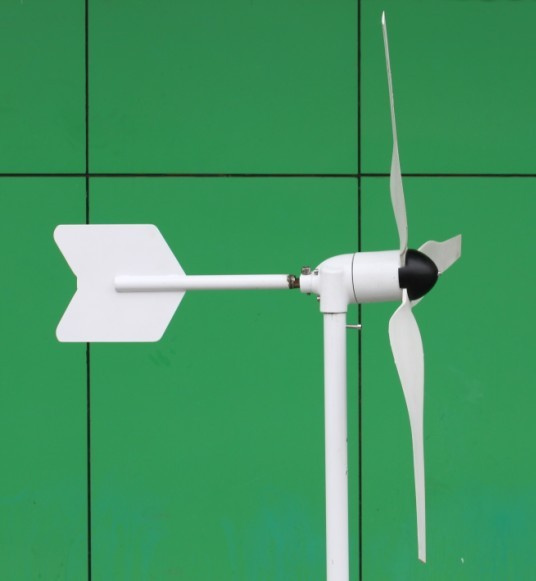

Model |
Z-50W |
Z-100W |
|
Name |
Hyacinth |
Hyacinth |
|
Rated power |
50w |
100w |
|
Rated DC Voltage |
12v/24v |
12v/24v |
|
Rated current |
1050r/m |
860r/m |
|
Max power |
65W |
115W |
|
Start-up wind speed |
3m/s |
3m/s |
|
Cut-in wind speed |
3.5m/s |
3.5m/s |
|
Cut-out wind speed |
15m/s |
15m/s |
|
Security wind speed |
45m/s |
45m/s |
|
Rated wind speed |
12m/s |
12m/s |
|
Engine |
Three-phase permanent magnet generator |
Three-phase permanent magnent generator |
|
Rotor diameter |
830MM |
830MM |
|
Number of blade |
3pcs |
3pcs |
|
Blade materials |
Carbon fiber reinforced plastics |
Carbon fiber reinforced plastics |
|
Output line anti-winding device |
Overall three phase commutator |
Overrall three phase commutator |
|
Wind protection |
Tip stall protection+turned protection+electromagnetic brake |
Tip stall protection+turned protection+electromagnetic brake |
|
Life span |
15 years |
15 years |
|
Equipment surface protection |
Galvanization plastic coating |
Galvanization plastic coating |
|
Weight |
2.6KG |
2.8KG |
ShenZhen GREEN ELEC technology Co., Ltd. is a high-tech enterprise which makes commitment to wind powder research, development, production and marking. The company has advanced experiment equipment of wind power and open wind tunnel with diameter of 2.9m. A number of outstanding domestic and international wind power experts makes efforts for the company extraordinary contribution to product development. Company's research results about usage of weak winds, which expand the application scope of wind power generator, have been successfully applied to the field of wind power. ShenZhen GREEN ELEC Technical Co., Ltd, has several domestic and foreign patents. Our products have had the EU CE certification and step into global market with high appraisement.
The company has 50, 000 sets of Wind-solar Hybrid wind turbine production ability and we can supply vertical and horizontal types of products. The company has many distribution agencies, What's more, a large number or agents around the world join our sales.
The company is working on a variety of renewable energy research including sea tide power generating, sea wave power generation, getting water with wind power and power generation at high altitude. We hope to make a brilliant future with friens who are interested in the cause of renewable energy.
We will uphold our corporate philosophy: Creation, Struggle and Return.
The company is eager to work on the struggle for the mankind's survival and development.
