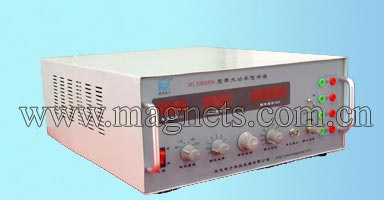

Broad Band Power Signal Generator/signal generator/electronic signal generator
General Description
1.3866 series broad band power signal generators are a kind of electronic measuring devices, characterized in wide band, ample power and high voltage.
2. It is the ideal signal source device for producing and detecting the soft magnetic materials and electro-transformers. It can be combined with 258 series power meter to form a complete set of testing system, and also used as factory and lab's signal source of corresponding frequency channel.
3. With a stable property and convenient manipulation, 3866 series broad band power signal generator series have been widely used in producing and detecting the soft magnetic materials and transformers during the past decades.
Features:
1, 3866 series broad band power signal generator is ideal signal source testing device in the production process of soft magnetic materials and electrical transformer.
2, It is a complete testing system when using together with power meter, and also applicable as corresponding signal source for factory and lab..
3, It is stable and easy to operate.
Frequency Range |
10KHz~1MHz |
Frequency Display |
6 digital numbers |
display tolerance < 0.2% |
Power Output |
10KHz~1MHz, ≥ 100W |
10KHz~500KHz, > 160W |
Resistance Output |
R> 2Ω |
Voltage Output |
60V, 120V, 180V, 240V |
Nonlinear distortion: |
Signal output: 10KHz~40KHz< 0.3%, 200KHz< 1% |
Power Output: 10KHz~200KHz< 2% |
Power Output |
10KHz~200KHz< 2% |
Measuring Range |
Voltage: 60V, 120V, 180V, 240V |
Current: 5A, 1A, 0.5A, 0.1A |
Dimension |
40× 440× 160 (mm) |
Weight |
15kg |
For more detail info, please feel free to visit our website or inquire us at any of your convenience.
www.magnetequip.com
