Small solar power system ====> detailed features:
Small solar power systems have these detailed features:
A). Nicely designed appearance and special control technology.
B). Newly designed and promsing.
C). Different light power and styles as your choice: 3W, 5W, 7W, 10W etc.
D). Very clean and energy saving lithium batteries or LIFEPO4 batteries, lifespan could reach 8 years.
E). Remote-control switch could turn on or turn off lamps in 50 meters.
F). Built-in aluminum radiator make sure of LED good heat radiation and long life time
G). High-bright LED light, life time 100000 hours
H). ABS Box, small size and easy to take
I). High quality solar panels monocrystalline, or polycrystalline, you could choose folding solar panels
J). Aluminum-alloy shell, UV coating, varnish-finished,
K). Anti aging Anti-oxidative
L). Special and attractive, could let users have buying attemption
Small solar powre system ==>Lithium batteries DC12V
*Built-in Lithium Battery, designed life span could reach 8-10 years
*Decoration lamp, easy installation, no electricity bill, safety 12V voltage, could fix balcony, hall, bedroom, building.
*solar lithium battery lights, special and nice appearance, different design with local market products
Small solar power system===>Parameters:
1. Mono Solar panel: 10W
2. Lithium Battery: DC12V 4.5AH,
3. Could match 5W LED Lights 3PCS, We match 2PCS as basic.
4. Output voltage: DC12V, 3PCS of ports. 1 USB port for charging different mobile phones.
5. LED lights: 2pcs of remote-control LED lights.
6. Can choose hand-operated switch. Color of led lights: Red, Black, White, Green, Blue etc.
7. LED power(Optioned): 2W, 3W, 5W, 9W (price will be different). Normal LED lights are cheaper than LED lights.
8. Nice package, and could send friends or relatives as gifts
9. Could take anywhere as wish.
Small solar power system ===>high-quality Lithium-control technology:
Intelligent Switch: Hand operation and remote-control operation, two optionals, convenient to use.
Small solar power system ==>Specications:
1. Name: Distant control small solar power system
*Apple-style and aluminum-alloy shell, UV coating, varnish-finished, Anti aging Anti-oxidative
*Built-in aluminum radiator make sure of LED good heat radiation and long life time
*High-bright 1W LED light 5PCS, life time 50000 hours
*Remote-control switch, intelligently and easily to control lamp, and could operate in 100 meters
*ABS Box, small size and easy to take
*Built-in Lithium Battery, designed life span could reach 10 years
*Popular solar distant-control pendant lamp
*Decoration lamp, easy installation, no electricity bill, safety 12V voltage, could fix balcony, hall, bedroom, building.
*Mono solar panel 5W-20W
*Lithium Battery 12V 3AH/4.5AH/7AH/10AH, could power 3PCS of LED lights
*Output 12V voltage, 3PCS of DC output ports, USB 5V to charge different mobile phones.
*Match 2PCS of LED Apple remote-control lights, could use hand-operate switch, various color: Red, black, white, green, blue etc.

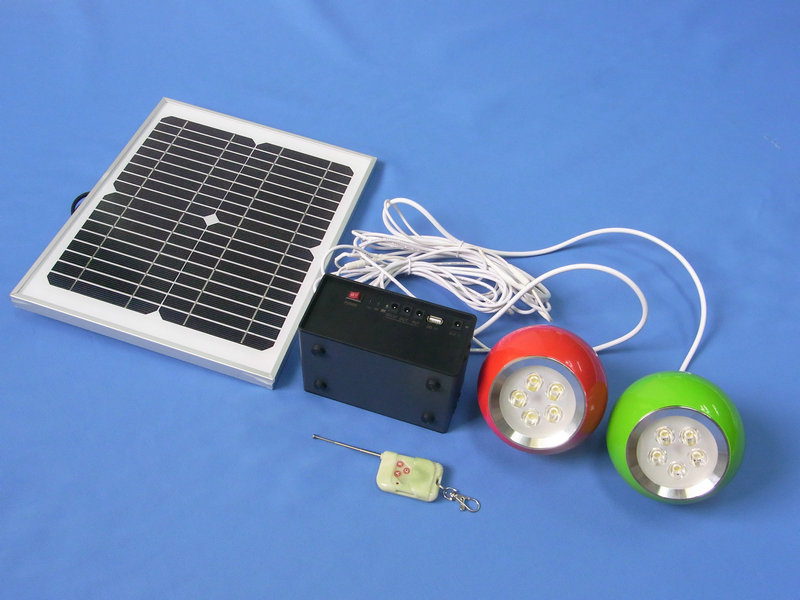

Small solar power system ==>main components:
B. 10W 18V poly crystalline solar panel, solar panel efficiency>=16%.
C. 7AH DC12V Lithium batteries or LIFEPO4 Storage batteries.
D. Provide 6-8h lighting for 2 LED bulbs from full battery.
E. 6-8 hours charge time at full sunshine.
F. Main components:
Solar panel
Power box with battery and controller
3W DC LED lamp 2pcs
5m lamp cable with switch
10-in-1 usb cable for different phone charging
G. Can light up 2-3 rooms at the same time, with mobile phone charge function, overcharge and over-discharge protection.
Small solar power systems ===> Details: *.Small solar power system matches DC12V Lithium batteries or LIFEPO4 Batteries.
*.Lifespan for batteris could reach 8-10 years, very durable
*.LED colors and shapes are different, could choose as wish
*.We have apple/gourd/cup/oven styles for LED lamps for choice
*.small solar power is not heavy, could ship by air.
*.Small solar power system uses nice battery box to fill in control-circuit and batteries
*.Advanced control technology specialy designed for Lithium battteries DC12V, keep batteries working very steady and safety, could charge fast.
*.Widely used, could take anywhere as wish.
*.attractive,promising, once look at them and wish to buy.
*.Not expensive,very useful for every family.
Small solar power systems ===>Detailed paramters of lithium batteries:
a).Mono Solar panel: 3W-20W
b).Lithium Battery/LIFEPO4 Batteries DC12V 2.3AH--7AH(could be larger as required)
c).Could match DC12V 3W/5W/7W LED Lights 3PCS,We match 2PCS as basic configuration.
d).Output voltage: DC12V, 3PCS of ports. DC5V with 1 USB port for charging different mobile phones.
e).LED lights: 2pcs of remote-control Apple LED lights.
f).can choose hand-operated switch. Color of led lights: Red,Black,White, Green, Blue etc.
g).LED power(Optioned):2W,3W, 5W, 9W (price will be different). Normal LED lights are cheaper than Apple LED light.
Small solar power systems ===>Installation and operation instructions:
Operating temperature: -10°C~40°C,
Storage temperature: -15°C-50°C,
5W-30W systems no-load consumption: ≤5mA,
1.Open the package box to take out the components and accessories.
Turn on the switch and check the voltage value. Lower than 11V means need to be charged.
Voltage value shows 13.8V means the battery is full charged.
|
Maximum power |
30W |
|
Solar panel |
30W 18V |
|
Controller |
DC24V5A |
|
Storage battery |
12V 15AH |
|
Inverter |
No. |
|
Max. output capacity of host load |
150 WH |
|
Output voltage |
5V 12V |
|
Solar panel efficiency |
More than 16% |
|
Operating temperature |
-40 to +85 centi-degree |
|
Lifespan |
25 years |
Charge steps:
First, turn on the switch.
Second, connect the solar panel with battery box. Keep charging until the voltage value reach 13.8V. Then disconnect them and turn off the switch.
Note: make sure to turn on the switch before connecting and only use the system after full charged.
2.For 5W-30W systems, red indicator refers to DC12V output, and green indicator refers to DC5V output. Output interface in the middle provides 12V power, which can support LED light. The USB connector offers 5V power for cell phone charging.
III, General failure and recovery processing.
1.If the voltage value keeps still after long time of charging, please check if the solar panel is toward the sunshine, or if the switch is on, or if the battery is already full charged, or if the wire is correctly connected.
2.No-load output indicator and load output indicator are off when equipment is connected and turned on: please check if the battery is of low voltage, or if the voltage is lower than 10V. If it is lower than 10V, please charge it for at least 10 hours before using.
3.No-load output but load output indicator is on:please check if the connector is well connected, or if it is over loaded, or short-circuited.
3.If it is short-circuited, please disconnect it and reconnect it 1 minute later.
|
Technical Data: |
|
Solar Panels |
Type |
1 X 30W YUGE30-18 Panel |
|
Rated Maximum Power (Pmax) |
30W |
|
Cell Type |
Mono |
|
Tolerance |
± 3% |
|
Voltage @ Pmax (Vmp) |
18V |
|
Current @ Pmax (Imp) |
1.74A |
|
Short Circuit Current (Isc) |
1.9A |
|
Open Circuit Voltage (Voc) |
21.5V |
|
Nominal Operating Cell Temperature |
47°C ± 2°C |
|
Panel Dimensions |
445*540*30mm |
|
Standard Test Conditions |
25°C 1.5AM ,1000W/m2 |
|
Battery |
Voltage |
12V |
|
Capacity |
17Ah |
|
Battery Type |
Deep Cycle, Lead acid |
|
Pedestal |
Construction |
Steel, Outdoor Rated |
|
Pedestal Dimensions |
256*150*170mm |
|
Charge Controller |
battery status indicators, |
|
Output Voltage |
DC12V,DC5V |
|
Working Temp., Humidity |
-20 ~ +70° C, 20 ~ 90% RH |
|
Storage Temp., Humidity |
-20 ~ +85° C, 10 ~ 95% RH |
|
Package Data |
|
Package Measure of Pedestal |
290*160*275mm |
|
G.W. of Power Box |
11.5KG |
|
Package Measure of Solar Panels |
445*540*30mm |
|
G.W. of Solar Panels |
2.8KG |
|
Package Measure of Bracket |
/ |
|
G.W. of Bracket |
/ |
|
20'Container Can Load |
1400sets |
|
40'Container Can Load |
3000sets |
|
Fitting List |
|
Item name |
Description |
QTY (pcs) |
|
Solar Panels |
18V 30W |
1 |
|
Battery |
12V 17AH |
1 |
|
Inverter |
/ |
/ |
|
Solar Panel Bracket |
/ |
1 |
|
Pedestal |
/ |
1 |
|
Cable |
/ |
3m |
|
LED Lamp |
3W |
1 |
|
DC Connector |
/ |
2 |
|
Mobile charge connector |
/ |
5 |
|
Remote Control |
/ |
1 |
|
Max Power Supply Capacity Reference |
|
SF-20W Solar Home System |
|
|
|
|
|
Loads Name |
Load's Watt |
QTY |
Working Hours |
Consumption |
|
LED Lamp |
3W |
1 |
50 |
150WH |
|
Total |
3W |
|
|
150WH |
Breakdown and disposal
1 Solar panel indicator off: Please check whether the solar panel is facing the sun; whether the machine switch is on; whether the battery is in full capacity state; whether the connecting of the solar panel is short-circuit or reversed.
2 No load output and the load indicator off: Please check whether the battery is in low voltage, whether the voltmeter showing is less than 10V and if it so, please charge the battery for 10 continuous hours and then use it.
3 No load output, load indicator on: Please check whether there is bad connection of the load, then connect again. Check whether the load is overloaded, short-circuit, and disconnect the load for 1 minute, then connect again.
Small solar power system ==> Maintenance
1.Avoid putting under direct sun or in damp place, in case it is filled with water, please turn off the switch and dry it before using.
2.Turn off the switch and charge it every two months under the condition of long-term nonuse.
3. This small solar power system should be used indoor. Please do not expose the machine into sunshine and wet places. If there is water inside by accident, please turn off the switch and dry the water inside and then you can use it.
4. If you are going not to use this machine for long, please turn off the power switch and charge the battery every month (battery voltage higher than 14V.)
5. Please do not make the battery in the state of low voltage. Otherwise it will shorten the using time of the battery. After one time of low voltage, please charge over 2 days and then use it.
|
Item |
small solar power system |
Model number |
YUGEF03 |
|
Bulb Material |
High quality PC |
Solar board size |
34*28.5*18 cm |
|
Power |
10W |
Voltage |
DC 5-24 V |
|
Lumious Flux |
200-240 lm |
Bulb size |
53*110 mm |
|
Ra |
>75% |
Frequency Range |
50Hz--60Hz |
|
Charging time |
15-18 hours |
Storage cell power |
12 V / 7 Ah |
|
Lighting time |
8-24 hours after full charge |
Working Temperature |
-30°C~+80°C |
|
Life-span |
≥50000H |
Warranty |
2 years |
|
Solar board material |
poly crystal line silicon / mono crystal line silicon |
|
Color available |
Warm white : 2700-3500 k; White: 5500-6500 k |
|
USB connection |
10 in 1 ( power charging for 10 kinds mobile phones) |
|
Connection cable |
data cable, 5 meters cable lines with switches in 3 roads |
|
Comments |
Also accept customer's personal requests on led solar lighting |
V.Notes
Never dissemble the system unless you are professional.
Operate under the guiding of the instruction manual.
Small solar power system ==>advantages:
1. Over charged protection
2. Over discharged protection
3. Lighting protection
4. Backflow protection
5. Reversed charge protection
6. With detailed indicating
