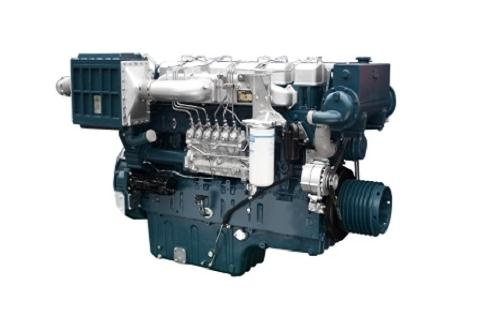

We supply original YUCHAI YC6C,YC6T,YC6A,YC6B,YC4D,YC4F series Marine diesel engine.
YUCHAI marine engine for ship, fishing-boat,boat ,generator auxiliary etc. from 43.5hp-2500hp.
engine use the yuchai technology in Germany and Japanese ship machine technology developed by products.
Techincal Specifications
| Model | YC6C980L-C20 | YC6C820L-C21 | YC6C700L-C20 | YC6C960L-C20 | YC6C925L-C20 | YC6C865L-C20 | YC6C820L-C20 | YC6C730L-C20 | YC6C670L-C20 | YC6C620L-C20 | YC6C650L-C20 | YC6C530L-C20 | YC6C480L-C20 | YC6CL1200L-C20 | YC6CL1135L-C20 | YC6CL1035L-C20 | YC6CL925L-C20 | YC6CL775L-C20 | YC6CL750L-C20 | YC6CD750L-C20 | YC6CD700L-C20 | YC6CD600L-C20 | YC6CD540L-C20 |
|---|
| Type | Vertical, in-line, water-cooled, four stroke | Vertical, in-line, water-cooled, four stroke | Vertical, in-line, water-cooled, four stroke | Vertical, in-line, water-cooled, four stroke | Vertical, in-line, water-cooled, four stroke | Vertical, in-line, water-cooled, four stroke | Vertical, in-line, water-cooled, four stroke |
| Intake way | Turbo charging& inter-cooled | Turbo charging& inter-cooled | Turbo charging& inter-cooled | Turbo charging& inter-cooled | Turbo charging& inter-cooled | Turbo charging& inter-cooled | Turbo charging& inter-cooled |
| No. of cylinders - Bore × Stroke(mm) | 6-200×210 | 6-200×210 | 6-200×210 | 6-200×210 | 6-200×290 | 6-200×290 | 6-180×210 |
| Displacement(L) | 39.58 | 39.58 | 39.58 | 39.58 | 54.6 | 54.6 | 32 |
| Compression ratio | 14.5:1 | 14.5:1 | 14.5:1 | 14.5:1 | 14.5:1 | 14.5:1 | 13.5:1 |
| Continuous power/speed (kW(Ps)/r/min) | 720(980)/1500 | 600(820)/1500 | 515(700)/1000 | 706(960)/1350 | 680(925)/1350 | 636(865)/1350 | 603(820)/1200 | 536(730)/1200 | 492(670)/1200 | 455(620)/1200 | 478(650)/1000 | 390(530)/1000 | 352(480)/1000 | 882(1200)/1000 | 835(1135)/1000 | 760(1035)/1000 | 680(925)/900 | 570(775)/750 | 550(750)/720 | 551(750)/1350 | 515(700)/1350 | 441(600)/1200 | 396(540)/1000 |
| One-hour power/speed (kW(Ps)/r/min) | 792(1080)/1500 | 660(900)/1500 | 567(770)/1000 | 776.6(1060)/1393 | 748(1020)/1393 | 700(955)/1393 | 663(900)/1238 | 590.4(800)/1238 | 541.2(740)/1238 | 501(680)/1238 | 526(715)/1032 | 429(585)/1032 | 387.2(530)/1032 | 970.2(1320)/1032 | 918.5(1250)/1032 | 836(1140)/1032 | 748(1020)/929 | 627(855)/774 | 605(825)/743 | 606.1(825)/1393 | 566.5(770)/1393 | 485.1(660)/1239 | 435.6(735)/1032 |
| Min specific fuel consumption (g/ kW?h) | 195 | 195 | 195 | 195 | 195 | 195 | 195 |
| Specific oil consumption (g/kW?h) | ≤0.8 | ≤0.8 | ≤0.8 | ≤0.8 | ≤0.8 | ≤0.8 | ≤0.8 |
| Engine oil capacity(L) | 150-180L | 150-180L | 150-180L | 150-180L | 150-180L | 150-180L | 150-180L |
| Crankshaft rotation direction (see from power output end) | Anticlockwise | Anticlockwise | Anticlockwise | Anticlockwise | Anticlockwise | Anticlockwise | Anticlockwise |
| Starting way | Electrical (Gas start is optional) | Electrical (Gas start is optional) | Electrical (Gas start is optional) | Electrical (Gas start is optional) | Electrical (Gas start is optional) | Electrical (Gas start is optional) | Electrical (Gas start is optional) |
| Net weight(kg) | 4700kg | 4700kg | 4700kg | 4700kg | 5380kg | 5380kg | 4700kg |
| Overall dimensions (LxWxH) (mm) | 2760×1285×1940 | 2760×1285×1940 | 2760×1285×1940 | 2760×1285×1940 | 2870×1260×2350 | 2870×1260×2350 | 2760×1285×1940 |
| Certificate | ZC,CCS,IMO | 500kW | 450kW | ZC,CCS,IMO | ZC,CCS,IMO | ZC,CCS,IMO | ZC,CCS,IMO | ZC,CCS,IMO | ZC,CCS,IMO |
| Model | YC6TD700L-C20 | YC6TD645L-C20 | YC6TD605L-C20 | YC6TD655L-C20 | YC6TD600L-C20 | YC6TD550L-C20 | YC6TD540L-C20 | YC6TD480L-C20 | YC6TD435L-C20 | YC6T330C | YC6T375C | YC6T400C | YC6T410C | YC6T450C | YC6T490C | YC6T390C | YC6T420C | YC6T480C | YC6T510C | YC6T540C |
|---|
| Type | Vertical, in-line, water-cooled, four stroke | Vertical, in-line, water-cooled, four stroke | Vertical, in-line, water-cooled, four stroke | Vertical, in-line, water-cooled, four stroke | Vertical, in-line, water-cooled, four stroke | Vertical, in-line, water-cooled, four stroke | Vertical, in-line, water-cooled, four stroke |
| Intake way | Turbo charging& inter-cooled | Turbo charging& inter-cooled | Turbo charging& inter-cooled | Turbo charging& inter-cooled | Turbo charging& inter-cooled | Turbo charging& inter-cooled | Turbo charging& inter-cooled |
| No. of cylinders - Bore × Stroke(mm) | 6-152×180 | 6-152×180 | 6-152×180 | 6-145×165 | 6-145×165 | 6-145×165 | 6-145×165 |
| Displacement(L) | 19.59 | 19.59 | 19.59 | 16.35 | 16.35 | 16.35 | 16.35 |
| Compression ratio | 14:01 | 14:01 | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 |
| Continuous power/speed(kW(Ps)/r/min) | 515(700)/1800 | 475(645)/1800 | 445(605)/1800 | 480(655)/1500 | 441(600)/1500 | 405(550)/1500 | 396(540)/1350 | 352(480)/1200 | 320(435)/1200 | 242(330)/1500 | 275(375)/1500 | 294(400)/1500 | 300(410)/1500 | 330(450)/1500 | 360(490)/1500 | 287(390)/1800 | 308(420)/1800 | 352(480)/1800 | 375(510)/1800 | 396(540)/1800 |
| One-hour power/speed(kW(Ps)/r/min) | 566.5(770)/1858 | 522.5(710)/1858 | 489.5(665)/1858 | 528(720)/1548 | 485(660)/1548 | 445.5(605)/1548 | 435.6(595)/1393 | 387.2(525)/1239 | 352(480)/1239 | 266.2(360)/1548 | 302.5(415)/1548 | 323.4(440)/1548 | 330(450)/1548 | 363(495)/1548 | 396(540)/1500 | 315.7(430)/1858 | 338.8(460)/1858 | 387.2(525)/1858 | 412.5(560)/1858 | 435.6(595)/1858 |
| Min specific fuel consumption(g/kW?h) | 195 | 195 | 195 | 195 | 195 | 195 | 195 |
| Specific oil consumption(g/kW?h) | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 |
| Engine oil capacity(L) | 52 | 52 | 52 | 52 | 52 | 52 | 52 |
| Crankshaft rotation direction (see from power output end) | Anticlockwise | Anticlockwise | Anticlockwise | Anticlockwise | Anticlockwise | Anticlockwise | Anticlockwise |
| Starting way | Electrical (Gas start is optional) | Electrical (Gas start is optional) | Electrical (Gas start is optional) | Electrical (Gas start is optional) | Electrical (Gas start is optional) | Electrical (Gas start is optional) | Electrical (Gas start is optional) |
| Net weight(kg) | 1940 | 1940 | 1940 | 1980 | 1980 | 1980 | 1980 |
| Overall dimensions (LxWxH) (mm) | 1956×980×1100 | 1956×980×1100 | 1956×980×1100 | 1880×1000×1860 | 1880×1000×1860 | 1880×1000×1860 | 1880×1000×1860 |
| Certificate | ZC,CCS,IMO | ZC,CCS,IMO | ZC,CCS,IMO | ZC,CCS,IMO | ZC,CCS,IMO | ZC,CCS,IMO | ZC,CCS,IMO |
| Model | YC6A200L-C20 | YC6108ZLCB | YC6A170C | YC6A190C | YC6A195C | YC6A220C | YC6A250-C20 | YC6A260-C20 |
|---|
| Type | Vertical, in-line, water-cooled, four stroke | Vertical, in-line, water-cooled, four stroke | Vertical, in-line, water-cooled, four stroke |
| Intake way | Turbo charging& inter-cooled | Turbo charging& inter-cooled | Turbo charging& inter-cooled |
| No. of cylinders - Bore × Stroke (mm) | 6-108×132 | 6-108×132 | 6-108×132 |
| Displacement (L) | 7.252 | 7.252 | 7.252 |
| Compression ratio | 17:01 | 17:01 | 17:01 |
| Continuous power /speed (kW (Ps)/r/min) | 145 (200)/1500 | 112 (152)/1500 | 125 (170)/1500 | 140 (190)/1800 | 145 (197)/2300 | 162 (220)/2300 | 183 (250)/2200 | 191 (260)/2300 |
| One-hour power/speed (kW (Ps)/r/min) | 159.5 (220)/1500 | 123.2 (170)/1548 | 137.5 (185)/1548 | 154 (210)/1858 | 159.5 (220)/2374 | 178.2 (240)/2374 | 201 (280)/2270 | 210 (285)/2374 |
| Min. specific fuel consumption (g/kW·h) | ≤198 | ≤198 | ≤198 |
| Specific oil consumption (g/kW·h) | ≤0.8 | ≤0.8 | ≤0.8 |
| Crankshaft rotation direction (seen from power output end) | Anticlockwise | Anticlockwise | Anticlockwise |
| Starting way | Electrical | Electrical | Electrical |
| Net weight (kg) | 770 | 770 | 780 |
| Overall dimensions (LxWxH) (mm) | 1415×910×1075 | 1415×910×1075 | 1430×900×980 |
| Certificate | ZC,CCS,IMO | ZC,CCS,IMO | ZC,CCS,IMO |
| Model | YC6B165C | YC6B165L-C20 | YC6B150C | YC6B165L-C22 | YC6B155C | YC6108ZLCA | YC6108ZCA | YC6108ZC | YC6108CA1 | YC6B100-C20 | YC6108CA |
|---|
| Type | Vertical, in-line, water-cooled, four stroke | Vertical, in-line, water-cooled, four stroke | Vertical, in-line, water-cooled, four stroke | Vertical, in-line, water-cooled, four stroke |
| Intake way | Turbo charging& inter-cooled | Turbo charging& inter-cooled | Turbo charged | Natural aspirated |
| No. of cylinders - Bore × Stroke (mm) | 6-108×125 | 6-108×125 | 6-108×125 | 6-108×125 |
| Displacement (L) | 6.871 | 6.871 | 6.871 | 6.871 |
| Compression ratio | 17.5:1 | 17.5:1 | 17.5:1 | 17.5:1 |
| Continuous power /speed (kW (Ps)/r/min) | 120 (165)/2300 | 120 (165)/1800 | 110 (150)/1800 | 120 (165)/1500 | 112 (155)/1500 | 90 (123)/1500 | 103 (140)/2300 | 80 (109)/1500 | 82 (112)/2000 | 74 (100)/1800 | 63 (86)/1500 |
| One-hour power/speed (kW (Ps)/r/min) | 132 (180)/2374 | 132 (180)/1858 | 121 (165)/1858 | 132 (180)/1500 | 123.2 (170)/1500 | 99 (135)/1548 | 113.3 (155)/2374 | 88 (120)/1548 | 90.2 (125)/2065 | 81.4 (110)/1858 | 69.3 (95)/1548 |
| Min. specific fuel consumption (g/kW·h) | ≤198 | ≤198 | ≤198 | ≤200 |
| Specific oil consumption (g/kW·h) | ≤0.8 | ≤0.8 | ≤0.8 | ≤0.8 |
| Crankshaft rotation direction (seen from power output end) | Anticlockwise | Anticlockwise | Anticlockwise | Anticlockwise |
| Starting way | Electrical | Electrical | Electrical | Electrical |
| Net weight (kg) | 750 | 750 | 720 | 700 |
| Overall dimensions (LxWxH) (mm) | 1420×810×1020 | 1420×810×1020 | 1293×780×1198 | 1252×780×1075 |
| Certificate | ZC,CCS | ZC,CCS | ZC,CCS | ZC,CCS |
| Model | YC4108CA | YC4108C | YC4D55C | YC4D80-C20 |
|---|
| Type | Vertical, in-line, water-cooled, four stroke |
| Intake way | Natural aspirated |
| No. of cylinders - Bore × Stroke (mm) | 4-108×115 |
| Displacement (L) | 4.214 |
| Compression ratio | 17:01 |
| Continuous power /speed (kW (Ps)/r/min) | 32 (45)/1500 | 40 (55)/1500 | 40 (55)/1800 | 58 (80)/2400 |
| One-hour power/speed (kW (Ps)/r/min) | 35.2 (50)/1548 | 44 (60)/1548 | 44 (60)/1858 | 63.8 (85)/2478 |
| Min. specific fuel consumption | ≤200 |
| (g/kW·h) |
| Specific oil consumption | ≤0.8 |
| (g/kW·h) |
| Crankshaft rotation direction (seen from power output end) | Anticlockwise |
| Starting way | Electrical |
| Net weight (kg) | 370 |
| Overall dimensions (LxWxH) | 986×730×948 |
| (mm) |
| Certificate | ZC,CCS |
| Model | YC4108ZC | YC4D75C | YC4D100Z-C20 | YC4D120Z-C20 |
|---|
| Type | Vertical, in-line, water-cooled, four stroke |
| Intake way | Turbo charged |
| No. of cylinders - Bore × Stroke (mm) | 4-108×115 |
| Displacement (L) | 4.214 |
| Compression ratio | 17:01 |
| Continuous power /speed (kW (Ps)/r/min) | 50 (70)/1500 | 55 (75)/1800 | 75 (100)/2400 | 90 (120)/3000 |
| One-hour power/speed (kW (Ps)/r/min) | 55 (75)/1548 | 60.5 (80)/1858 | 82.5 (110)/2478 | 99 (135)/3096 |
| Min. specific fuel consumption (g/kW·h) | ≤198 |
| Specific oil consumption (g/kW·h) | ≤0.8 |
| Crankshaft rotation direction (seen from power output end) | Anticlockwise |
| Starting way | Electrical |
| Net weight (kg) | 390 |
| Overall dimensions (LxWxH) (mm) | 986×730×1254 |
| Certificate | ZC,CCS |
| Model | YC4FA50Z-C20 | YC4F115C-31 | YC4F100-C20 | YC4F90L-C20 |
|---|
| Type | Vertical, in-line, water-cooled, four stroke |
| Intake way | Turbo charging | Turbo charging& inter-cooled |
| No. of cylinders - Bore × Stroke (mm) | 4-96×103 | 4-92×100 |
| Displacement (L) | 2.982 | 2.66 |
| Compression ratio | 16.3:1 |
| Continuous power /speed (kW (Ps)/r/min) | 38 (50)/1500 | 85 (115)/3100 | 73 (100)/2950 | 63 (90)/2800 |
| One-hour power/speed (kW (Ps)/r/min) | 41.8 (55)/1500 | 93.5 (130)/3200 | 80 (110)/3045 | 70 (95)/2890 |
| Min. specific fuel consumption (g/kW·h) | ≤195 |
| Specific oil consumption (g/kW·h) | ≤0.8 |
| Crankshaft rotation direction (seen from power output end) | Anticlockwise |
| Starting way | Electrical | Electrical |
| Net weight (kg) | 380 | 420 |
| Overall dimensions (LxWxH) (mm) | 828×663×724 | 866×623×738 |
| Certificate | ZC,CCS |
If you need model infomation and best quotation for yuchai marine engine, please feel free to contact us.
