Home Generator Products Yuchai Engine150kw/187.5kVA Open Diesel Generator

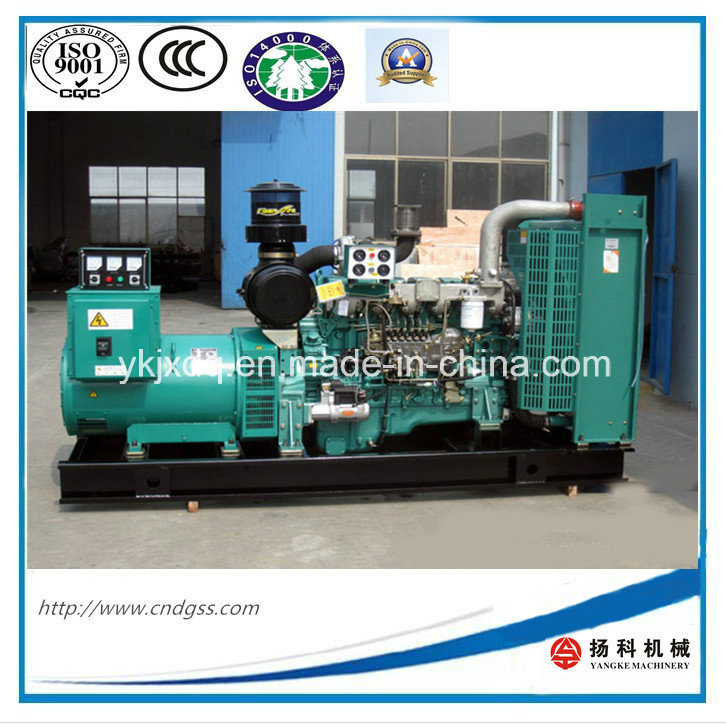

Yuchai Engine150kw/187.5kVA Open Diesel Generator

Yuchai Engine150kw/187.5kVA Open Diesel Generator
Price: US $ 10000-20000/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal
1.International Warranty Service
2. Short delivery time, as we always have Yuchai engine in stock
3. With ISO9001& CE certification
4. Spare parts are easy to get from worldwide market with much cheaper price
5. Coupled with Stamford alternator or Chinese alternator
5. Perfect after-service network
7. Both 50Hz and 60Hz

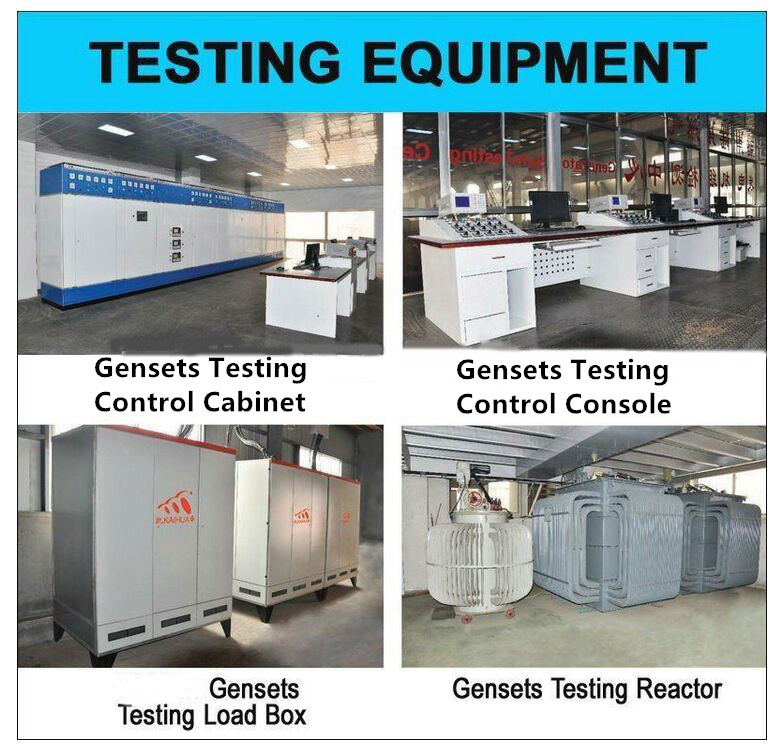

8. Rigorous test including 50% load, 75% load, 100% load and 110% load

Genset Main Technical Data
3P,50Hz@1500RPM,400/230V (380/220V and 415/240V are for optional)
Genset ModelGenset Specification Engine SpecificationAlternator Model
Marathon/Yangke
Rated PowerStandby  PowerCons100%(g/kw.h)Engine ModelGovernor Type
KWKVAKWKVA
QSY-12GF30140175150187.5<=210 YC6A230L-D20Electric MP-140-4/QSW-140-4


Engine ModelYC6A230L-D20
Number of Cylinders 6
Cylinder Arrangement Vertical in-line
 Cycle6stroke
 AspirationTurbo-charged
 BorexStroke(mmxmm) 108x132
 Displacement(Liter)7.252
 Prime Power/Speed(kW/rpm) 132/1500
 Standby Power/Speed(kW/rpm)145/1500
Speed GovernorElectric
 Cooling SystemWater-cooled
 Speed Stability(%) ≤5%
 Fuel Consumptionat1500RPM
 110%150KW/187.5kva231g/kw.h
100%140KW/175kva210g/kw.h
75%105KW/131kva158g/kw.h
50%70KW/87kva110g/kw.h
25%35KW/43.7kva55g/kw.h
Starter Motor24V



Packaging & Delivery
Packaging Detail:generator standard exporting package
Delivery Detail:within 5-25working days after the deposit


Company Information

Yangke Machinery Electric is a high-tech generator manufacturer which contains R&D, production and marketing together.

Our company not only establishes humanized modern enterprise with perfect quality management system and certification authority, but also equipped with international advanced facilities of R&D, manufacture and test. The concept of our company is to develop the best product, to provide the best service. We will spare no effect to serve our customer with products of high quality and after-sales service in a variety of ways.


With the help of the technical strength, our company has formed a structure of product series. The current main products are: QS series 8-3000KVA brushless alternators, which can be coupled with both domestic and foreign brands of diesel engines.

We only offer products using major engine brands such as Cummins, Perkins, Doosan, MTU Diesel/Mitsubishi etc. At YANGKE, we also customize the standard models to meet your unique requirements. Our Generators are also top of the line and come with base mounted fuel tanks, battery, battery rack and cables, vibration isolators between engine/diesel generator and base frame, a circuit breaker to protect the generator from overload and a two-wire auto start ready controls for automatic transfer switch operation. (Note: Automatic Transfer Switch Required for True Auto Operation).
Our products are sold to Southeast Asia, central Asia, the Middle East, Africa and South America.


 Sales promises:
YANGKE power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested.
Warranty is according to our standard conditions :
a. 15months,counted on the day YANGKE sold to the first buyer;
b. one year after installation;
c.1000running hours(accumulated),subject to the earlier one.
Service and parts are available from YANGKE POWER or distributors in your location.

FAQ:
(1)  Your company is factory or Trade Company?
       Answer: We are professional low oil consumption diesel generator sets manufacturing factory.
(2)  Your diesel generator power range?
      Answer: Now we mainly produce QS series 8-3000kva brushless alternators,
(3)  Which brand Electrical Generator you produce?
      Answer: Now we produce USA Cummins brand Electrical Generator, Sweden Volvo Generator, Korea Doosan diesel  generator, German Deutz Electrical Generator, and China local brands' generator.
(4) Where is your main market?
     Answer: We mainly export Electrical Generators to southeast Asia, central Asia, the Middle East, Africa and South America


Contact
Yangzhou YANGKE Machinery Electric Co.,Ltd
Contact person:Tina
Mobile:+8618952721120
Fax:0514-86822288
Tel:0514-82275368
Web:www.cndgss.com








Prod Model: QSY-150GF
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency: 50Hz
Power: 150kw/187.5kVA
Rated Rpm: 1500
Cylinder No.: 6
Bore/Stroke: 108*132mm
Displacement: 7.252L
Lubricating Capacity: 22L
Fuel Consumption: 210L

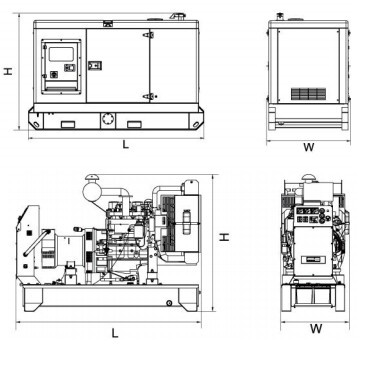

Size(L*W*H Mm): 2300*1200*1500mm
Weight(Kg): 1600
Type: Basic Diesel Generator
Installation Method: Portable
Stroke: Six Stroke
Cooling Method: Water Cooling
Output Type: AC Single Phase
Yangke Machinery Electric is a high-tech generator manufacturer which contains R&D, production and marketing together.

Our company not only establishes humanized modern enterprise with perfect quality management system and certification authority, but also equipped with international advanced facilities of R&D, manufacture and test. The concept of our company is to develop the best product, to provide the best service. We will spare no effect to serve our customer with products of high quality and after-sales service in a variety of ways.

With the help of the technical strength, our company has formed a structure of product series. The current main products are: QS series 8-3000kVA brushless alternators, which can be coupled with both domestic and foreign brands of diesel engines.

We only offer products using major engine brands such as Cummins, Perkins, Doosan, MTU Diesel/Mitsubishi etc. At YANGKE, we also customize the standard models to meet your unique requirements. Our Generators are also top of the line and come with base mounted fuel tanks, battery, battery rack and cables, vibration isolators between engine/diesel generator and base frame, a circuit breaker to protect the generator from overload and a two-wire auto start ready controls for automatic transfer switch operation. (Note: Automatic Transfer Switch Required for True Auto Operation).

Our company has been an accredited manufacturer who obtained the authentication of National Inspection and Supervision Center of Gas engine and Generating Sets since 2000, and passed the CE Certificate, the quality system certification of ISO9001-2008 Environment and ISO14001-2004.

We can provide a variety of specifications automated, automatic cut over, soundproof and mobile on high quality. The low energy consumption power set satisfies the customer's all electric power demand. We also can satisfy the user with different voltage and different frequency request, as well as networking power supply system.

Our products are sold to Southeast Asia, central Asia, the Middle East, Africa and South America.
