Our factory can produce portable diesel generator set. This kind of products can be used at home, office, fieldwork and many other work. We can supply this kind of products with power including 2KW, 3KW and 5KW. We have open type, semi-open type, silent type. Single phase or three phase. All products have CE(CONFORMITE EUROPEENNE) certifications. Each has steady quality and competitive price.

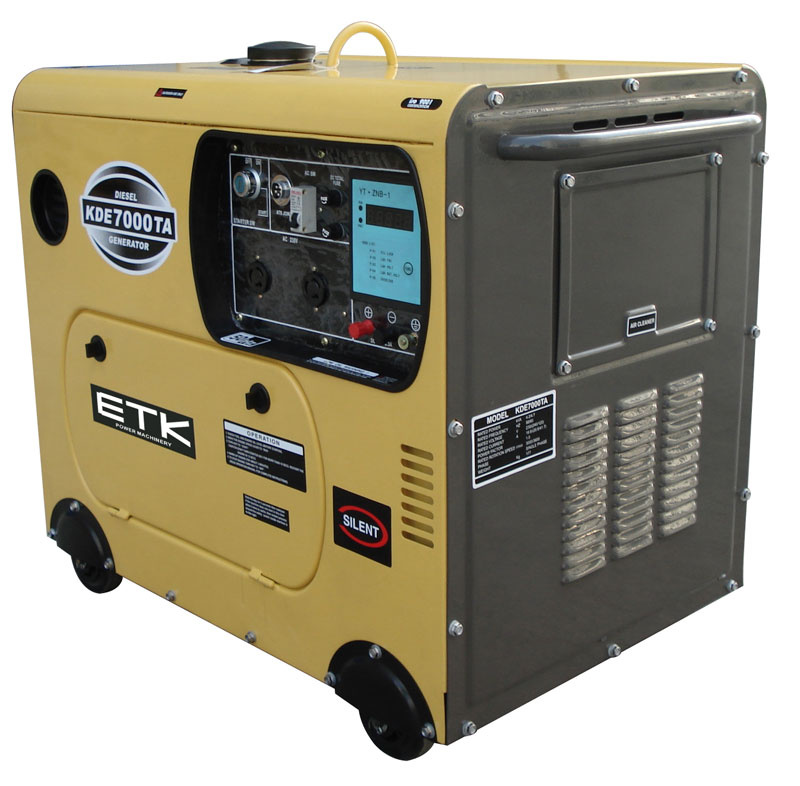

Diesel Genset with CE and EPA (KDE7000TA)
*Super Durability, Low Vibration, Quiet Running
*Electric and / or Recoil Start
*Low oil pressure alert system shuts down the engine automatically
*Silent Type
STANDARD FEATURES
Voltmeter yes
AC Output Socket 2
AC circuit breaker yes
Oil alert yes
Timemeter: Yes
OPTIONAL FEATURES
Big Wheel optional
ATS optional
Remote control optional
Fan: Optional
Battery: Optional
Heater: Optional
|
Model |
KDE7000TA |
|
Frequency [HZ] |
50/60 |
|
Rated voltage [V] |
110/220/ 230/115 |
|
Rated output power [KVA] |
4.5/50Hz, 4.8/60hz |
|
Max output power [KVA] |
5/50hz, 5.5/60hz |
|
Rated rotation speed [rpm] |
3000/3600 |
|
DC output |
12v/8.3A |
|
Phase number |
Single |
|
Noise level [dB(A)@7m] |
72 |
|
Overall dimension(LxWxH)[MM] |
950x565x770 |
|
Dry weight[kg] |
167 |
|
Structure type |
Silent |
|
Excitation model |
Self-excitation with brush, 2 poles |
|
Engine Model |
ETK186FAE |
|
Engine Type |
Single-cylinder, Vertical, 4-Stroke,
Direct injection, Air-cooled diesel engine |
|
Bore x Stroke [MM] |
86x72 |
|
Displacement[ml(cu. In)] |
418(25.51) |
|
Rated power[KW(hp)/rpm] |
6.0(8.0)/3000 6.7(9.0)/3600 |
|
Starting system |
Electric start |
|
Rotation direction(view from flywheel) |
Clockwise |
|
Fuel Tank Capacity [L] |
15 |
|
Lube-oil Capacity [L] |
1.65 |
Changzhou ETK Power Machinery Co., Ltd. Specializes in producing all kinds of diesel and gasoline generators, air compressor, water pump. Power trowel, plate compactor, floor saw, concrete mixer, concrete vibrator etc. Our products can be used in many areas, such as industry, agriculture and fishery. Our company has strong technological power, strict discipline of basic management, advanced technology and superior check methods. We have carried out the quality system certification ISO9001 during the whole process and have CE and EPA.
With seasoned and experienced professionals coupled with state-of-the-art technology and industry best practices, it is our vision to make our products that truly recognizes the needs of its clients, understands the clients and renders the best services in customer interaction. Our products are well sold in Philipine, India, Thailand, UAE, France, UK, Spain, Australia and so on. Our goal is to make our products in everywhere of the world.
Welcome to contact us
