Working principleCutting is achieved by powerful laser focused on object to cause instant melting and evaporation, with xenon lamp as the generator. Automatic cutting is controlled by digitalized mechanic system. This machine has condensed the technologies of laser, digitall, and precise mechanics.
AdvantagesSmooth and fine edge or surface and small distortion.
Higher cutting speed and low cost, operation safe and stable function.
Imported servo motor and gearing system to guarantee precise cutting.
Dedicated software enable graphic or text to be instantly designed or processed.
Flexible and easy operation.
Application FieldApplicaple to cutting on plate or tube in metal or non-metal materials.
Idea for cutting on S/S, carbon steel, alloy steel, copper plate, aluminum, rare metal, porcelain chip, silicon chip, diamond.
Widely used in sheet metal processing, metalware, kitchen appliance, high-resolute device, electric contorl box, auto parts, glasses, posters, crafts, lighting, and precise parts.

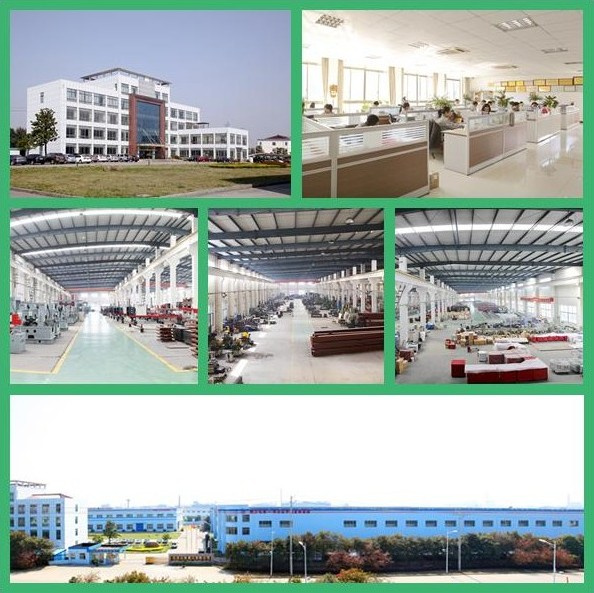

Workshops
Certificates
Our exhibitions

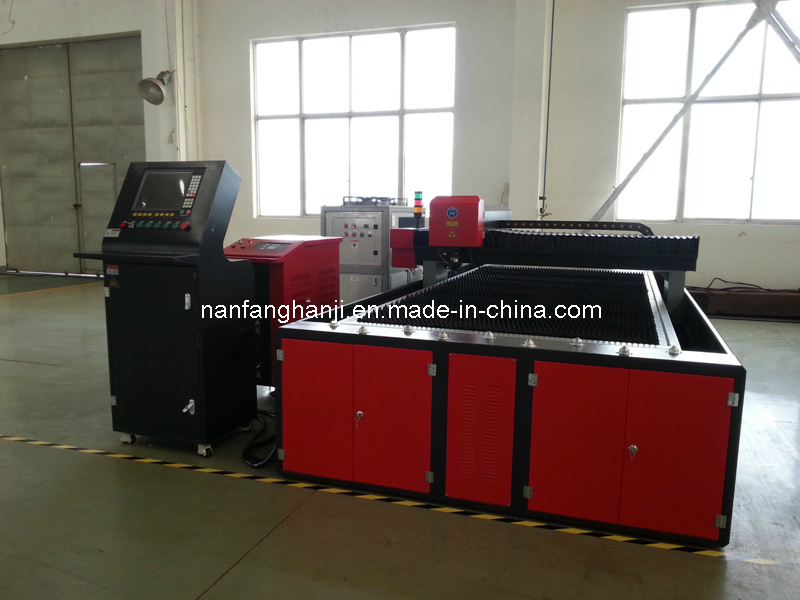

| Model | YAG-3015 |
| Laser working media | YAG |
| Wave length | 1064NM |
| Max laser power | 500W/600W |
| Max cutting speed | 6m/min |
| Min line width | 0.15mm |
| Repeat positioning accuracy | ±0.02mm/1000mm |
| Working area | 3000×1500mm |
| Cutting thickness | M.S.≤6mm, S.S. ≤3mm |
| Control system | PC or PLC |
| Collimation positioning | Red light indication |
| Total power consumed | ≤20KW |
| Power supply | 3 phases, 380V, 50HZ/60HZ |
| Floor space | 5000×4200mm |
Jiangsu Dade Heavy Industry Co., Ltd., Is located in the Xishan industrial district, Wuxi, Jiangsu Province. Through two decades of efforts and with the encouragement of economic boom in China, it has become a large-scale, comprehensive, domestic group enterprise with a capability of producing welding, incision and jointing whole set machines of various specifications. It has become a famous brand in China.
It enjoys first-class software and hardware, an innovative system composed of specilized talents in various areas. Its product development ability leads the other companies in its industry. It has created a perfect marketing system with its excellent service. We sincerely will to cooperate with the companies in the same industry both at home and abroad for a better development.
