Generator Manufacturers and Factories

Home Generator Products Wood Burning Small Power Biomass Generator Price

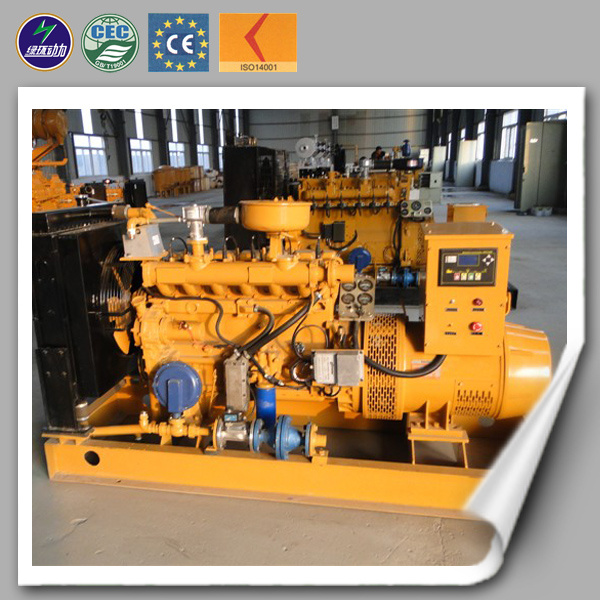

Wood Burning Small Power Biomass Generator Price

Wood Burning Small Power Biomass Generator Price
Price: US $ 8390/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
wood burning Small Power Biomass Generator Price
Worksite requirements for biomass generator

The worksite needs to meet following basic requirements:
a)  Ambient temperature between -40ºC~45ºC;
b)  Relative humidity less than 90%(35ºC);
c)  Site elevation not higher than 2000m;
d)  For outdoor installation, simple rain shelter is required.
The engine is high,/low temperature cycle requires the use of softened water.Cooling water should be used in slightly alkaline cleaning water, not compounds containing corrosive, such as chlorides, sulphates or acid etc..Its main index requirements are as follows:
hardness:0.7~5.3me/L ;chloride ion content:<150mg/L;PH7~8.5

Fuel gas requirement for biomass generator

The genset will be able to output at its full power with fuel gas with the specification as below:
1m distance away from genset's pressure regulating valve of inlet
Temperature of natural gas ≤40ºC;
Pressure of natural gas 3~10kPa, velocity of pressure≤ 1kPa/min;
H2S≤200mg/Nm3;
 NH320mg/Nm3
 Tar Content 20%mg/Nm3
 Impurities particle size≤5μm; impurity content≤30mg/Nm3;
Moisture Content of biomass ≤40g/Nm3;Heat value more than 4.2MJ/Nm3
If fuel gas contains higher quantity of sulfur and ammonia,it not only corrodes the pole of spark plug seriously,but also increases the acid value,which corrodes internal parts of genset and corrodes the genset with precipitates.

Why you chioce Shandong Lvhuan Power equipment Co.,Ltd.biomass generator?
1. we are professional manufacturer for gas/diesel generator set, over 15 years produced experience;
2. products range of gas engines/genset, including diesel engines, biomass generator sets, natural gas generator sets, biogas generator sets, coal mine gas generator set, etc. Products arrange from 5kw-3000kw ;
3. Our workshop covering more than 40000 square meters, techincal engineer and after-service more than 100 people.Also products achieved CE,ISO9001:2008,ISO2001:1400 etc. certificats.And passed many patents.
4. Our products are well received by our customers in Spain, Italy, Canada, Venezuela, Austraila, Thailand, Malaysia,Philippine,Indonesia,and with some Africa countries etc.
5. we have many cooperation companies :like dehydration equipment,desulfurization equipment,gasified equipment,recovery system exhaust heat,CCHP system etc.So can offer you complete project proposal if you like.

Biomass generator Service :
1.pre-sale service:
We will send our engineer to prospect the site of power station free to charge.According to the situation of site we can supply you many drawings which can meet the requirement of design and construction,like power station floor plan,engineering flow sheet of circle cooling system,genset installation,genset foundation,electrical connection and some other techincal support etc.
2.Sale service:
we will send our engineer to the site to guide you the installation of generator set, subsystem and relative equipment.We will debug the generator set till it can generate power successfully.We will also supply a technical training to the operators.You also can send your staff to our company.We can train you till you can operate the generator set and during this time we can offer you board and lodging free of Charge.
3.After-sale service:
(1)in our company, different people is in charge of different area,we will response periodically and support you technical service free of charge,include equipment debugging,fault eliminating,technical advice,maintenance assistant,etc.
(2)For the quality problem, we will service for you free of charge during the guarantee period.
(3)One year guarantee period and lifetime service.
(4)Insisting on principle of "solving problems first,trying to recover the generator set as soon as possible and then analysis the reason",we solve quality problem in time when genset doesn't work,We insure to help our clients to gain the biggest economic profit.

Model Number (Engine Type)LHBMG20
Brand NameLVHUAN
Prime power/Standby power16KW/30KW
Rated Speed1500/1800RPM
Rated Frequency50/60Hz
Rated Voltage400V/230V
PhaseAC 3-Phase, 4 wire
Voltage Stability≤±2%
Voltage transient≤±10%
Voltage Stable time≤1
Heat consumption≤9.8mj/kw.h
Lubricant consumption≤1.63g/kw.h
Engine Capacity4.33 L
Cylinder Number4
Cylinder Bore105mm
Stroke125mm
Starting SystemDC 24V electic motor
Cooling methodwater cooler
Lubricant methodPassive and flying lubricant
Isolation classH
ProtectionIP23
AlternatorENGGA
Power Factor0.8 lagging
Exciting methodbrushless
Colouryour choice
CertificatesISO 9001:2008, CE
Warranty1 year or 1500 running hours
TypeOpen
Control systemAutomatic alarm system
Size2100x900x1200mm
Weight950kg

Prod Model: LHBMG20
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage: 380V/220V
Frequency: 50Hz/60Hz
Color: Customer
Heat Consumption: 9.8mj/Kw.H
Certificates: CE, ISO9001, ISO14001
Warranty: 1 Year or 1000 Hours
Gas Source: Biomass Gas
Power: >200kw
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.

Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.

We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.

Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
