IR Remote Control
Apply for Air Purifier,Cooler

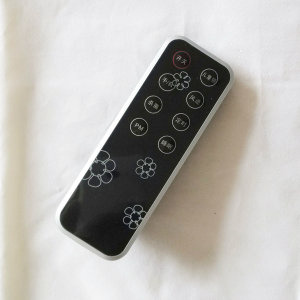

Air Purifier remote control
LPI-M08
| Number of keys |
| 1~8 keys |
| Dimensions |
| 126x45x26mm |
| Case |
| ABS Plastic,Polish finish |
| Buttons Type |
| PET Membrane |
| Textplate |
| YES |
| Weight (excl. batteries) |
| 46g |
| Battery |
| DC3.0V/AAA*2 (not include) |
Button letter: Customized
NEC IC/Data code: Customized
Logo: Customized
Plastic color: Customized
1,Operation Force
Each key's operation force is in the range of: 180±40g.f and total deviation in 50g.f. Base on Center.
2,Key Stroke
Vertical press Key with force of 180g, the key stroke within the range of: 0.8±0.2mm Base on Center.
3,Straight Distance: Straight Distance above 8.0M
4,Receiver Direction:Up Down Left Right Direction 15? at min.3M Distance.
5,Room Temp:25ºC
6,Room Humi:65~80% RH
8,Power Voltage: DC 3.0V
9,Test Environment illumination: 350Lux
10,Leakage Currency: Under 3uA No key pressed
11,Working Voltage DC2.2V~DC3.4V
12,Contact Resistance :under 3K Ohms
