Working Principle

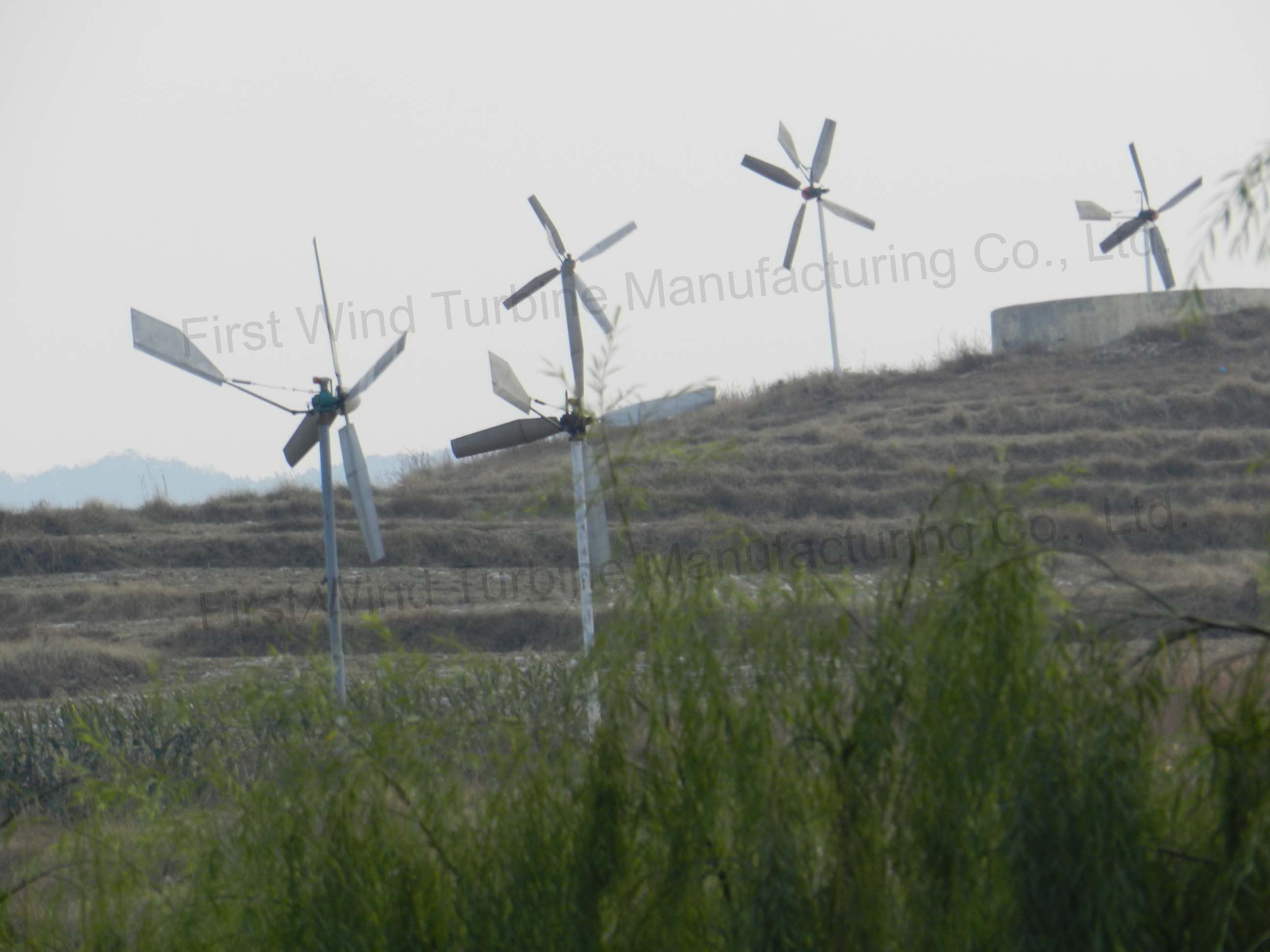

The windmill pumping equipment is mainly composed of wind compressor, blades, water pump, and tower. The working principle is: Use the wind energy to rotate the blades and drive the wind compressor to produce compressed air, the air tube transmits the driving power by delivering the compressed air to the water elevator in the water far away for pumping operation.
|
Model |
FW4.4 |
FW7.6 |
FW8.8 |
|
Power (KW) |
2.9 |
8.7 |
11.7 |
|
Rotor diameter(m) |
4.4 |
7.6 |
8.8 |
|
Number of blades(PCS) |
4 |
4 |
4 |
|
Gear Speed Increasing Ratio |
1: 4 |
1: 9.7 |
1: 9.7 |
|
Rated Wind Speed (m/s) |
10 |
10 |
10 |
|
Startup Wind Speed(m/s) |
2.6~3.0 |
2.8~3.2 |
2.8~3.2 |
|
Working Wind Speed(m/s) |
3.4~10.8 |
3.4~10.8 |
3.4~10.8 |
|
Tower Height |
5 |
7.5 |
8.5 |
Average Pumping Capacity Within
Effective Wind Speed for Example
with 20m Pump Lift(m3/h) |
2 |
6 |
8 |
|
Pumping Form |
Long-distance Water Supply |
Long-distance Water Supply |
Long-distance Water Supply |
