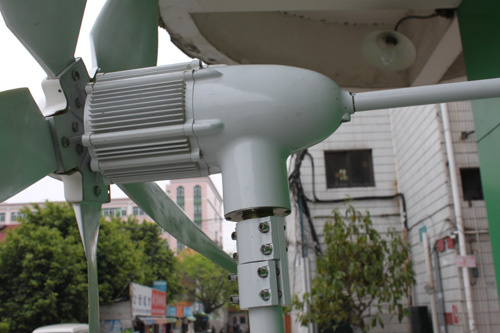

Model Z-400W
Name City Swallow
Rated power 400W
Rated DC voltage DC 12V/24V
Rated current 33A/17A
Rated speed 740r/m
Max power 460W
Number of blade 3 PCS
Starting wind speed 3m/s
Cut-in wind speed 3.5m/s
Cut-out wind speed 15m/s
Security wind speed 45m/s
Rated wind speed 12m/s
Engine Three-phase permanent magnel generator
Rotor diameter 1450mm
Blade material Carbon fiber reinforced plastics
Output line anti-winding device Over all three-phase commutator
Over-speed wind protection Tip stall protection + turned protection + Electromagnetic brake
Life span 15 years
Equipment surface protection Aluminum oxide + plastic coating
Working temperature -40° C-70° C
N. W. 17.5kg
Packing material Carton box and foam material
Packing dimension 1110*580*240mm
G. W. 20kg
Shenzhen Green Elec Technology Co., Ltd. is a high-tech enterprise which makes commitment to wind power research, development, production and marketing. Our company has advanced equipment of wind power and open wind tunnel with diameter of 2.9m. A number of outstanding domestic and international wind power experts make efforts for our company's extraordinary contributions to product development. Our research results about the usage of weak winds, which expand the application scope of wind power generators, have been successfully applied to wind power field. Shenzhen Green Elec Technology Co., Ltd. has several domestic and foreign patents. Our products have had EU RoHS & CE certifications and stepped into global market with high appraisement.
Our company has 50, 000 sets of Wind-Solar Hybrid wind turbines production ability and we can supply vertical and horizontal types of products. Our company has many distribution agencies. What's more, a large number of agents around the world join our sales.
Our company is working on a variety of renewable energy research including sea tide power generating, sea wave power generating, getting water with wind power and power generating at high altitude. We hope to make a brilliant future with friends who are interested in the cause of renewable energy. We will uphold our philosophy: Creation, Struggle and Return! Our company is eager to work on the struggle for mankind's survival and development.
