ZW-400 (400w wind turbine generator), ZW-600(600w wind turbine generator)
ZW serie is the former type of YW serie in the 400w and 600w model

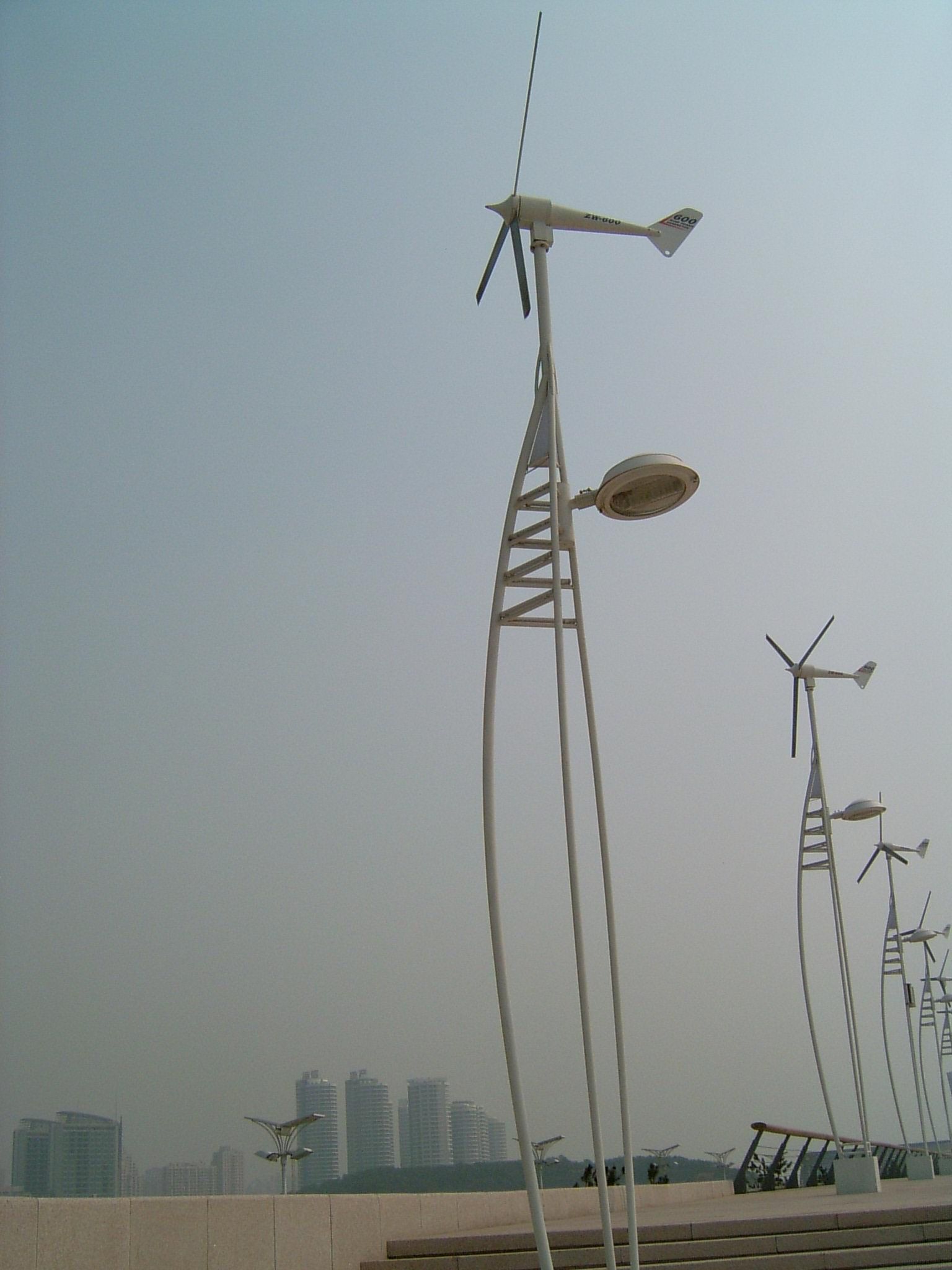

YW serie wind turbine generator is with a good apearance. This kind of wind turbine generators are widely used for government project, such as street lights. The turbines are usually used together with solar panel to build the wind-solar hybrid system. The series wind turbine generators were used in the 2008 Olympic games and also will be used in the coming 2010 world cup.
If you are looking for this kind of wind turbine, you can come to me and I will send you further information in details.
Technical Data |
Model No. |
ZW-400/600 |
Rated Wind Speed |
10.8 m /s |
Turbine Type |
Horizontal axis |
Braking Wind Speed |
13 m /s |
Generator Type |
Rare Earth Permanent Magnet |
Max. Safe Wind Speed |
35 m /s |
Blades Number |
3 |
Rotor Speed |
up to 420 rpm |
Material of Blades |
Aluminum Alloy |
Insulating Level |
B |
Work Type |
SI |
Protection Level |
IP64 |
Rotor Diameter |
2.0m/2.4m/2.7m |
Noise |
≤ 55dB |
Rotor Power coefficient |
0.30 |
Ambient Temperature |
-20 ~55 |
Rotor Swept Area |
3.14m 2/ 4.52m 2 |
Braking System |
Mechanical & Electronic |
Radial Runout |
≤ 0.04 |
Life Expectancy |
10 Years |
Rated Power |
400W/600w |
|
|
Rated Voltage |
DC 24V |
Packaging |
Carton with styrofoam |
Star-up Wind Speed |
2.5 m /s |
|
|
Cut-in Wind Speed |
3 m /s |
|
|
Based from the former Dongguan C&G Wind Power Co., Ltd., Nantong Ruifeng Energy Technology Co., Ltd. specializes in the field of renewable and clean energy and products.
with the professional group, we have established our repulation of the products.
The MW serie wind turbine is popular in the field with strict requirement of wind turbine dimension, they are light and easy to install.
The YW serie wind turbine is famous for the design, apearance and performance. They were selected and used in the 2008 Olympic games. Also, you can see the products in lots of famous projects in China and abroad.
The FD serie wind turbine is widely used in home and military base.
At the beginning of 2009 we inlarged our products with solar panel and LED, two of the most important parts of the renewable and energy saving field.
