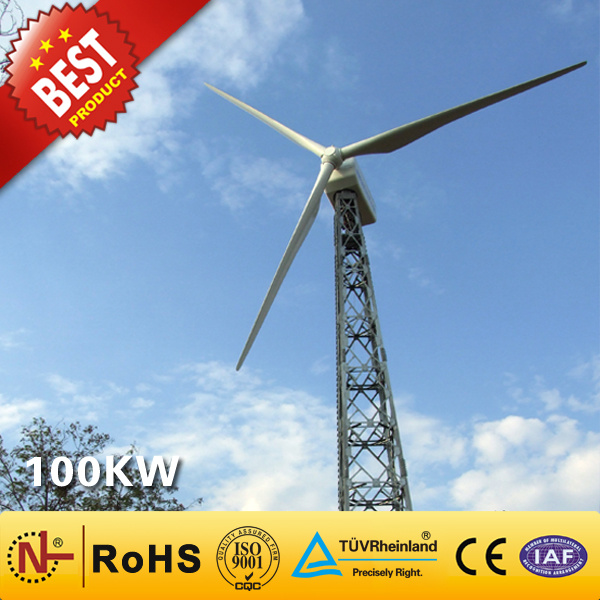

Wind Turbine / Wind Power Generator (100kW)
1.Safety System: UPS back-up source:
(1). working when power-cut,
(2). Control System power supply, Lighting protection, surge protection, power grid detection;
salt mist protection, suit for coast and islands.
2. Pitching system
Electronic pitching system, independent controller, double detection; tricyclic control: torque, speed, location
3. Software system
32 CPU, embedded operating system: industrial Ethernet and can modularization design; The man-machine interface:
10inches of liquid crystal touch screen, the operation is convenient and simple; Fault diagnosis; Historical records, data statistics.
4. Technology of grid-connection
Flicker change: we apply the variable pitch adjustment, so avoid appearing sudden load change.
For more information, Please contact the sales engineer.
We will reply immediately.
|
Model |
NL-100KXL |
|
Rated power |
100kW |
|
Output voltage |
500V |
|
Started wind speed |
3.0m/s |
|
Rated wind speed |
12 m/s |
|
Cut-out wind speed |
20 m/s |
|
Safety wind speed |
60m/s |
|
Rotor diameter |
21.7m |
|
Blade number |
3 |
|
Blade length |
10.35m |
|
Blade weight |
360Kg |
|
Blade material |
GFRP strengthening |
|
Tower height |
30m |
|
Generator |
Asynchronous |
|
Main braking system |
Blade pitch contrd |
|
Second braking system |
High speed shaft brake disc |
|
Protection grade |
IP55 |
|
Noise level |
≤55dB |
|
Insulation class |
F |
|
Operation mode |
Automatic or manual |
|
Braking mode |
Fan brake, Generator braking, Yaw damper brake |
|
Surface antisepsis |
multi-layers paint |
|
Control System |
PLC with remote monitoring |
|
Temperature |
-20 ~ 50 degree centigrade |
|
Design service life |
≥15 years |
|
Lubrication |
Splash pressure lubrication |
