Wind Turbine Power Hybrid System for Home Use 1kw 2kw 3kw 5kw
| Price: |
US $ 1749/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |
Wind turbine power hybrid system for home use 1kw 2kw 3kw 5kw

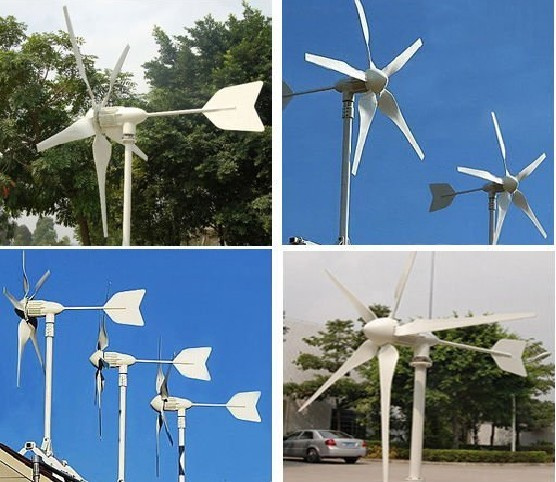

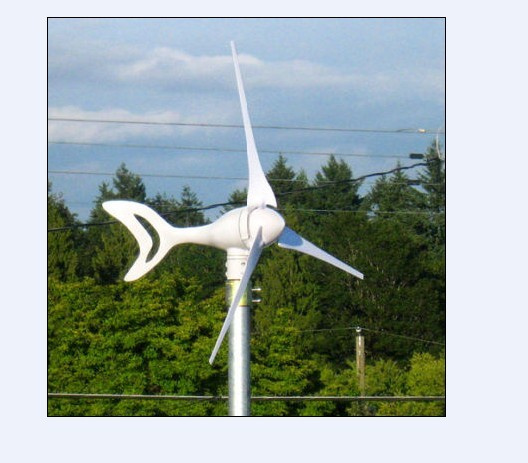

1000W wind turbine
1)Use magnetic saturation technology, with 20years designed life;
2)Easy to install, it has small volume
3)Anti-twist device, generator can whirl in each direction
4)Anti strong wind, the blade protect itself automatically,
5)Supply matched controller/inverter, make the system more stable.
6)During the warranty, we send free PCB part to maintenance the inverter
7)5 PCS blades design
| Model | FD-1000 |
| Rated power | 1000W |
| Generator detail |
| Starting wind speed | 3m/s |
| Cut-in wind speed | 3.5m/s |
| Rated wind speed | 12.5m/s |
| Security wind speed | 40m/s |
| Rated DC voltage | 24/48V |
| Rated speed | 650 r/m |
| Rotor diameter | 2200mm |
| Rated output AC voltage | 220V/50Hz(110v/60Hz) |
| Protection | Electromagnetic torque control and electricity brake |
| Type | 3phase permanent magnetism synchronization generator |
| Material |
| Blade material | Extra-strong and tenacious engineering plastics |
| Packing material | Carton box and foam material |
| Package |
| Packing dimension | 830*530*460mm |
| N. W& G. W(kg) | 27/30kg |
| TANFON Off grid wind power supply systems-FD1000 |
System
Basic Information | Wind generator power:1KW, Annual average energy: 2500kWh
Supply power for water pump, TV, washer, fan |
|
Wind generator
| | Model | FD-1000 | | Rated power | 1000W | | Starting wind speed | 3m/s | | Cut-in wind speed | 3.5m/s | | Rated wind speed | 12.5m/s | | Security wind speed | 40m/s | | Rated DC voltage | 24V/ 48V | | Rated speed | 650 r/m | | Rotor diameter | 2200mm | | Rated AC output voltage | 220V/ 50HZ | | Protection | Electromagnetic torque control
and electricity brake | | Type | 3phase permanent magnetism
synchronization generator | | Blade material | Extra-strong fiber glass | | Packing material | Plywood box and foam material | | Packing Size | 830*530*460mm | | N.W&G.W(kg) | 27/30kg |
| QTY
1pc
|
| Wind controller | Ws1kw/24v wind charger controller
Rated Battery Voltage: 24V
Wind Turbine Maximum Input: 40A
Unload Voltage(factory default): 28V
Unload Current(factory default): 50A | QTY
1pc
|
| Gel Battery | Capacity:12V/200AH full sealed
Solar power Gel battery,
Service life:6-8 years ,
Size: 522*239*218mm | QTY
2pcs
|
| Off-Grid inverter | TF1KW/24V pure sine wave inverter
110/120/220/230V output; With grid charger build-in
Protection against overload, short circuit, anti-reverse, discharger, etc. | QTY
1pc
|
| Guy cable tower | 6m tower;
It help fasten wind generator in safe altitude.
Use steel material with rust prevention.
Easy to install | QTY
1set |
| Cable | 4mm2 cable 100M
International standard, with specification suitable for wind system, Include terminals and the cable connect the battery | QTY
100m
|
| Prod Model: |
FD-1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Fd-1000 |
| Wind Turbineoutput Voltage: |
48V or 24V |
| System: |
on Grid System and off Grid System |
| Warranty: |
Geneartor for 3 Years Other Parts for 1 Year |
| On Grid System: |
Wind Turbine+Controller+Grid Connected Inverter |
| Off Grid System: |
Wind Turbine+Controller+Battery+off Grid Inverter |
| Delivery Time: |
Sample for 7 Days |
| Certificate: |
CE |
| Payment: |
T/T in Advance |
| Number Of Blade: |
Three Blade |
| Rotating Shaft: |
Horizontal |
| Stress Way Of Blade: |
Resistance |
Foshan Tanfon Energy Technology Co., Ltd. is specialized in R&D, manufacturing and selling solar wind product and all kinds of pure sine wave inverter. As one of the leading factories in the green energy source field, Tanfon was initially established in the year of 1996. We are a professional manufacturer of green energy products including: Solar power system, wind power system, solar street light system, all kinds pure sine wave inverter(solar inverter, wind inverter, home UPS inverter ), controller, battery products., with advantage of possessing a professional R&D team to develop new wind energy turbine and inverter in concept of "Green Energy Leads Low Carbon Life".
Product sales to
(Pakistan, Nigeria, Canada, , Costa-Rica, Cyprus, Mocambique, Turkey, Malavi, Thiland, Philippines, Belgium, Indonesia, Czech Republic, Madagascar, Italy, Australia, Egypt, Tajikistan, Sri Lanka, Malaysia, France, USA, Guaemala, Switzerland, Israel ect)
We accept OEM and small trial orders, contacting with us for more information. All inquiries will be replied with in 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication. We believe that with our best quality products and your marketing channel, we are certain to establish a lasting mutual beneficial cooperation relationship with you.
Good quality, best price and better technical support and service, make Tanfon energy technology Co., Ltd as your most valuable cooperator in China.
