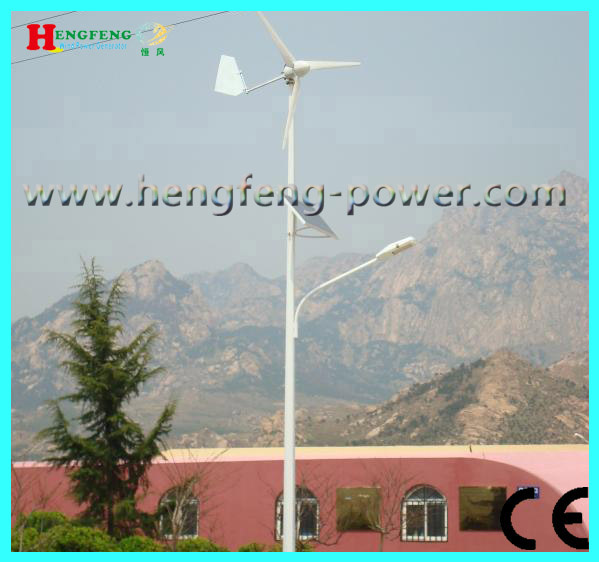

Wind generator 300W(HF2.6-300W)
Type of generator:
1. Rated rotor speed: 400(r/m)
2. Rated speed: 8(m/s)
3. Rated power: 300W
4. Max power: 450W
5. Output voltage: 12V /24V
6. Start up wind speed: 3(m/s)
7. Work speed: 3-25(m/s)
8. Security wind speed: 40(m/s)
9. Generator shell material: Pressure cast iron
Blades:
1. Material of blades: FRP Lay-up by hand
2. Number of blades: 3PCS
3. Diameter of blades: 2.6M
Tower:
1. Height of pole: 6 m
2. Thickness: 3.25 mm
3. Tower diameter: 60(mm)
4. Flange: 125*125*8 (mm)
5. Material: Q235 Steel pipe
6. Sections of tower: 2
7. Surface treatment: Painting against decaying
|
Product |
Specification |
|
LED Lights Power |
50W |
|
Working Time |
8-12 hours per day, 2-3 days in rainy and no wind days |
|
Luminous Flux |
32150lm |
|
Voltage |
24V DC |
|
Mode Of Switch |
Optical Switch/Time Switch |
|
Solar Panel´ s Power |
50W Mono crystal Silicon |
|
Wind turbine generator |
300w output per hour under wind speed 8m/s |
|
Pole/tower |
Height 8m. Up Caliber: 70mm
Down Caliber: 175mm. Hot dripped galvanized spry Plastic
Wall thickness: 6mm |
|
Height of light |
6m |
|
Space between 2poles |
25m |
|
controller |
Intelligent Controller |
|
Battery |
one piece of 12V 100AH |
|
Defend Scale |
IP65 |
Qingdao Hengfeng Wind Power Generator Co., Ltd is one of the leading wind turbine manufacturer in China. Company start at 2004, Workshop covers more than 5000 square meters. It is about 1 hour by car to Qingdao Airport. And 30 minutes to Qingdao port. The traffic is very convenient.
Our company mainly produces 150 watts to 100 kilowatts of small and medium horizontal axis, vertical axis wind turbines, wind and solar power supply system, widely used in off-grid and on-grid power generation system. Produced in strict accordance with the ISO9001 international standard production system management, we have standard production line and automated packaging line, strict product testing system, advanced test equipment, to ensure provide customers the highest quality products and services; All products have achieved CE certification. Hengfeng has unrivalled experience and has built up a global reputation for their robust and reliable performance.
Our products has been export to more than 60 countries, for example, Europe, Middle East, Southeast Asia, Australia etc; Widely applied for island, military, maritime monitor, home use, commercial business and remote area etc, we have integrated design, production, sale and after-sale service. If you are thinking about reducing your domestic energy bills or providing a multi-site energy solution for your business, HENGFENG can help achieve your renewable energy aspirations. We make sure that your wind turbine choice will work productively for you and deliver all-round environmental benefits.
