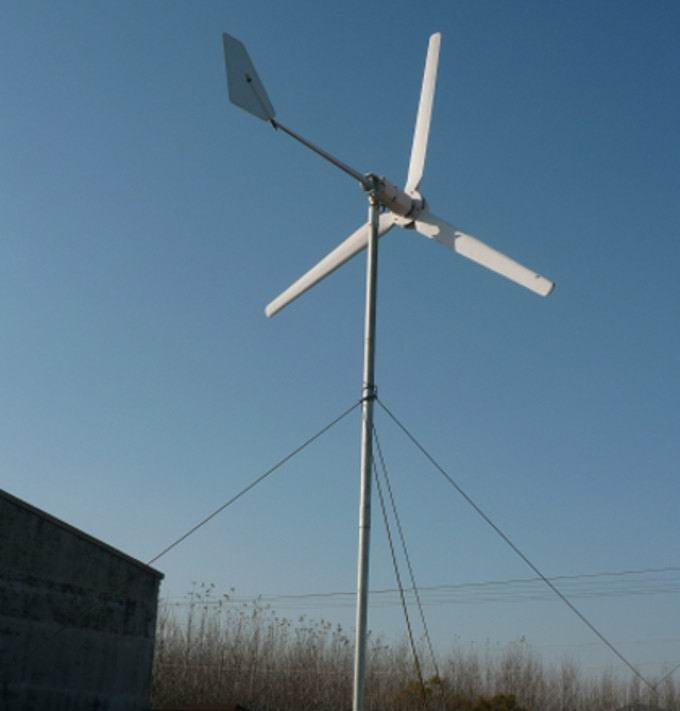

Wind turbine generator (HAWT)
The generator material: NdFeB, F grade copper wire
Output controller System: Charger controller, inverter
Design life: 15-20year
Temperature range: -40C to 60C
Warranty: 1 year.
| Rated power | 2000w |
| Rated voltage | 112v |
| Start up wind speed | 2.5m/s |
| Ability to resist wind | 26m/s |
| Rated wind speed | 7m/s |
| Blades quantity | 3pcs |
| Blades material | Compound glass fiber reinforced
plastic |
| Blade diameter | 4m |
| Rated rotate | 300r/min |
| Tower diameter | 114mm |
| Tower height | 6m |
| Batteryreference | 12v200ah,4/8pcs |
| Control | Full-auto control of sine
inverter |
| Weight | 380kg |
| Packs size | 2100 x 600x600mm |
Qingdao Hongkun Wind Dynamo Co., Ltd. is a professional manufacturer of vertical axis wind dynamo and series wind electric generating sets with high-efficiency permanent magnet direct-drive electric motors.
Our products don't require installation and maintenance of a step-up box, and with insulation grade of E. Their generated energy is 30% more than other common electric generators.
Made of strengthened carbon fiber-reinforced plastic, our products' blades are corrosion resistant and Oxidation resistant.
Our company has in-dependently developed and manufactured super low-speed permanent magnet generators and 300w-10kw vertical axis wind turbine generators in succession.
Our products have been exported to many countries and regions such as America, Britain, Denmark, Russia, etc., and all have been well received.
Friends ay home and abroad are warmly welcome to visit our company.
