Please find the attachment.
We have been in the renewable energy market since 2004 under the tense situation of increasing fossil fuels consumption.

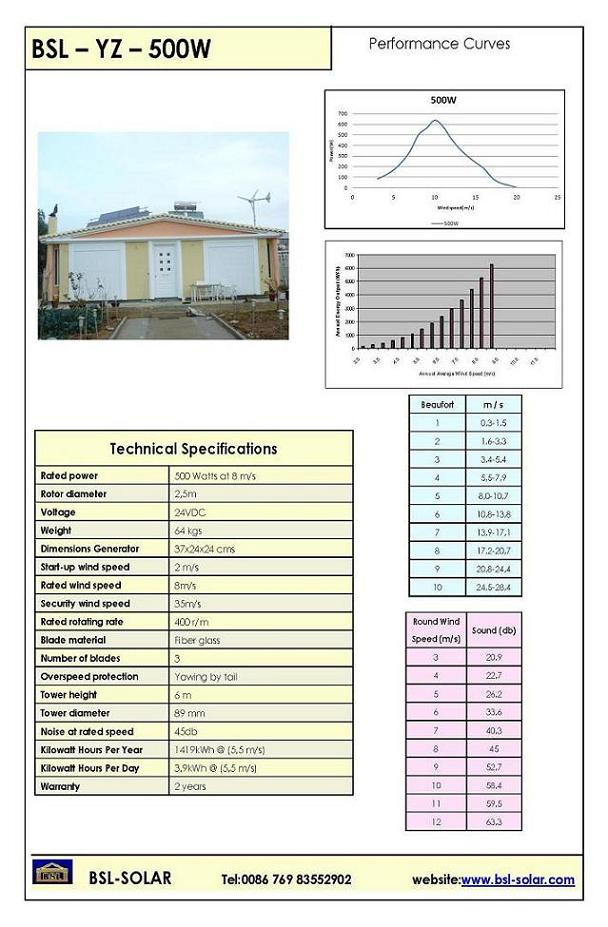

Rated power | 500 Watts 8m/s |
Rotor diameter | 2.5m |
Voltage | 24DC |
Weight | 64kgs |
Dimensins Generator | 37*24*24cms |
Start-up wind speed | 2m/s |
Rated wind speed | 8m/s |
Security wind speed | 35m/s |
Rated ratating rate | 400r/m |
Blade material | Fiber glass |
Number of blades | 3 |
Overspeed protection | Yawing by tail |
Tower height | 6m |
Tower diameter | 89mm |
Noise at rated speed | 45db |
Kilowatt Hours Per Year | 1419kWh @ (5,5m/s) |
Kilowatt Hours Per Day | 3,9kWh @ (5,5m/s) |
| |
We have been in the renewable energy market since 2004 under the tense situation of increasing fossil fuels consumption. We focus on the renewable energy and PV system, and we understand that excellent quality, attractive price and best service play an important role, therefore, please be assured that we will forever try our best to supply you with excellet products and satisfied price more than you desire.
