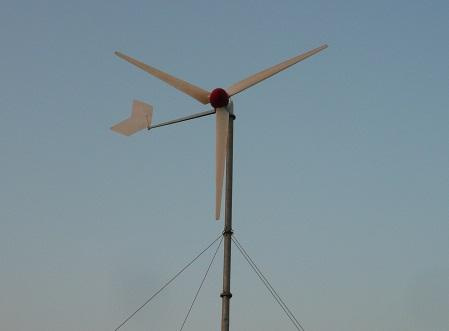

5 KW off-grid wind power generator system
|
Power |
5000W |
|
Type of generator |
Permanent-magnet -3phase A. C. |
|
Blade diameter |
6.0m |
|
swept area m² |
28.26 m² |
|
Blade Material: |
FRP (Fiber glass reinforced*3) |
|
rated rotor speed |
220r/min |
|
rated speed |
9m/s |
|
rated Power |
5000W |
|
max Power |
7000w |
|
output voltage |
DC220V/AC220V/50HZ |
|
start up wind speed |
3(m/s) |
|
work speed |
3-25(m/s) |
|
security wind speed |
40(m/s) |
|
Rate-limiting mode |
Rotating empennage + reluctance |
|
height of guy cable tower |
9m ( 159*5) Galvanized seamless steel pipe surface, then spray antiseptic white paint. |
|
top quality except tower |
167kg |
|
Total weight(kg) |
304.4kg |
|
output controller system |
Controller, Inverter |
|
|
12V 100AH 18psc |
|
Suggested batteries and it’ s capacity |
(18PCS 12V100AH) |
|
can supply power for |
air-condition, refrigerator, washing machine, water pump, electric pan, color TV, lighter, fanner, charger |
