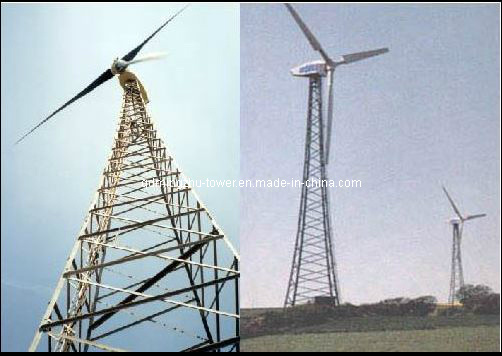

Wind Tubine Steel Tower
| Price: |
US $ 1300-1350/Ton |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
18/Ton |
| Pay Type: |
L/C,T/T,Western Union |
1.Category:
1) TRANSMISSION ANGLE TOWERS
2) STEEL PIPE COMBINATION TOWERS
3) STEEL TUBE POLES
4) SUBSTATION STRUCTURES
5) ALL KINDS OF CUSTOMIZED STEEL TOWERS 2.Voltage: 10KV-500KV power transmission line tower 1. ISO and AWS Certificate 2. 20 years production experience 3. Material :Q235, Q345, Q420B 4. Hot DIP galvanization 5. OEM is welcome 6. High quality with reasonable price 7. Can produce various height and structural tower 8. Monthly production capacity can reach 10000 Metric tons 3. Performance Standard Besides conforms to the drawing and design, the materials and fabrication of tower components shall conform to the following standards (Chinese Standards) and customer's requirements. 4. Steel angle steel tower welded requirements 1 )we used CO2 welding and submerged arc auto welding or other methods. 2 )Welded seam shall be full penetration and grinded. 3 )The welded product has no fissure, scar, overlap, layer or other defects. 5. Steel tower Galvanization All steel items ,bolts ,nuts ,washers & other components to be hot -dip galvanized with uniform. As per (ASTM-A-123). 6. Company Hardware Configuration 1. The company has advanced digital physical and chemical laboratory. 2. We have one 2400 tons CNC bending machine, have two domestic advanced digital automatic production line for steel pipe tower, have 6 automatic numerical control robot welding system, have one Steel tube joint welding machine , have 3 CNC plasma flame cutting machine, have 5 High speed CNC Angle steel line and steel plate production line, one CNC tower foot welding robot system. ,2CNC Plane drilling machine,1 sand shot blasting machine, 1 gantry type submerged arc welding machine.6 cutting/shearing machine3. Annual production capacity of 150, 00 tons of hot galvanizing line and one Automatic centrifugal bolt galvanizing line. 7. Management and technical advantages 1. 2009 ERP production management system 2. 2014 We are China steel structure association membership. 3. 2012-2014,we are provincial star enterprise. 4. 2013-2014 we have AAA credit grade ,which awarded by Agricultural bank. 5. 2011 We got ISO 9001:2008 standard certificate. 6. 2013 we got OHSAS 18001:2007 standard certificate 7. 2012We were patent enterprise 8. Mar, 2014 we got reputation certificate, which was awarded by Jiangxi province Supervisory Bureau for Quality and Technology. 9. Contract & promise keeping enterprise for 5consecutive years awarded by Qingdao business executive management bureau. 10.Engineering construction & installation enterprise grade IIWhy Choose us? * Tower Design tailor made to your requirements * Pre Dispatch inspection by buyer or international inspection agency. * Steel certified as per international. * Design of Tower as per China/ International design standards. * Galvanization as per international standard. * Timely project completion. * Convenient transportation to Qingdao port & airport(only one hour)* We are manufacturer. We have our own land & factory. The land was bought instead of renting.
| Type | Straight Pole ,Tensile Pole ,Turn Pole |
| Suit for | Electricity distribution |
| Shape | Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
| Material | Usually Q345B/A572,minimum yield strength>=345n/mm2 as main material
Q235B/A36,minimum yield strength>=235n/mm2- as auxiliary material.Q420B |
| Tolerance of dimension | +- 2% |
| Power Voltage | 10 KV ~550 KV |
| Design Load in Kg | 300~ 1000 Kg appliced to 50cm from the to pole |
| Marking | Name plate through rivert or glue ,engrave ,emboss as per customer requirement |
| Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power ,painting or any other standard by client required. |
| Joint of Poles | Slip joint connection or flange connection |
| Design of pole | We can design free of charge if Qty is numerous, client should supply the design parameter. |
| Standard | ISO 9001:2008 |
| Length of per section | Within 14m once forming without slip joint |
| Welding | Submerged arc welding , internal and external double welding makes the welding seam beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1 |
| Thickness | 1 mm to 30 mm |
| Production Process | Raw material test → Cutting→Molding or bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packaging |

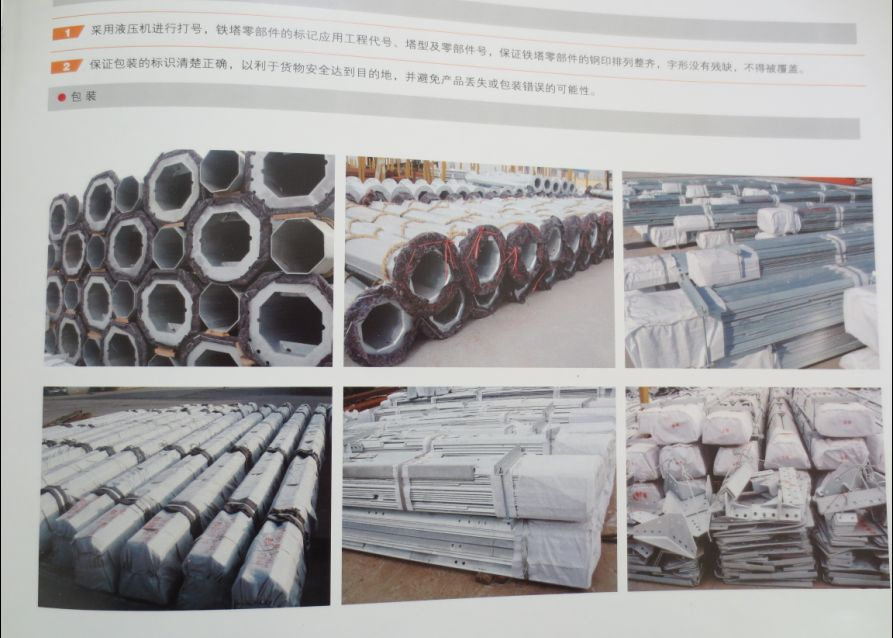

| Packages | Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data. |
| Prod Model: |
MZ-WTST |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tubular Suspension Transmission Tower: |
Tubular Tension Transmission Tower |
| Electric Pole Transmission Tower: |
Pylon Transmission Steel Tower |
| Electric Power Transmission Tubular Towe: |
Overhead Tubular Transmission Steel Tower |
| Galvanized Electric Power Transmission T: |
Angle Transmission Steel Tower |
| High Voltage Angle Transmission Steel To: |
High Voltage Lattice Steel Tower |
| Electric Power Transmission Steel Tower: |
Pylon Transmission Angle Steel Tower |
| Electric Angle Transmission Steel To: |
Electric Angle Steel Tower |
Qingdao Mingzhu Steel Structure, Co., Ltd., was established in 1993, located in Jiaozhou Bay of Qingdao, which is also a large-scale comprehensive industrial group. Through many years of development, the company now covers an area of over 199, 998 square meters, workshop covers 100, 000 square meters, owns fixed assets of RMB 0.12billion, registration capital of RMB 0.1billion, employs more than 450 staffs, among them, senior engineer 8 people, engineer 36 people, technical personnel 90 people, and has an annual production capacity of 110, 000 tons. Engaging in tower manufacturing for more than 15 years, we have become a professional manufacturer in the design, manufacture and installation of steel tower mast structure, tubular tower &mast, substation framework and other steel structures. Our main products include all kinds of steel towers and similar steel structures widely used in the fields like power transmission, substations, telecommunication, microwave-communication, radio/TV broadcasting, mapping, watching and other fields. In compliance with the customers' requirements, we can provide design, production, installation &EPC or single contracted project services. Our products have been exported to American, UK, Bangladesh, Pakistan, Nigeria and Vietnam etc.
