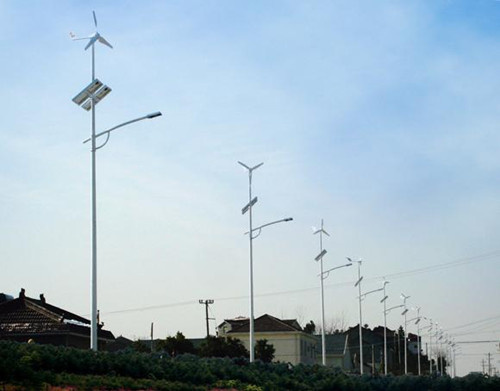

Hummer wind solar hybrid LED street lsystem is an innovative, environmental source, which combines wind energy and solar energy together to support the LED lamps.
It is cost effective and simple to install.
The whole system is composed of wind generator, solar panels, LED lamp, lamp pole, wind-solar hybrid controller, battery, support and brackets.
Wind generator (400W/600W are optional), permanent magnet alternator, smaller in size, lighter in weight, higher in efficiency, and can well with-stand in high wind speed.
Wind solar hybrid controller: Charging, over discharging protection, microcomputer timer switch.
Lamp pole: 10M, galvanized steel
LED lamp: 22W, 32W, 45W, 60W are available for standard solutions
Battery: 12V 80Ah-200Ah free maintenances GEL type
Solar panels: High efficiency mono-crystalline silicon
Working time: 8hrs per day, 3--5 overcast and rainy days.
We can offer different solutions for the wind-solar hybrid street light system upon customers' actual demands and local environment.
Rated power (W) |
400 |
Maximum output power (W) |
600 |
Charging voltage (V) |
DC 12 |
Blade quantity |
3 |
Blade material |
Nylon |
Blade diameter (m) |
1.25m |
Start-up wind speed (mph) |
6 (2.5m/s) |
Rated wind speed (mph) |
25 (11.0m/s) |
Rated rotating rate (r/min) |
800 |
Wind energy utilizing ratio (Cp) |
0.4 |
Generator output |
Frequency conversion AC |
Output AC frequency (Hz) |
0~300 |
Rated charging current (A) |
33.3 |
The maximum charging current (in a short time) (A) |
45 |
Generator efficiency |
>0.8 |
Tower diameter (in.) |
2.6 (65mm) |
Tower height (ft.) |
30 (9m) |
Generator weight (lb) |
12 (5.5kg) |
Suggested Battery (Ah) |
100/120 |
Anhui Hummer Dynamo Co., Ltd. is a professional wind generators manufacturer with high-tech in the field of wind energy.
We specialize in researching, developing, producing and promoting of small-sized wind generator system, and also provide solutions for setting up small-scaled wind farm. After nearly 30 years efforts, our company has developed independent intellectual property rights of "Hummer" wind generator and control system.
There are more than 200 employees in the company including 40 R&D staff. And the factory covers over 30, 000 square meters with the workshop more than 7.5 Acres. There are more than 100 sets of large machines for processing, cutting and spray-painting equipments, and also many testing and examining systems. The monthly output is 3, 000 sets.
All Hummer small-sized wind generators including wind generator from 400W to 200KW, which have acquired CE certificate. Meanwhile, Hummer' S wind generator with good reputation can be found in more than 91 countries and regions, such as EU, North America, Oceania, Africa and Asia.
Hummer' S wind generators have the features of "Super Light, Small, Swift and High efficiency" when comparing with traditional' S. We have a powerful R&D team (consisting of experts enjoying government allowance), providing a reliable strength for product upgrade& technical support. The management team has abundant experiences in production, marketing, service and consultation. Until now our company has formed a comprehensive management system of research, study, development and service.
Hummer aims to be a worldwide influential enterprise as well as the best domestic manufacturer and service provider.
