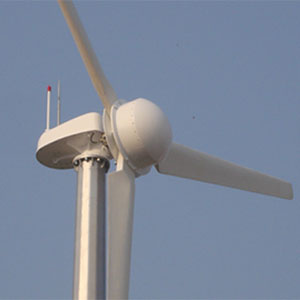

H10.0-30000W is a typical hummer smart wind turbine, which with a series of high-end technologies and refined material, h10.0-30000W wind turbine is excellent in generation, stable in output and reliable in practice.
Efficient generator
Hummer generator is one of the most advanced generators in the world. Made of refined permanent magnetic material, special copper alloy, aviation aluminum alloy and stainless steel, it is highly efficient in power. Due to its smallness, it is able to be placed inside the nose cone to reduce air resistance and increase efficiency.
Due to its advanced technologies, refined materials and uniquie design, h10.0-30000W wind turbine' wind energy utilization factor is as high as 0.42, while generator efficiency is > 0.92.
Smart control
H10.0-30000W wind turbine is controlled by a comprehensive smart system. Through our years of monitoring on wind turbine operation, we successfully develop an automatic control system for small and medium scaled wind turbines.
This smart system is able to automatically seek wind direction and constantly monitor: Generator working status, rotation speed, generator temperature, wind speed and direction etc. All data will be transmitted to control center.
When abnormal situation takes place, our control center will instruct wind turbine to deflect from wind direction. After problem is released wind turbine will turn to face the wind direction again and resume generation.
We can offer both off grid and grid-tied h10.0-30000W wind turbine system, for more details, please contact with us.
Application of model h10.0-30000W
It can drive air-condition ( ≤ 30 horsepower), pump or other electrical appliances (≤ 30kw).
Well used in:
Housing and factory and farm telecommunication station TV transfer station
Monitoring station (military, hydrology, observatory) water-pumping station Shipping use.
|
Rated power(W) |
30000 |
|
Maximum output power(W) |
45000 |
|
Charging voltage (V) |
DC 240 |
|
Blade quantity |
3 |
|
Rotor blade material |
GRP |
|
Rotor blade diameter(m) |
10.0 |
|
Start-up wind speed (m/s) |
2.5 |
|
Rated wind speed (m/s) |
11.0 |
|
Rated rotating rate (r/min) |
160 |
|
Wind energy utilizing ratio (Cp) |
0.42 |
|
Generator output |
Single-phase frequency conversion AC |
|
Rated charging current (A) |
125 |
|
The maximum charging current (in a short time )(A) |
190 |
|
Output AC frequency (Hz) |
0~400 |
|
Generator efficiency |
> 0.92 |
|
Free standing tower diameter(mm) |
Φ 1200× Φ 840 |
|
Tower height(m) |
18 |
|
The weight of generator(kg) |
680 |
|
|
|
Anhui Hummer Dynamo Co., Ltd., is a professional wind generators manufacturer with high-tech in the field of wind energy. We specialize in researching, developing, producing and promoting of small-sized wind generator system, and also provide solutions for setting up small-scaled wind farm. After nearly 30 years of unremitting efforts, our company has developed independent intellectual property rights of "Hummer" wind generator and control system.
There are more than 200 employees in the company including 40 R&D staff. And the new factory covers over 30, 000 square meters with the first workshop more than 3100 square meters has been put into use in August, 2007. There are more than 30 sets of large machines for processing, cutting and spray-painting equipments, and also many testing and examining systems. The monthly output is 3, 000 sets.
Hummer middle and small-sized wind generators including 400W, 500W. 1kw. 2kw. 3kw. 5kw. 10kw. 20kw, 30kw, 50kw, etc have acquired CE certificate. Meanwhile, Hummer wind generator with good reputation can be found in more than 91 countries and regions, such as EU, North America, Oceania, Africa and Asia.
Hummer's wind generators have the features of "Super Light, Small, Swift and High efficiency" when comparing with traditional'. We have a powerful R&D team (consisting of experts enjoying government allowance), providing a reliable strength for product upgrade& technical support. The management team has abundant experiences in production, marketing, service and consultation. Until now our company has formed a comprehensive management system of research, study, development and service.
Hummer aims to be the best domestic manufacturer and service provider as well as a worldwide influential enterprise.
