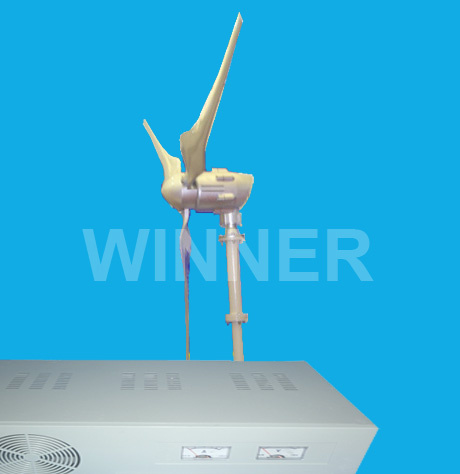

Wind Power System
Including: Wind turbine, Charging controller, Inverter, Tower and Accessories.
Specification
-Wind turbine
Rated power(kW): 2K
Rotor diameter(m): 2.8
Rated voltage(V): 48VDC
Rated wind speed(m/s): 12.5
Starting wind speed(m/s): 2.6
Survival wind speed(m/s): 60
Generator type: Permanent Magnet
Blade material: Super-strength engineering plastic
Wind direction: Down wind without Tail vane
-Charging controller
Special for the wind turbine
-Inverter
Option to be choosed according the power application equipments.
Feature
The rotor blades from super-strength engineering plastic, shaped by precision injection moulding process. Silent rotor.
Alternator with high grade NdFeB permanent magnets.
Excellent low wind performance.
Most reliable float brush-ring design (pat. Pending).
Passive yawing downwind structure design(pat. ), no tail-van.
Mechanical protection. More compact, more sensible, more reliable.
High quality aluminum alloy house and stainless steel hardware
Maintenance free design.
