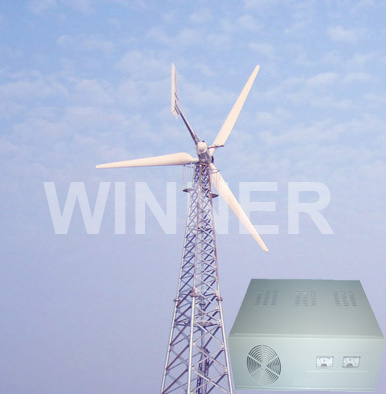

Wind Power System
Including: Wind turbine, Charging controller, Inverter, Tower and Accessories.
Specification
-Wind turbine
Specification
Rated power(kW): 20
Rotor diameter(m): 10
Rated voltage(V): DC540V/AC380V
Rated wind speed(m/s): 12
Starting wind speed(m/s): 3
Working wind speed(m/s): 4~25
Generator type: Permanent Magnet 3 Phase AC
Blade material: Reinforced Fiberglass
Speed regulation: Yawing
Wind direction: Up wind with Tail vane
-Charging controller
Special for the wind turbine
-Inverter
Option to be choosed according the power application equipments.
-Tower
Option to be choosed or designed according client's demand.
Product Feature:
The rotor blades from super-strength material, shaped by precision injection moulding process. Silent rotor.
Alternator with high grade NdFeB permanent magnets.
Excellent low wind performance.
Most reliable float brush-ring design (pat. Pending).
Mechanical protection. More compact, more sensible, more reliable.
High quality aluminum alloy house and stainless steel hardware
Maintenance free design.
Ningbo Winner New Energy Technologies Co., Ltd. is located in Ningbo, Zhejiang, as neighbour of Shanghai. We are featured to R & D and manufacture both the wind turbines and related new energy applying systems by owning strong expert group and suitable producing facility.
Our characteristic products includes 100W, 150W, 200W, 300W, 500W, 1kW, 2kW, 5kW, 10kW, 20kW wind generator, and series of wind solar hybird system.
Our aim is not only to make them for the world, but also to applly them to the world by our full support. We warmly welcome domestic and overseas companies for close cooperation to promote clean energies.
