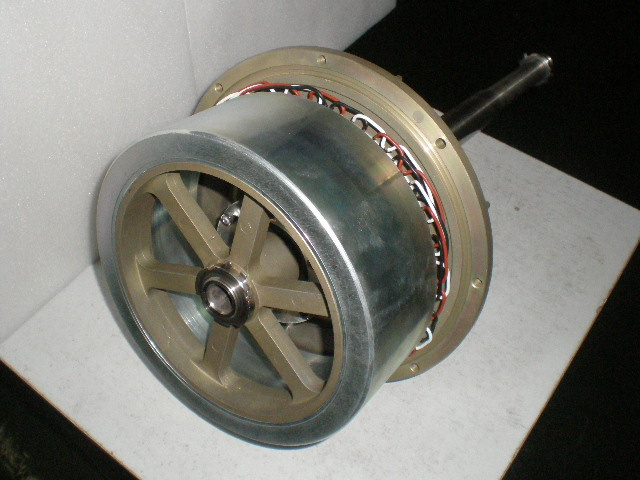

Wind power generator (150V-1000W)
Product feature:
Model: Wind power generator BGP1000-150
1. Coreless, unique precise coil, thin magnetic gap
2. Very low starting torque, applied to generate electricity with breeze
3. Higher power density
4. High efficiency
5. Excellent volume/performance ratio, light weight
6. No cogging
7. No torque ripple
8. Direct transmission
9. Good heat dissipation, low temperature rise.
Product specifications:
1. Rated Voltage: 150V
2. Gen. Output Voltage: AC(3 Phase)
3. Rotor: Permanet magnet type(outer rotor)
4. Stator: Coreless type
5. Rated Speed: 700rpm
6. Rated Output Power: 1000W-1500W
7. Max. Output Power: 2000W
8. Speed Constant: 238V/krpm
9. Resistance(Between terminal): 1.5 Ω
10. Maximum Winding Temperature: 150 degrees centigrade
11. Generator Efficiency: 93%
12. Start Torque: Very low(Just due to bearing loss )
13. Number of Phase: 3
14. Connection Way: Y-type
15. Magnet Material: NdFeB
16. Gen. Weight: 12kg
17. Gen. Diameter: 226mm
18. Gen. Length: 145(328mm including shaft length)mm
19. Shaft Diameter: 30mm
20. Shaft Material: Steel
21. Bearing: Ball Bearing
Applications: Used for small size wind power generator.
Established in December 2004, Shanghai Mindong Mechanism & Electron Co., Ltd., located in Songjiang Industry Zone, and with a total registration capital of USD320 mil. It is the solo Japanese invested company of a combination of professional design, manufacture and sales, and it's products are widely applied in automobile, aviation, medical equipment, electric apparatus industry, ect.
We own a powerful R&D team including mechanism and electron experts from Japan and America and many local senior engineers and talents in motor industry, meanwhile, we can also get strong technique support from the technique team in Head office in Japan.
Our main products are including coreless mini-wind generator, Ironless DC motor, Electric power steering motors, Brushless DC motor, Miniaturized High Speed motor, etc.
Main characteristics of the products:
1. Coreless DC motor: No pulse under torque ripple ironless, low heating, light in weight, high output power, empty inside, and can be
Used in the high power output motor(50~5000W).
2. Core DC motor: With the most advanced techniques and design, the common motors are small in size and with high output power.
Take the concept of running the company with credit and honesty, and with the abundant experience in the motor design and development, production, management and sales, we would like to cooperate with competitors in the same industry sincerely, and search for win-win situation and common development.
