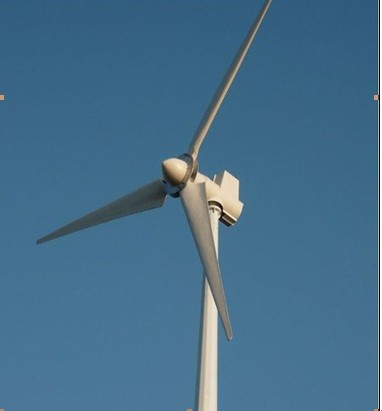

Wind Generator Set

Name: Wind Generator Set
Brand: aboutgenerator.com
SKU: 668369732
Availability: InStock
Rating: 4.7 (31 reviews)

Price:	Negotiable
Trade Terms:	by Sea
Min Order:	1
Pay Type:	L/C,T/T

Contact Supplier

Dongying Goldenman Energy Co., Ltd.

Showroom Product Company Profile

We supply wind generator sets, windturbines, wind turbines, permanent magnet generators of 100W, 200W, 300W, 400W, 600W, 1kw, 1.5kw, 2kw, 2.5kw, 3kw, 4kw, 5kw, 7.5kw, 10kw, 15kw, 20kw, 30kw ect.

This kind of 100W wind generators have a lot of advantages:

1. Low start up speed due to low cogging and resistive torque design. Gearless, direct drive, low RPM generator

2. High standard, quality components for use in harsh and extreme environments for wind turbines.

3. High efficiency, Excellent heat dissipation due to the Aluminum alloy outer frame and special internal structure, perfect choice for wind power.

4. Low mechanical resistance energy loss

5. High strength from the specially design structure and fully heat treatment Aluminum.

6. Generator is designed using specially selected material and treated to resist corrosion and oxidation.

7. Designed for reliable and long operational lifetime under long-term full output.

8. Designed for 20-year operation life. Patent protected design

Model	GMH- 100	GMH- 200	GMH- 300	GMH- 400	GMH- 600	GMH- 1kW	GMH- 1.5kW	GMH- 2KW	GMH- 2.5kW	GMH- 3kW	GMH- 4KW	GMH- 5kW	GMH- 7.5KW	GMH- 10kW	GMH- 15KW	GMH- 20kW	GMH- 30KW
Rated Power (W)	100	200	300	400	600	1000	1500	2000	2500	3000	4000	5000	7500	10000	15000	20000	30000
Maximum Power (W)	150	250	400	500	750	1500	2200	3200	3600	4000	5000	7000	10000	15000	21000	26000	34000
Rated Rotate Speed (r/m)	500	500	500	500	500	450	500	350	400	320	350	260	240	200	200	180	180
Starting Torque(N. M)	0.2	0.25	0.28	0.3	0.34	0.4	0.64	0.8	1.1	2.5	3.8	4.5	6.7	7.5	9.6	10	11.5
Rated Wind Speed(m/s)	8	8	8	8	8	8	10	10	10	10	10	10	10	12	12	12	12
Low Start-up Wind Speed(m/s)	3	3	3	3	3	3	3	3	3	3	3	3	3	3	3	3	3
Working Wind Speed (m/s)	3m/s-20m/s	3m/s-20m/s	3m/s-20m/s	3m/s-20m/s	3m/s-20m/s	3m/s-25m/s	3m/s-25m/s	3m/s-25m/s	3m/s-25m/s	4m/s-25m/s	4m/s-25m/s	4m/s-25m/s	4m/s-25m/s	4m/s-25m/s	4m/s-25m/s	4m/s-25m/s	4m/s-25m/s
Survived Wind Speed (m/s)	35	35	35	35	35	40	40	40	40	50	50	50	50	50	50	50	50
Normal Output Voltage (DC)	12	12	24	24	24	48	48	48	48	240	240	240	240	500	500	500	500
Optional Output Voltage (DC)	12-24V	12-24V	14-24	14-48	14-48	24-220V	24-220	24-350V	48-350V	48-240V	48-240V	5-48-500V	120-500V	120-500V	240-500V	240-500V	240-500V
Minimum Output Voltage (DC)	12	12	14V	14	14	24	24	24	24	48	48	48	120	120	240	240	240
Rotor Diameter (m)	1	1.4	1.6	2.2	2.5	2.8	3.2	3.5	3.8	4	5	5	6	7	8	10	12

Markets:	North America,South America,Eastern Europe,Southeast Asia,Western Europe
Number Of Blade:	Three Blade
Stress Way Of Blade:	Resistance
Rotating Shaft:	Horizontal

Dongying Goldenman Energy Co., Ltd is located in Dongying, we supply Wind generator, wind turbines, vertical axis wind generators, horizontal axis wind generators, wind power generators, wind turbine generators, mini wind turbine, small wind generator, windmills, wind energy, Wind-solar power hybrid system, On-Grid system, wind turbine parts and accessories, wind turbines blades, the control wind generators.

Our 50rpm, 100rpm and 150rpm wind generators are new designed with low starting torque, the structure is simple and have a very high efficiency.

The products sell well in Europe, America, East Asia, etc.
