1. Application
The wind power generator is an equipment to convert wind energy into electric power which is changed into storage battery group. It can be widely used in rich wind areas but without normal energy supply from any power system. It is capable of providing power for lighting, TV, telecommunication equipment and so on.
2. Structure and Main performance wind generator

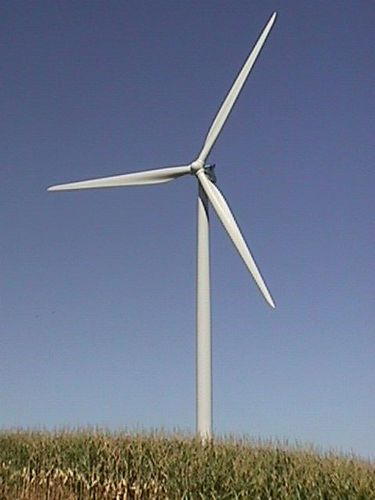

The unit is mainly composed of wind rotor, permanent magnet generator, tail vane, stand, electric controller, storage batteries, electric inverter, electric cable, etc. (Fig1)
Rotor Diameter (m)
| 7.0
|
Material and number of the blades
| Reinforced fiber glass*3
|
Rated power/maximum power
| 10 /12KW
|
Rated wind speed (m/s)
| 1 1
|
Startup wind speed (m/s)
| 2.5
|
Working wind speed (m/s)
| 3~25
|
Survived wind speed
| 50
|
Rated rotate speed(r/min)
| 220
|
Working voltage
| DC96/120/240V/300V/360V/480V
|
Generator style
| Three phase, permanent magnet
|
Charging method
| Constant voltage current saving
|
Speed regulation method
| Yaw+ Auto brake
|
Weight
| 980kg
|
Tower height (m)
| 15
|
Suggested battery capacity
| 12V/200HA Deep cycle battery 40pcs |
Life time
| 15years
|
