Foshan tanfon enerty technology company is a professional maunfactured of wind turbine, We manufacture products of steady-going quality and competitive price by the fine wind force resource, the abundant labor and the attractive price of raw material and provide high-quality after-sales services, which are won high praises by the customers at home and abroad. Products are widely used not only in China, but also in Somalia, Australia, America, Canada, Chile, Argentina, New Zealand, Ukraine, Sweden, Turkey, Indonesia, etc.
Construction Features:

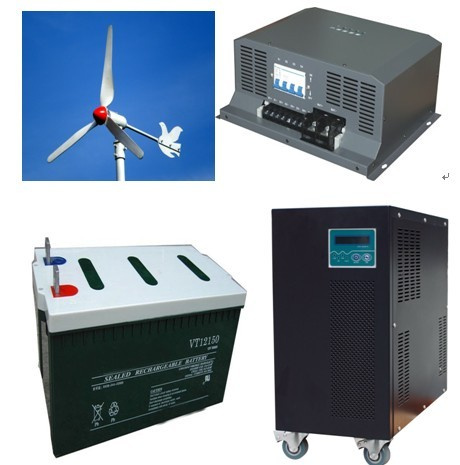

TF series of wind generator group are composed of generator, combination that consist of generator, guyed tower and so on, controller, battery, inverter, which are produced in mould. The TF product line has slide output power function, consolidate design and graceful sculpt. In addition, they are fast and easy to install and simple way to be serviced.
1) Generator: To adopt over loading axletree which lubricates it for a long time.
2) Wind wheel: To adopt airfoil shade three- Blade made of glass fiber which has strong internal damping, good dynamic feature, good toughness, reliable to use and well to keep shade. The wind wheel and the generator has flexible connection to maximize efficiency and start up low wind speed
3) Controller: To adopt computer composed technology.
4) To improve stability and security
5) To enhance electricity efficiency
6) Useful time: 18 years under ordinary usage.
7) Warranty: 2 years.
Wind generator warranty: Generator 2 years, other parts 1 year.
| Model | FD-5000 |
| Rated power | 5000W |
| Generator detail |
| Starting wind speed | 3m/s |
| Cut-in wind speed | 4m/s |
| Rated wind speed | 13m/s |
| Security wind speed | 60m/s |
| Rated DC voltage | 96V |
| Rated speed | 225 r/m |
| Rotor diameter | 5150mm |
| Rated output AC voltage | 220V/50Hz(110v/60Hz) |
| Protection | Electromagnetic torque control and electricity brake |
| Type | 3phases permanent magnetism synchronization generator |
| Material |
| Blade material | Extra-strong fiber glass |
| Packing material | Plywood box and foam material |
| Package |
| Packing dimension | 910*520*630mm |
| N. W& G. W(kg) | 378/402kg |
Foshan Tanfon Energy Technology Co., Ltd. is specialized in R&D, manufacturing and selling solar wind product and all kinds of pure sine wave inverter. As one of the leading factories in the green energy source field, Tanfon was initially established in the year of 1996. We are a professional manufacturer of green energy products including: Solar power system, wind power system, solar street light system, all kinds pure sine wave inverter(solar inverter, wind inverter, home UPS inverter ), controller, battery products., with advantage of possessing a professional R&D team to develop new wind energy turbine and inverter in concept of "Green Energy Leads Low Carbon Life".
Product sales to
(Pakistan, Nigeria, Canada, , Costa-Rica, Cyprus, Mocambique, Turkey, Malavi, Thiland, Philippines, Belgium, Indonesia, Czech Republic, Madagascar, Italy, Australia, Egypt, Tajikistan, Sri Lanka, Malaysia, France, USA, Guaemala, Switzerland, Israel ect)
We accept OEM and small trial orders, contacting with us for more information. All inquiries will be replied with in 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication. We believe that with our best quality products and your marketing channel, we are certain to establish a lasting mutual beneficial cooperation relationship with you.
Good quality, best price and better technical support and service, make Tanfon energy technology Co., Ltd as your most valuable cooperator in China.
