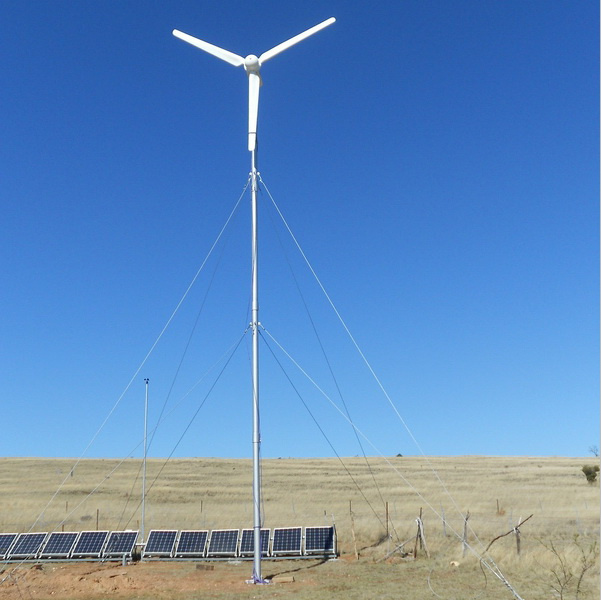

Wind Dynamo Turbine Generator 3000W for Remote Power

Wind Dynamo Turbine Generator 3000W for Remote Power
Price: US $ 3800/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T,Western Union
Characteristics of 3000W Wind Dynamo Generator:

1. Product Features:

1) Patent technology

Hummer's 3kW wind dynamo generator adopts SCF supercritical technology which won a gold award in the 37th Salon Eureka in Brussels. This technology significantly reduces generator's weight and size down to 25% to 30% of the traditional one, and the production efficiency is 25% to 30% higher. This ensures that the generator functions perfectly in small wind condition.

2) High quality
Hummer 3kW wind dynamo generator adopts two SKF (Svenska Kullager Fabriken) bearings which are produced by the largest bearing manufacturer in the world, with the perfect internal geometric structure, known for its life-time endurance and reliable quality. Ordinary bearings need to be changed every two or three years, while SKF bearings can greatly reduce the maintenance costs on this matter.

3) Smart control
Hummer 3kW wind dynamo generator's controlling system adopts the smart touch-screen PLC (Programmable Logic Controller) which is integrated with Siemens controlling unit. The PLC will alarm and adjust the abnormal running status of the wind turbine automatically both timely and efficiently. Siemens module offers high reliability to our PLC and its customers worldwide can testify for that.

4) Low noise
The design of the rotor blade of Hummer 3kW wind dynamo generator absorbs the highlights of the small aircraft's airfoil, which is compliance with the aerodynamic standards. It provides a more aesthetic look and a higher efficiency and reduces the noise production as much as possible.

5) High reliability
Hummer 3kW wind dynamo generator generally adopts the yawing system and the electromagnetic braking system to regulate the rotation of the wind turbine. Besides, customer can order the hydraulic braking system as well as a third protection. It is easy and convenient to shut down the whole system both manually and automatically.

2. Application:

1) Housing, office, farm and factory;
2) Telecommunications Station
3) TV Transfer Station;
4) Monitoring Station (military, hydrology, observatory)
5) Water-pumping Station;

3. Product Range:

1) 500W-100kW wind turbine Off-grid /Grid-tied;
2) 400W-600W Wind-Solar LED street light and traffic light;
3) Wind-Solar hybrid generating system.
4) Wind-Solar-Diesel hybrid generating system.

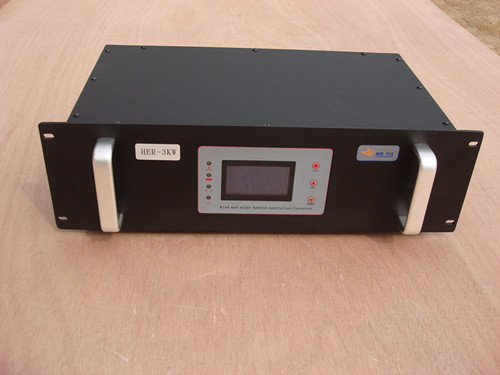

3kw off Grid inverter:

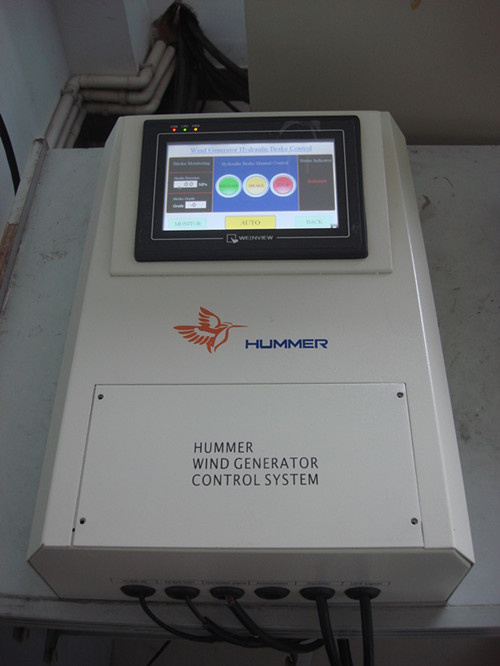

Hummer PLC controller:
Model No. H4.8-3KW
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter 4.8m
 Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 3kW @ 10m/s
Battery Bank Voltage 180 Vdc
System Output Voltage 110/220Vac
Cut-in Wind Speed 2.5m/s
Rated rotating rate 265 r/min
Working Wind Speed 3-25 m/s
Survival Wind Speed 50 m/s
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 81.7kg
Generator Efficiency >0.8
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing & Hydraulic Braking
Shutting Down Method Manual & Automatic electromagnetism Braking
 Warranty  2 years for generator and 1 year for other parts
Prod Model: H4.6-3kW
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Generator Type: Permanent Magnet Generator
Generator Weight: 71.8kg
Tower Height: 12m
Patents: Seven
Certificate: CE, BV, ISO
Start-up Wind Speed: 2.5m/S
Working Wind Speed: 3-25m/S
Survival Wind Speed: 50m/S
Over Wind Speed Control: Electromagnetism Brake, Hydraulic Brake, Yawing
Shut Down: Auto or Manual
Rotating Shaft: Horizontal
Number Of Blade: Three Blade
Stress Way Of Blade: Resistance
Anhui Hummer Dynamo Co., Ltd. is a professional wind generators manufacturer with high-tech in the field of wind energy.

We specialize in researching, developing, producing and promoting of small-sized wind generator system, and also provide solutions for setting up small-scaled wind farm. After nearly 30 years efforts, our company has developed independent intellectual property rights of "Hummer" wind generator and control system.

There are more than 200 employees in the company including 40 R&D staff. And the factory covers over 30, 000 square meters with the workshop more than 7.5 Acres. There are more than 100 sets of large machines for processing, cutting and spray-painting equipments, and also many testing and examining systems. The monthly output is 3, 000 sets.

All Hummer small-sized wind generators including wind generator from 400W to 200KW, which have acquired CE certificate. Meanwhile, Hummer' S wind generator with good reputation can be found in more than 91 countries and regions, such as EU, North America, Oceania, Africa and Asia.

Hummer' S wind generators have the features of "Super Light, Small, Swift and High efficiency" when comparing with traditional' S. We have a powerful R&D team (consisting of experts enjoying government allowance), providing a reliable strength for product upgrade& technical support. The management team has abundant experiences in production, marketing, service and consultation. Until now our company has formed a comprehensive management system of research, study, development and service.

Hummer aims to be a worldwide influential enterprise as well as the best domestic manufacturer and service provider.
