Wheel Chair Lift for Disabled Person
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Description:FEATURE:
High Quality wheel-chair lift

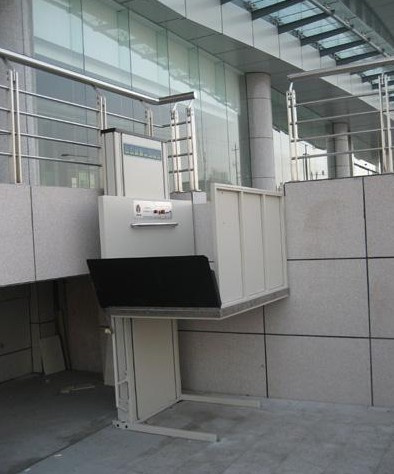

One of the most common challenges faced by wheelchair users is going through steps in public or private areas. If you are considering an alternative to your current method of going up and down stairs, a wheelchair lift might be your best choice. Our wheelchair lift is a short rise vertical elevating system. This durable and easy-to-use vertical lift is suitable for indoor or outdoor applications requiring vertical transportation up to 6 meters.
Our wheelchair lift consists of a platform with high side walls, an upper landing gate, a platform mounted gate, a drive system and easy-to-use operating controls. The platform walls and the platform gate travel with the platform creating a barrier around the passenger. This wheelchair lift can be installed with little to no site modifications. Its hydraulic system offers passengers smooth and comfortable transportation and different safety devices remove every hiding risk. Precisely designed configuration uses very square inch on the ground scientifically, making our product reliable and stable. So, stop stalling and just call our sales department. Our staff will try their best to design and produce the most suitable wheelchair lift for you or those you care of. GT-G wheelchair lift, the best choice for physically challenged people.Technical Parameter: | Technical specification |
| Power supply | 220v 50Hz 25A |
| Motor power | 2.2KW/AC |
| Control voltage | DC 24V |
| Maximum lifting stroke | Max 1500mm |
| Effective size of lifting bottom plate | 1370mm * 862mm |
| Rated load | 250Kg |
| Lifting speed | 70mm/s |
| Rocker | 75 |
| Minimum height of lifting bottom plate | 80mm |
Safety device | Safety Interlock | Lock the platform when it is out of control |
| Safety Sensor | The operation must be stopped immediately the safety edge meets obstacles during operation. |
| Emergency lowering | The platform can be lowered by opening
hydraulic valve manually or rolling screw rod. |
| Auto-flap | Turn up after lifting |
Company information:ARCH AUTO EQUIPMENT CO.,LTD.Arch Auto Equipment is one professional auto equipment manufacturer and supplier China. Since 1990, Arch is committed to designing, producing auto equipment. We supply wide range of equipment such as tire changer, truck tire changer, wheel balancer, truck wheel balancer, single post parking lifts, two post lifts, four post lifts, truck lifts, alignment lifts, scissor lifts, spray booth, waste oil burner, waste oil heater, oil drains, wheel weights, nitrogen generator and inflator, car turntable. Featuring durable quality, competitive price, timely and professional service, Arch Auto Equipment's equipments get more and more popular in the international markets, such as Germany, USA, Holland, UK, Russia, and Iran, awarded TUV/CE certificate. Furthermore, Arch Auto Equipment has strong R&D ability. During the past years, we have successfully created new design products with customers' cooperation. Arch Auto Equipment is willing to join hands with any partner for a bright future.
![]()
FAQ
Why chose us:1. Famous brand name in china2. Super high quality, competitive price3. Customer-oriented service4. Big production ability5. Fast delivery, excellent after-sale service6. Certificate CE, ASME, SGS, BV,ISO9001,ISO14001,How can I get quote/price1. Just send email to us ,and it will be responded with 24 hrswhat about the lead time for mass product1. Leading time:20daysOur company website:http://www.all4car.com
| Prod Model: |
wheel-chair lift |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor Power: |
2.2kw/AC |
| Lifting Speed: |
70mm/S |
