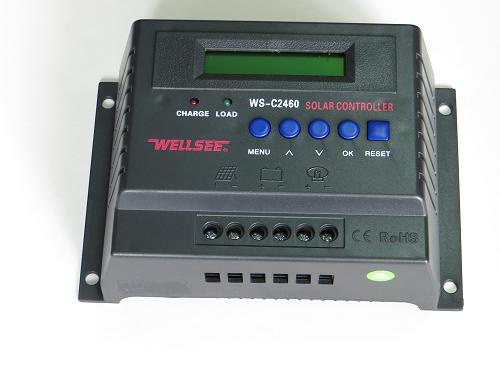

WS-C2460 series PV System Controllers (WELLSEE solar intelligent charge controller, solar product, solar system controller) are of stable quality and high reliability and can be applied under various worse geological conditions. Its appearance and function design has reached international advanced level. Relying on the types and actual charging situation of the battery, WS-C controller series can provide the fast and best charging voltage and electricity from the PV panel. WELLSEE solar charge controllers are equipped with advanced man-machine interactive function, so the user can adjust the charging voltage.
We are special large scale R&D and manufactory enterprise of solar charge and discharge controller and global supplier of Wellsee solar controller and photovoltaic system equipment. We also have passed ISO9001, CE and ROHS certifications. Wuhan Wellsee products can be designed and produced according to clients special request. Welcome agents from every area!
PV System Controllers
Functions:
1. Overload protection
2. Short circuit protection
3. Converse discharge protection
4. Reverse polarity connection protection
5. Thunder protection
6. Low voltage protection
7. Overcharge protection
8. Batteries stop and charge voltage HVD sets up
9. Charge and low voltage LCD sets up
10. Display the capability of the battery SOC
11. Loads and comeback setups.
12. Intellectualized temperature compensation
13. Record, calculate and display the charged AH on the LCD screen.
14. Record, calculate and display the discharged AH on the LCD screen.
15. CPU control and LCD display
|
Brand: |
WELLSEE |
Dimension: |
183*120*68mm |
|
Name: |
Solar charge and discharge controller |
Weight: |
940g |
|
Model: |
WS-C2460 |
Package: |
18pcs/carton |
|
WS-C2460 40A |
WS-C2460 50A |
WS-C2460 60A |
|
Rated voltage |
12V / 24V Automatic voltage recognition |
|
Max Load current |
40A |
50A |
60A |
|
Input voltage range |
12V~20V / 24V~40V |
|
Length≤ 1m Charge loop drop |
0.25V |
|
Length≤ 1m Discharge loop drop |
0.05V |
|
Over voltage protection |
17V/34V (Default value, can be reset) |
|
Full charge cut |
13.7V / 27.4V (Default value, can be reset) |
|
Low voltage cut |
10.5V~11V / 21V~22V (Default value, can be reset) |
|
Temperature compensation |
-3mv/° C/cell |
|
No load loss |
≤ 30mA |
|
Max wire area |
12 mm2 |
|
Ambient temperature |
--25° C------+55° C |
