Wellsee Charge Controller WS-C2430 20A 25A 30A

Wellsee Charge Controller WS-C2430 20A 25A 30A
Price: US $ 34/Piece
Trade Terms: FOB
Min Order: 27/Piece
Pay Type: L/C,T/T,D/P,Paypal,Western Union

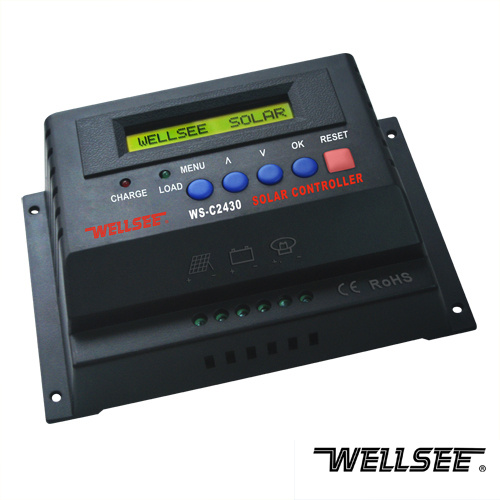

WELLSEE WS-C2430 charge controller

The WELLSEE solar vcharge controller (WELLSEE solar power system controller, voltage regulator) applies in solar photovoltaic systems, which coordinates the working of solar panels, batteries and loads. It adds some protection functions, so that the entire system can be in efficient and safe operation.

WS-C2430 30A series charge controllers apply to all types of photoelectric panels and various types of batteries, MCU (Micro-Processing Controller) has PMW (Pulse Modulation Wide-frequency) 0~100% variable duty cycle process. According to the types and actual charging situation of the battery, WS-C controller series can provide the fast and best charging voltage and electricity from the PV panel. C30 and C60 series are equipped with advanced man-machine interactive function, so the user can adjust the charging voltage.

Functions:

1. Overload protection

2. Short circuit protection

3. Converse discharge protection

4. Reverse polarity connection protection

5. Thunder protection

6. Low voltage protection

7. Overcharge protection

8. Batteries stop and charge voltage HVD sets up

9. Charge and low voltage LCD sets up

10. Display the capability of the battery SOC

11. Loads and comeback setups.

12. Intellectualized temperature compensation

13. Store, calculate and display the charged AH on the LCD screen.

14. Store, calculate and display the discharged AH on the LCD screen.

15. CPU control and LCD display

We are special large scale R&D and manufactory enterprise of solar charge and discharge controller and global supplier of Wellsee solar controller and photovoltaic system equipment. We also have passed ISO9001, CE and RoHS certifications. Wuhan Wellsee products can be designed and produced according to clients special request. Welcome agents from every area!
Model WS-C2430 20A WS-C2430 25A WS-C2430 30A
Rated Voltage 12V / 24V    Automatic voltage recognition
Max Load current 20A 25A 30A
Input current range 12V-20V / 24V-40V
Length≤ 1m
  Charge loop drop
0.25V
Length≤ 1m
Discharge loop drop
0.05V
Over voltage protection 17V / 34V
Full charge cut 13.7V / 27.4V
Low voltage cut 10.5V~11V / 21V~22V
Temperature compensation -3mv/º C/cell
No load loss ≤ 20mA
Max wire area 4mm 2
Ambient temperature -25--+55º C
Prod Model: WS-C2430
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Net Weight: 450g
Packing Box: 175*125*65mm
Carton: 27PCS/CTN
Size: 164*110*68mm
