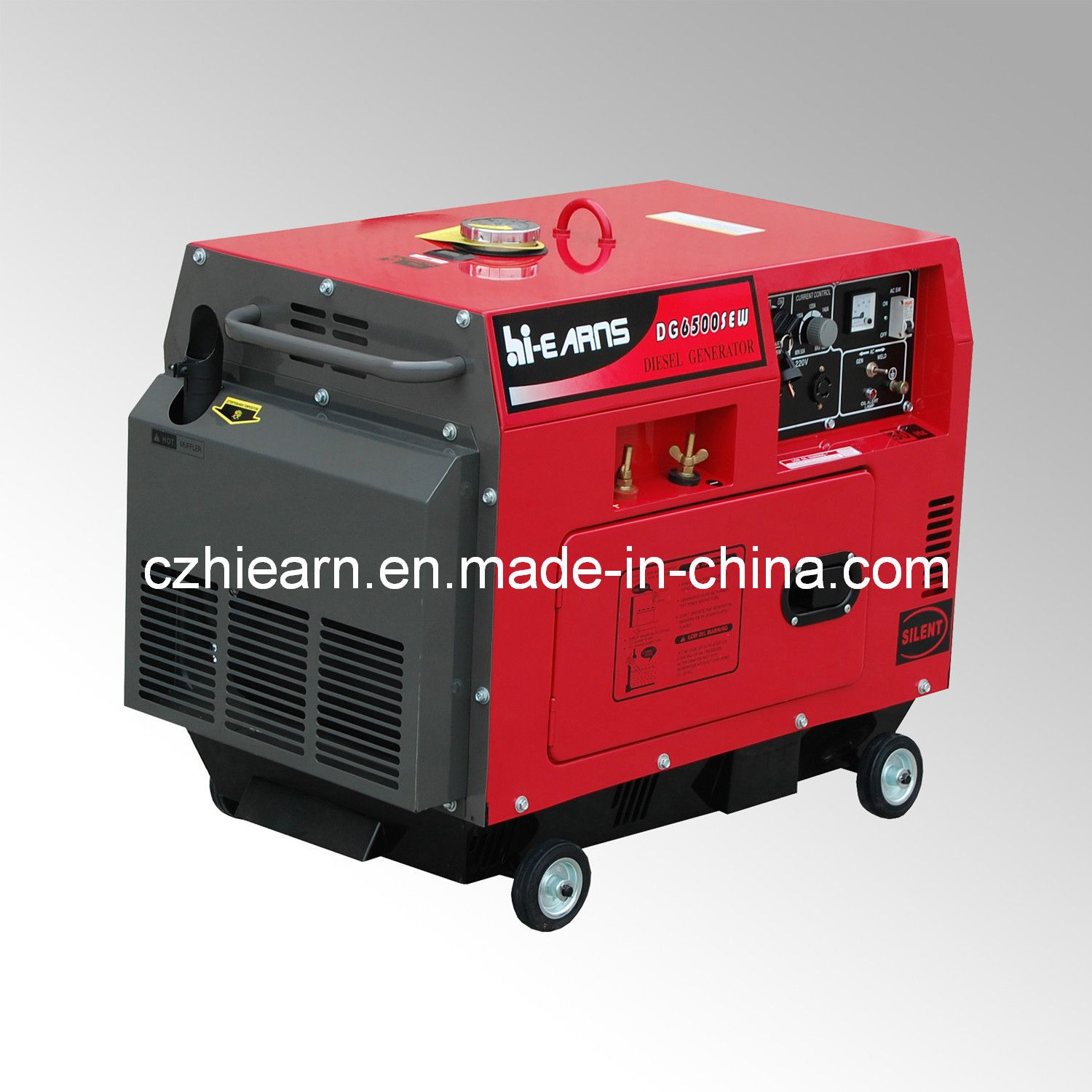

Welding Silent Diesel Generator with Red Color (DG6500SEW)
| Price: |
US $ 580/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P |
Welding generator set (DG6000EW)
1. We are manufactory, could give best suggestions to customers.
2. Professional general engineers and technical team.
3. Have spare parts for customers' exchange.
4. Warranty: Running 500 hours or one year.
5.100% copper good brand alternator, every spare parts suppliers are choosed extremely stricted, to control the quality well.
6. From engine to whole genset, we test every link of every product, have test machinery and test center.
7. Many spare parts are produced by ourselves, could save cost for customers greatly.
8. We welcome every customer visiting our factory and test our products.We are professional generator manufacture, I think we must have one type even more can match what you need!
Just send us your inquiry, we will high appreciate it!
|
Model |
DG6500SEW |
|
GENERATOR |
Frequency (HZ) |
50 |
|
Rated AC voltage (V) |
230 |
|
Rated Current(A) |
7.8 |
|
Rated output(KVA) |
1.8 |
|
Rated speed(rpm) |
3000 |
|
WELDER |
Welding no-load voltage(V) |
55-65 |
|
Working voltage(V) |
26-30 |
|
Rated Current(A) |
160 |
|
Range of current(A) |
0-180 |
|
Welding efficiency |
60% |
|
Power factor |
1 |
|
Phase |
1 |
|
Noise level(at 7m) |
68-72dB |
|
ENGINE |
Engine Model |
HR186FA |
|
Engine Type |
single-cylinder, vertical, 4-stroke air-cooled diesel engine |
|
Bore× Stroke |
86× 72 |
|
Displacement Capacity(cc) |
418cc |
|
Fuel |
0# or -10# light diesel oil |
|
Lubrication Oil Volume (L) |
1.65 |
|
Combustion System |
Direct Injection |
|
STANDARD FEATURES |
Voltmeter |
YES |
|
AC Output Socket(BS socket) |
2 |
|
AC Circuit Breaker |
YES |
|
Oil warning Light |
YES |
|
Oil Alert |
YES |
|
OPTIONAL FEATURES |
DC circuit breaker |
Optional |
|
Calculagraph |
Optional |
|
Big Wheel |
Optional |
|
DIMENSIONS |
Dimention(LxWxH)(mm) |
950× 530× 770 |
|
Net Weight(kgs) |
170 |
|
Gross weight(kgs) |
180 |
|
20FT loading pcs |
72 |
| Prod Model: |
DG6500SEW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling Method: |
Air Cooled |
| Stroke: |
Four Stroke |
| Installation Method: |
Portable |
| Type: |
Basic Diesel Generator |
| Output Type: |
AC Single Phase |

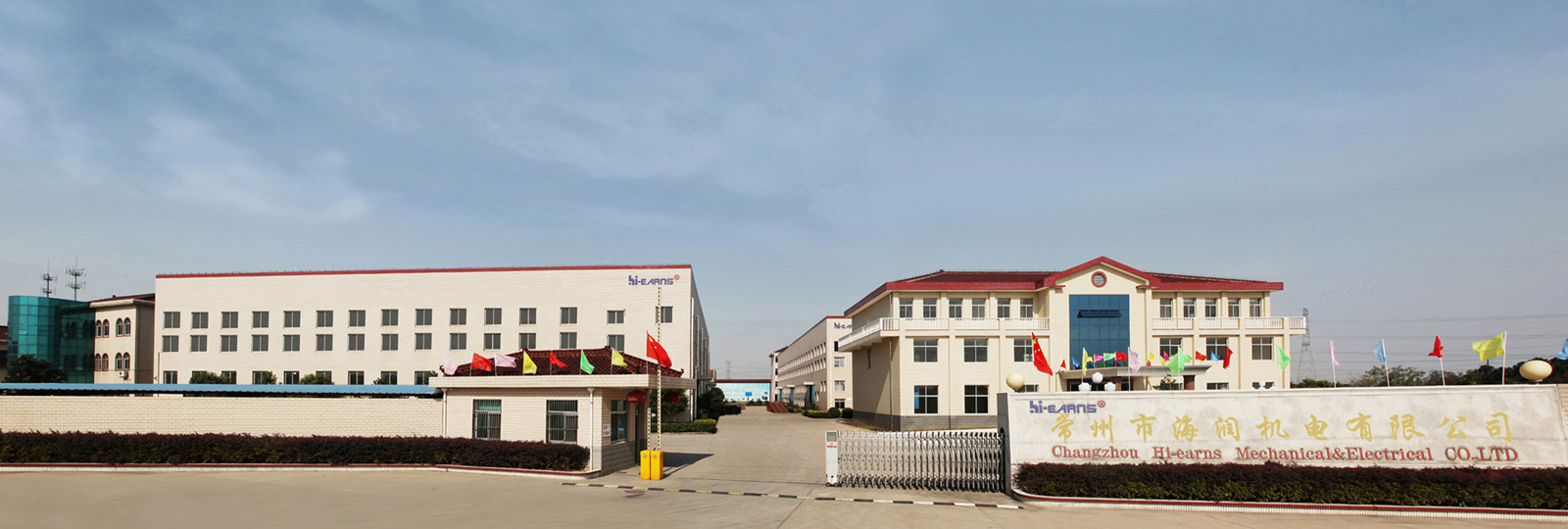

Changzhou Hi-earns Mechanical & Electrical Co., Ltd is established in 2005, which is a high-tech(mechanical&electrical) enterprise, gather "development, production, sales and systematic after-sales services" in one. Our company is certified by ISO9001-2008 QMS, get the EPA approval from U. S. A, CE approval from the European Union, GS approval from Germany and RoHS approval. Our company is one of the most influential enterprise in Eastern China, which is in the field of internal combustion engine.
Our company actively introduce advanced foreign technology and scientific management experience. The company have more than 300 staff, 50 of whom are junior and senior technicists, have 6 advanced automatic production lines. In addition, our company adhere to the brand strategy and international strategy, this greatly improved core competitiveness of us. Our main business includes: Water-cooled diesel generator set, air-cooled diesel engine and generator set, gasoline engine and generator set, water pump, minor agriculture machinery and road machinery equipment. Our company have developed out HR170FB which is turbine type air-cooled diesel engine with the own property right. What's more, this product have gained many certification of practical new-type patent. Our newly developed super silent generator set have got certification of invention patent, and we are the only factory which could produce it. Our company have strong technical force, and perfect after-sales service system. Our products have been sold to many main cities in China, and all over the world including North America, European, South America, Southeast Asia, Middle East, Africa, etc.
"Widely making friends with universal heart, positively returning society with responsible mind", this is the aim of Changzhou Hi-earns Mechanical & Electrical Co., Ltd. In the fierce competition environment, we all Hi-earns staff shoulder to shoulder, insist the faith of "surpassing ourself continuously, developing innovation constantly", and continuously strive for being the first brand of domestic and overseas in mechanical & electrical field, this shows Hi-earns unique enterprise charm and grace, which means "sincerity, diligence, cooperation, devotion". We will continue to build enterprise brand sincerely, gain customers' trust with quality, stand on domestic and overseas market with good price, open the future of Hi-earns with strong ability.
