Main Application and Characteristics

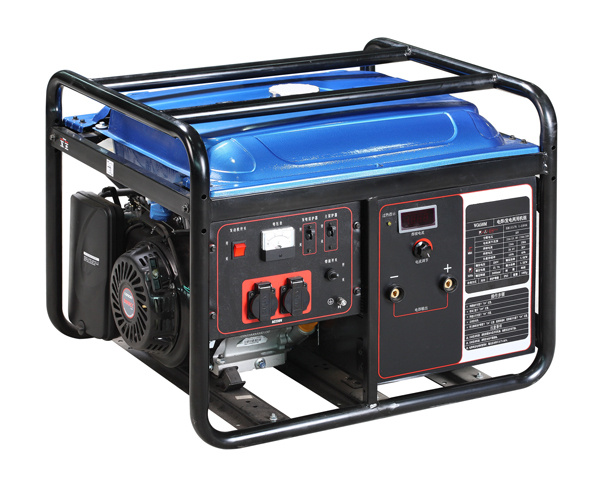

1. The device can be used as both gasoline generator and welding machine.
The integration of Generator and Welder compact structure design, small volume, light weight, convenient to move, especially suitable for the areas without power supply, such as paddy field and water zone covering densely, mountainous, hilly and complex terrain area.
2. Strong Power: Be adopted with middle frequency permanent magnet generator, high technology, reliable performance, high power generation efficiency reached 90%, saving fuel. The assembly of the gasoline engine, can provide stable welding current, and can supply the 220V/50Hz AC power supply during the welding.
3. Advanced Technology: The use of IGBT soft switch inverter digital latest advanced welding technology, and application of new and advanced welding control system, easy arc starting, so that the equipment can provide excellent welding quality, can meet the general welding requirement completely.
4. Powerful Functions: WG6500MT has both the function of manual stick arc welding and argon arc welding; Have advance aspirated, non-contact arc (arc distance is more than 10mm), the current slow rise and slow drop and delay stop gas, complete functions;
WG6500MP also has the pulse argon arc welding function, improve the function of equipment can meet the needs of the various welding requirement.
|
Item/Model |
WG3500M |
WG6500M |
WG6500MT |
WG6500MP |
Generator |
Rated Voltage |
Single Phase/ AC / 230V / 50HZ / 60HZ |
|
Rated Current |
12.2A |
21.7A |
21.7A |
21.7A |
|
Rated Power |
2.8KW |
5.0KW |
|
Max Power |
3KW |
5.5KW |
|
Power Factor |
1.0 |
|
Cooling Method |
Forced Air-cooled |
|
Welding Machine |
Welding Type |
Manual arc Welding |
Manual arc Welding |
|
|
Argon-arc Welding |
|
|
|
Pulse Argon-arc Welding |
|
No-load Voltage |
66V |
56V |
|
CurrentRegulation Range |
20-120A |
20-150A |
|
Max Welding Current |
90A |
120A |
150A |
|
Welding Voltage |
23.6V |
24.8V |
20.8-26V
(MMA) |
20.8-26V(MMA) |
|
10.8-18V(TIG) |
10.8-18V(TIG) |
|
Duty Cycle |
80% |
35% |
60% |
|
Whole Machine |
Net Weight Dimension |
43KG
610×470×420MM |
105KG
742×655×567MM |
Protection Grade/
Insulation Class |
F/IP23/B |
