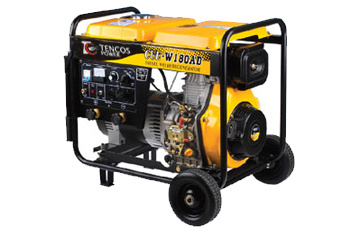

Product Description
CE approved, powered by CUE advanced air-cooled diesel engine
Dual function integrated in one machine, convenient switch
Stable welding current & waveform
Large fuel tank, ensuring hours of continuous output
Avariety of specially-designed control panels available for different markets
|
Model Name |
TC -W180AD |
|
DC Welder |
Rated Output (W) |
5500 |
|
Rated Current (A) |
160 |
|
Rated Voltage (V) |
25-32 |
|
Welding Current Range (A) |
50-180 |
|
Continous working |
S1 |
|
Applicable Electrode (φ) |
2.0-3.2 |
AC
Generator |
Phase |
Single Phase |
|
Frequency (Hz) |
50/60 |
|
Rated Output (W) |
2800/3000 |
|
Rated Voltage (V) |
110,120,220,240,120/240 |
|
Power Factor |
1.0 |
|
Voltage Regulation |
Automatic Voltage Regulator |
Electrical
Performance |
Insulation Class |
F |
Cont |
S1 |
|
Steady-state Voltage Regulate (cosφ=1) |
|
Generator Unload Voltage Wave Rate (When Welding-current Is Maximum) 2.7% |
|
Generator Load Voltage Wave Rate (When Welder Working) 2.2% |
|
Power Of Generator (When Welder is Working) 1.8kw-0.5kw |
|
Engine |
Model |
TC186FA |
|
Type |
Single-cylinder Vertical 4-strokes Air-cooled Direct Injection Diesel Engine |
|
Displacement (cc) |
418 |
|
Engine Speed (r/min) |
3000/3600 |
|
Rated Output (HP) |
9.0 |
|
Max. Output (Hp) |
10 |
|
Starting System |
Electric |
|
Lubricating Oil Capacity (L) |
1.65 |
|
Fuel Tank Capacity (L) |
15 |
|
Cout. Operation Time (H) |
9 |
|
Package |
Circuit Breakers |
|
|
Dimensions LXWXH(mm) |
760X510X650 |
|
Net Weight (Kg) |
145 |
|
Noise Level At 7m. dB (A) |
82 |
Tenchampion Group is a privately joint-stock enterprise, which is a professional Diesel/Gasoline Generator Sets manufacturer. It is located in the economic center in the east of Fujian Province in China.
TENCHAMPION ENTERPRISE has Three branches:
FUAN KINGER ELECTRICAL MACHINERY CO., LTD
Taiwan Branch(OSUMA CO. Ltd. ),
Beijing office.
Our company possesses the KIGER, JINGE, ALIDODO trademark, which has been known in the international market. The mark of the brand means the high quality of our product (Diesel/Gasoline Generator Sets).
We follow honesty, loyalty, cooperation, persistence as our marketing rulers. We offer excellent product (Diesel/Gasoline Generator Sets), excellent brand and excellent marketing to meet our customers' need.
Currently, there are 128 staffs in our company, including 15 executives and 5 technicians. We have 7 production lines which produces 0.1 million sets of products annually. We have more than 10 series and over 100 species gasoline/diesel machine and 95% of that are exported to international market, such as Middle East, Africa, Southeast Asia, Europe and South America, etc.
In order to achieve our company's farsighted strategic goal and provide the best service to our customers, all of us engaged in hard work to meet customers' demand, at the same time we push JINGE, ALIDODO brand forward to enable customer share of JINGE, ALIDODO products (Diesel/Gasoline Generator Sets) in the international market. We strive to adjust the product structure, improve the product (Diesel/Gasoline Generator Sets) quality and cut down the product cost too.
Thank you very much for your attention and we are looking forward to cooperate with you at anytime.
