Engine-Driven Welder Generator, Rated Output CC/DC 500A@100%, 550A@60%, 600A@40%, Rated Output CV/DC 500A@100%, 550A@60%, 600A@40%, Amperage Range 20-600A, OCV 95, 3 Phase, Auxiliary Power 17500W Peak 1 Phase, Engine Brand Deutz D 2011 L04I, Start Type Electric, Height 43 In, Width 28 1/2 In, Depth 64 7/16 In, Heavy Duty Industrial Diesel, Includes 20kw 3 Phase Aux Power, Engine Gauges With Maintenance Displays, Remote Tooless Oil Drain, Hi Temp, Low Oil Pressure & Low Fuel Shutdown
Item: Engine-Driven Welder Generator
Series: Big Blue 500 CC/CV
Rated Output CC/DC: 500A @ 100%, 550A @ 60%, 600A @ 40%
Rated Output CV/DC: 500A@100%, 550A@60%, 600A@40%
Amperage Range: 20 to 600
OCV: 95
Phase: 3
Auxiliary Power (1 Phase): 17500W Peak
Engine Brand: Deutz
Start Type: Electric
Height (In. ): 43
Width (In. ): 28-1/2
Depth (In. ): 64-7/16
Features: Heavy Duty Industrial Diesel
Application: Heavy Construction, Structural, Maintainance Repair
Includes: Engine Gauges With Maintenance Displays, Remote Tooless Oil Drain, Hi Temp, Low Oil Pressure & Low Fuel Shutdo

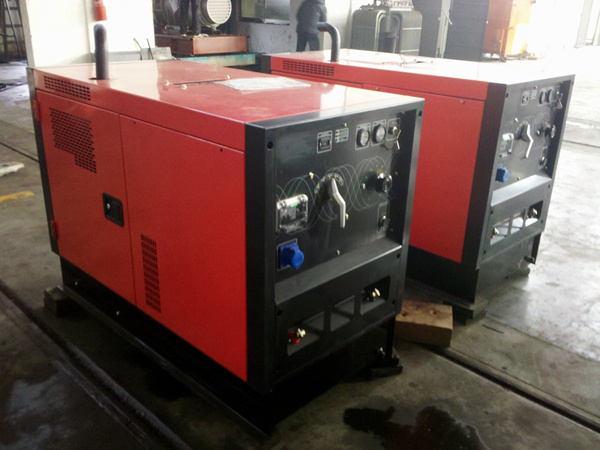

| DC WELDER | ENGINE |
| Type | DC Output | Model | F3L912 |
| Rated Output | KW | 26.4 | Type | Air-Cooled Industrial Diesel Engine |
| Rated Current | A | 600 | Rated Output | KW | 29 |
| Voltage | V | 20-45 | Rated Speed | rpm | 1800 / 60Hz |
| Current Range | A | 45-630 | Cooling System | Air-Cooling Environment Conditions |
| Open-Circuit Voltage | V | 95 | Driving System | Direct Coupling |
| Rated Duty Cycle | % | 60 | Fuel Oil | Light Diesel Oil |
| Rated Speed | rpm | 1800 / 60Hz | Lubrication System | Gear Pump |
| Applicable Electrode | mm | 1.6-8.0 | Starting System | Electric Motor |
| AUX POWER | Battery Capacity | 12V-80AH |
| Type | AC Output | Fuel Tank Capacity | L | 90 |
| Rated Output | KW | 3 (1-Phase Version) | OVERALL DIMENSIONS |
| Rated Current | A | 13; 27 | L | mm | 1525 |
| Rated Voltage | V | 230; 110 | W | 760 |
| Rated Speed | rpm | 1800 / 60Hz | H | 1050 |
| Rating |
| Continuous | Net Weight | kg | 900 |
Ruichang Gold Generating Equipment (Wuxi) Manufacturing Co., Ltd., established in 1982, is a manufacturer of a wide variety of diesel generator sets and portable power supplies. We are able to offer high quality diesel generator sets with imported engines, trailer-mounted power stations, mobile and container power stations, and even bunker power generator sets.
Our products are suitable for such industries as defense, telecommunications, transportation and natural resources. Additionally, buildings including hospitals, banks, and offices may use our power stations as either a mobile or stationary backup power supply. We accept special orders from clients and are able to meet all kinds of special technical requirements.
As a Sino-foreign joint-venture (Ruichang Gold Co., Ltd. Hong Kong and Wuxi Ruichang Electro Equipment Plant), we aim for the highest quality standards. We are ISO9001 certified and our products are manufactured according to strict internal quality control standards.
Our company principle is "Customers and credibility first" and always provide superior services and free consultation. Whether your inquiries are regarding product selection, systems integration, generator room designs or other technical details we will be happy to assist you with your needs.
We welcome both new and existing customers to come take a look at our current lineup and hope that you will choose our brand of competitively priced quality products. Please contact us for further details and we will promptly answer any questions you may have.
