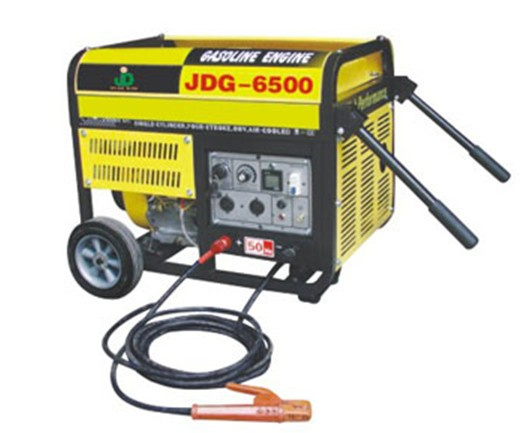

Welder&Generator Set(Gasoline Engine)
Model: JDG6500X(E)
Generator
Type: Brushless, self-exciting, 2-poles, single phase
AC Frequency: 50/60Hz
AC Output: 115/230, 220, 230, 240, 110, 120, 110/120, 120/240
Cont. AC Output: 5.0/5.5kVA
Max. AC Output: 5.5/6.0kVA
DC Output: 12V-8.3A(100W)
Insulation: F
Power Factor: 1
No-load Voltagle(DC)(V): 50
Cont. Current(DC)(A): 180
Cont. Rated Voltage(DC)(V): 25-35
Continuous load Rate: 60%
Continuous load Rate(A): 80-210
Engine
Type: JD420
Displacement: Air-cooling diesel engine, 4-storke, single-cylinder
Engine Speed: 3000/3600
Starting System: Recoil/Electric
Max. Power Output: 10HP
Fuel Tank Capacity: 16L
Continuous Operating(HR): 9.0/8.0
Operating Noise Level: 70
The main products of Jindi company are Electric Motor, Alternator, Gasoline water pump, Diesel water pump, Gasoline generator and Diesel generator, for house hold, Industrial and Agricultural use. Our company has obtained ISO90001: 2000Quality Management System Certificate in 2003, and some of the products have been granted by"CE", "SONCAP", while some of the products are granded by"CQC"with"CCC" certificate.
