Product Description

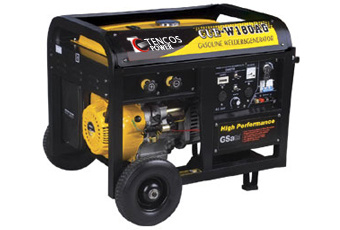

CE approved, powered by CUE advanced air-cooled gasoline engine
Dual function integrated in one machine, convenient switch
Stable welding current & waveform
Large fuel tank, ensuring hours of continuous output
Avariety of specially-designed control panels available for different markets
|
Model Name |
TC -W180AG |
TC -W220AG |
|
DC Welder |
Rated Output (W) |
5800 |
6700 |
|
Rated Current (A) |
160 |
180 |
|
Rated Voltage (V) |
25-32 |
22-32 |
|
Welding Current Range (A) |
50-180 |
60-200 |
|
Continous working |
S1 |
|
Applicable Electrode (φ) |
2.0-3.2 |
2.5-4.0 |
|
AC Generator |
Phase |
Single Phase |
|
Frequency (Hz) |
50/60 |
|
Rated Output (W) |
2800/3000 |
3000/3300 |
|
Rated Voltage (V) |
110,120,220,240,120/240 |
|
Power Factor |
1.0 |
|
Voltage Regulation |
Automatic Voltage Regulator |
|
Engine |
Model |
TC390F |
TC420F |
|
Type |
Force Air-cooled 4-stroke, OHV |
|
Displacement (cc) |
389 |
420 |
|
Maximum Output (Hp) |
13 |
16 |
|
Fuel |
Regular Automobile Gasoline |
|
Fuel Tank Capacity (L) |
25 |
|
Lubricating Oil Capacity (L) |
1.1 |
1.1 |
|
Ignition System |
1.6 |
|
Starting System |
1 |
|
Package |
Noise Level (7m) dB (A) |
77 |
78 |
|
Dimensions (LXWXH) (mm) |
750x590x600 |
780x590x600 |
|
Standard Features |
Dry Weight (Kg) |
110 |
125 |
|
Oil Sensor |
O |
O |
|
Fuel Gauge |
O |
O |
|
Ampere Adjuster |
O |
O |
|
Automatic Voltage Regulator |
O |
O |
|
AC Circuit Breaker |
O |
O |
|
Auto. Idle Down Device |
O |
O |
|
Optional Equipment |
Upper Frame |
O |
O |
|
Electric Starter |
O |
O |
|
Oil Sensor Lamp |
O |
O |
|
AC Plug |
O |
O |
|
4-wheel Dolly Kit |
O |
O |
|
Hanger Kit |
O |
O |
|
Battery Tray Kit |
O |
O |
