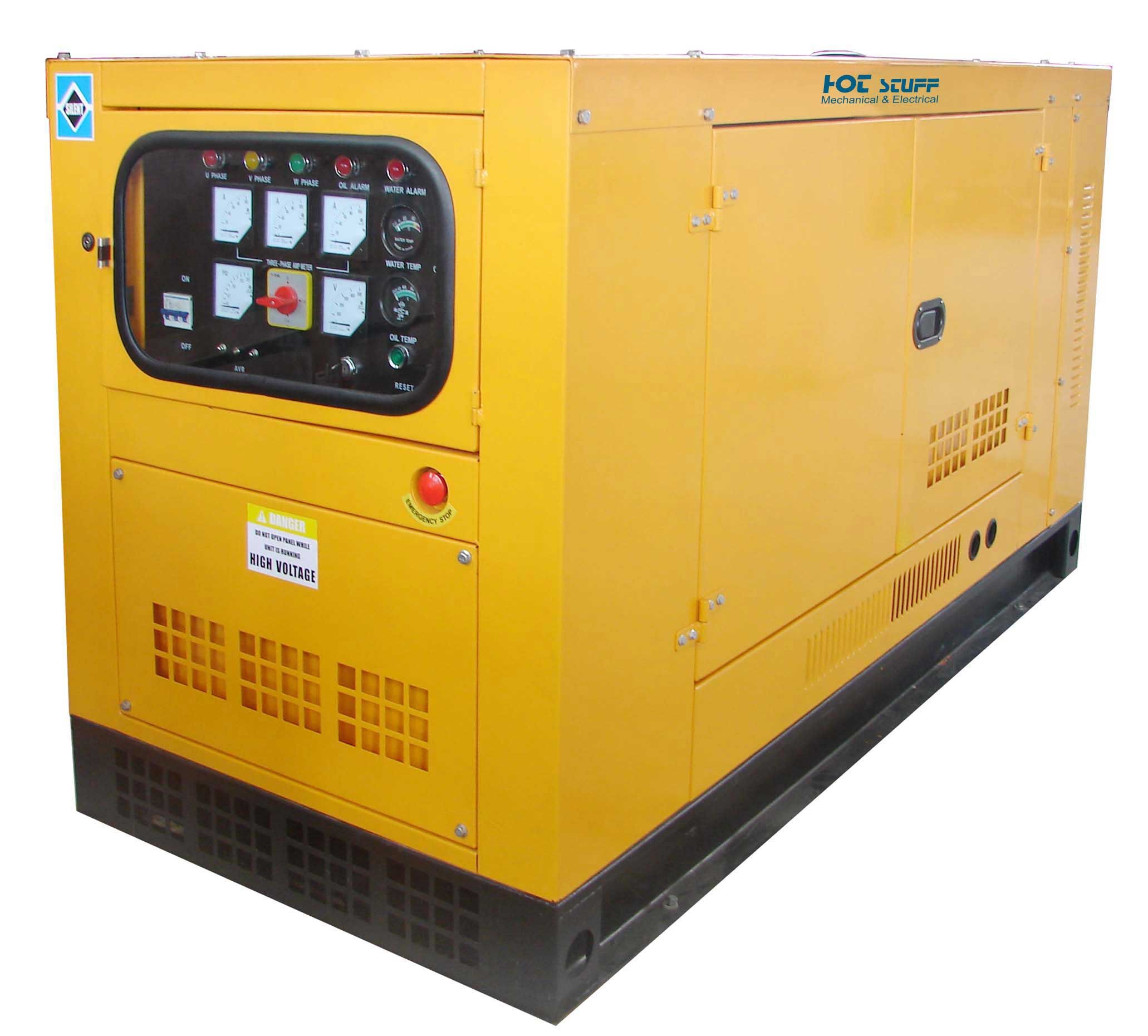

Big power diesel generator set: Soundproof encolsure, elegant appearance, reduce noise level effectively. Output from 10KVA to 150KVA for weifang engine
Big power diesel generators set: A compact structure and strong soundproof enclosure which has an elegant appearance is easy to be assembled or disassembled adn reduce noise level effectively. The sets are operated conveniently. Full control panel with power indicator light, oil light. Emergency shutdown for low oil pressure adn high water temperature, large bottom fuel tank ensure long working time.
Key start
ATS to control with full AUTO and AVR Regulate voltage
| MODEL | GF2-120KW |
| Powered by Weifang Engine |
| Continuous Power (50HZ/60HZ) | 120KW/150KVA |
| Standby Power (50HZ/60HZ) | 129KW/161KVA |
| Engine Model | 6105IZLD |
| Engine Power (50HZ) | 135KW/169KVA |
| Engine Max Power (50HZ) | 145KW/181KVA |
| Speed | 1500rpm/1800rpm |
| Fuel Consumption | 224 g/kw.h |
| Cooling Method | Water - cooled |
| Starting Method | 24V DC electrical start |
| Alternator Model | TFW-120 |
| Alternator Power | 120KW/150KVA |
| Voltage | 380/220V |
| Electric Current | 216A |
| Power Factor | 0.8 |
| Phase | 3-phases |
| Brush/Brushless | Brushless |
| G.W/N.W | 2700/2540 KGS |
| Overall Size | 2820x1230x1660 MM |
| 20FT | 5 PCS |
| OPTIONAL |
|
| Panel | Auto Transfer Switch (ATS) Control Panel |
| ATS | Electricity Output Cabinet (≥75KW better chose) |
As a manufacturer, we specialize in producing big water cooled diesel generator from 8KW to 500kw above. Air cooled gasoline/ diesel engine, small air cooled gasoline/diesel generator set, gasoline/diesel water pump sets, concrete cutter, plate compactor, light tower, high pressure washer and so on products. Have about 10 year experience. Punctual delivery, good quality, competitive price.
If you are interested in any our products, pls let me know. We promise to supply you good quality and service you at first time!
Welcome your any enquiry! Hopefully, we can develop best with your cooperation!
