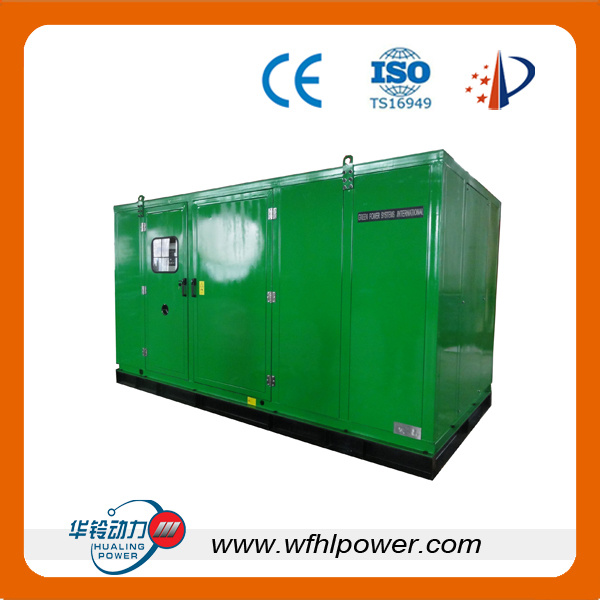

200kw weichai silent diesel generators
1) Silent diesel generator Output range: 40kW (50kVA) up to 800kW (1, 000kVA),
2) Engine model: 495D
3) Alternator: Stamford, Leroy Somer, Marathon series
4) Water-cooled
5) 8hrs operation base tank
6) Key start / auto start
7) Sound-proof / weather-proof canopy is optional
8) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires alternating current output
9) Frequency: <3%
10) Frequency at stable state: <0.5%
11) Frequency deviation at instantaneous state: ≤ +10%
12) Frequency return time: ≤ 3s
13) Voltage deviation at stable state: ≤ + -1%
14) Voltage deviation at instantaneous state: ≤ +20%
15) Voltage return time: ≤ 4s
16) Voltage modulation: ≤ 0.3%
17) Standard configuration of gensets:
A) Engine: Cummins diesel engine
B) Engine type: Water-cooled, in line four-stoke, Humit cylinder liner, direct injection
C) Alternator: Marathon brushless alternator
18) Control system:
A) Automatic alarm system: The unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and
Over current
B) Operation display:
I) Unit voltage, tri-phase load current and frequency display
II) Water temperature, oil pressure display
III) Fuel level, fuel temperature display
IV) Audible and visual alarm lamps and buzzers
19) Starting system: DC alternator is used to start engine
20) Short circuit protection: MCCB air switch
21) Cooling system: Combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40 degree
22) Filter system: Oil, fuel and air filter
23) Accessories: Exhaust elbow, bellow, muffler
24) Supply standard collocation:
A) Diesel engine with all accessories, 3 filter, electric systems
B) Alternator
C) Steel structure
D) Fan and water tank cooling system
E) Flange connector
F) 12 / 24V starting motor and charge engine
G) Air cleaner, fuel cleaner, oil cleaner
H) On-board control panel
I) MCCB air conservation switch
J) 12 / 24V starting accumulator and Battery line
K) Set shock absorber
L) High-efficient silencer.
|
TECHNICAL DATA |
|
DIESEL ENGINE MODEL |
R6105AZLD |
R6105IZLD |
R6113ZLD |
|
Engine Characters |
water-cooled, in line, 4 stokes, direct injection , wet cylinder liner |
|
Constant Output (kW/kVA) |
110/137.5 |
132/165 |
155/193.8 |
|
Standby Output (kW/kVA) |
121/151.3 |
145.2/181.5 |
170.5/213.1 |
|
Aspiration |
turbocharged |
turbocharged |
turbocharged |
|
Bore(mm) X Stroke(mm) |
105x130 |
105X135 |
113X125 |
|
Cubic Capacity (Liters) |
6.75 |
7 |
7.52 |
|
Piston Speed (m/s) |
6.5 |
6.75 |
6.25 |
|
Compression Ratio |
16: 1 |
16: 1 |
16: 1 |
|
Machine Governor |
≤ 5% |
≤ 5% |
≤ 5% |
|
Electronic Governor |
≤ 1% |
≤ 1% |
≤ 1% |
|
Acostic Pressure(dBA) |
≤ 114 |
≤ 114 |
≤ 114 |
|
Exhaust Temperature |
≤ 600 |
≤ 600 |
≤ 600 |
|
Lube Capacity |
16L |
18L |
21L |
|
Cooling System Volume |
28L |
28L |
36L |
|
Area of Heat Dissipation |
29m2 |
32m2 |
37m2 |
|
Combustion Air Flow |
8.44m3/min |
8.75m3/min |
10.59m3/min |
|
Exhaust Gas Flow |
18.54m3/min |
22.32m3/min |
25.64m3/min |
|
Rating Fuel Consumption (L/h) |
27.25 |
32.25 |
34.48 |
|
ALTERNATOR MODEL |
TFW2-100 |
TFW2-120 |
TFW2-150 |
|
Continuous Output (kW/kVA) |
100/125 |
120/150 |
140/175 |
|
Power Efficiency |
90% |
91% |
91% |
|
Voltage Regulation |
≤ ± 3% |
|
Excitation Type |
Brushless |
Brushless |
Brushless |
|
Insulation Class |
H |
H |
H |
|
DIMENSIONS AND WEIGHTS |
|
MODEL OPEN& SOUNPROOF |
GST100RS |
GST120R/S |
GST140R/S |
|
Approximate Length |
2600/3500mm |
2700/3600mm |
2800/3900mm |
|
Approximate Width |
780/1300mm |
780/1300mm |
1000/1450mm |
|
Approximate Height |
1600/2000mm |
1600/2000mm |
1700/2100mm |
|
Approximate Gross Weight |
1350/2550kg |
1400/2770kg |
1550/3100kg |
|
Technical data subject to change without previous notice. |
Weifang Hualing POWER CO. Ltd. It is located in the Power city, WEIFANG. With the integration of R&D, Design, Producing, Marketing and whole project construction, specializes in Energy, Electricity power, energy-saving, Environmental protection project.
The company has been identified OEM certificates by 8 World famous Engine group, ISO9001 quality management system certification, China energy-saving product certification. The company invested 2.6 billion RMB in the product line, and now is the first and top diesel engine and gas engine product line.
We produced a series multi-point injection electronic control engine and report to the National Development and reform commission, series of engines on the HL. CNG special report on current trends.
Since 2008, the product of HUALING Power Co., Ltd. Enter to the oil industry, develop and produce wellhead gas generating set, now has been widely used in the CBM oil brand and running in the subsidiaries.
