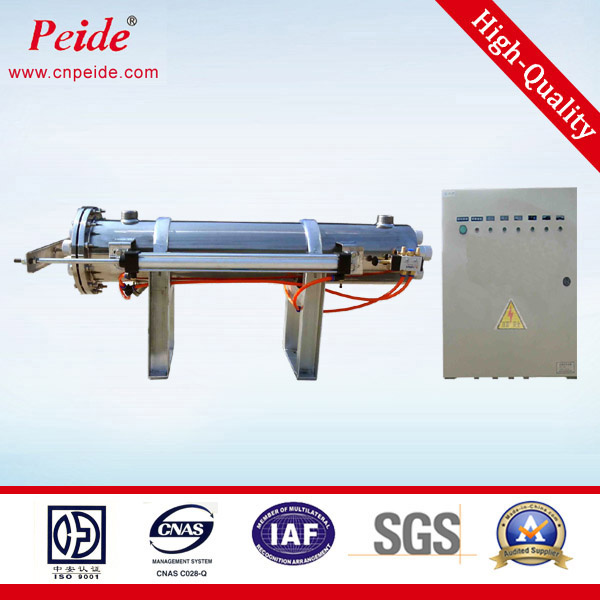

Water Treatment Plant for Drinking Water Disinfection

Water Treatment Plant for Drinking Water Disinfection
Price: US $ 480-5000/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T
Water Treatment Plant for Drinking Water disinfection

Application

1. Food processing industry, including juices, milk, drinks, beer, practical oil and canned food.
2. Electronic industry.
3. Hospitals, various laboratory and high levels of pathogenic body water disinfection.
4. Households building, residential, office buildings, hotels, restaurants, water factories.
5. Purification and disinfection of shellfish, fish cleaning and disinfection process
6. Military camp, field water supply system
7. Urban wastewater disinfection.
8. Swimming pool, other recreational water disinfection
9. Thermal power, nuclear power plant industrial, central air conditioning system cooling water.
10. Biological, chemical and pharmaceutical, cosmetics for the production of cooling water.
11. Sea water, fresh water breeding, aquaculture water

Product application

Ultraviolet light treatment is a widely recognized and proven method of disinfection of water and has several advantage over other disinfection methods such as chlorination, ozonation, etc. UV light does not add anything to the water, such as, undesirable color, odor, taste, or flavor, nor does it generate harmful byproducts. It adds only energy in the UV radiation. Also, UV disinfection requires only a fraction of the contact times required by other disinfection methods. It is fast, efficient, effective, economical and environmentally-friendly.

Principle of operation

UV water disinfection system design has been carefully conceived to provide adequate germicidal dosage throughout the disinfection chamber. The dosage, as it applies to UV disinfection, is a function of time and the intensity of UV radiation to which the water is exposed. Exposure time is related to the flow rate, the higher the flow rate, the lower the exposure time or the lower the flow rate, the higher the exposure time. The UV intensity is the amount of energy, per unit time, emitted by germicidal lamp. The dosage is the product of UV intensity and the exposure time.

Limitation of use

The UV water disinfection system not intended for the treatment of water that has an obvious contamination or intentional source, such as raw sewage, nor is the unit intended to convert wastewater to microbiologically safe drinking water.

Water quality (in)

Water quality plays a major role in the transmission of germicidal UV rays. It is recommended that the water does not exceed following maximum concentration levels
Maximum concentration levels (very important)
Iron: ≤ 0.3ppm(0.3mg/l)
Hardness: ≤ 7gpg(120mg/l)
Turbidity: ≤ 1ntu
Manganese: ≤ 0.05ppm(0.05mg/l)
Tannins: ≤ 0.1ppm(0.3mg/l)
UV transmittance: ≥ 750‰

Effectively treating water with higher concentration levels than listed above can be accomplished, but may require added measures to improve water quality to treatable levels. If, for any reason, it is believed the UV transmission is not satisfactory, contact the factory.

Model No
Flow Rate(m 3 /h)


All Lamps Power (W)


In / Outlet inch


Chamber dimensions (mm)

mminches

PDCn-050


2


40


25


1"


1000× Φ 89


PDCn-150


6


80


32


1-1/4


1000× 300× Φ 108


PDCn-200


8


120


40


1-1/2


1000× 400× Φ 159


PDCn-300


12


160


50


2"


1000× 400× Φ 159


PDC-360


15


200


65


2-1/2"


1000× 400× Φ 159


PDC-500


20


240


65


2-1/2"


1000× 500× Φ 219


PDC-600


25


280


80


3"


1000× 500× Φ 219


PDC-700


30


320


100


4"


1000× 500× Φ 219


PDC-1000


40


360


100


4"


1000× 500× Φ 219


PDC-1300


50


435


125


5"


1000× 570× Φ 273


PDC-1500


60


620


150


6"


1700× 570× Φ 273


PDC-2000


80


775


150


6"


1700× 570× Φ 273


PDC-2500


100


930


150


6"


1700× 570× Φ 273


PDC-3000


125


1085


150


6"


1700× 570× Φ 273


PDC-4000


150


1240


200


8"


1700× 570× Φ 325


PDC-5000


200


1550


200


8"


1700× 570× Φ 377


PDC-7000


300


2170


250


10"


1700× 570× Φ 426


PDC-10K


400


2480











PDC-15K


600


3100











Note

PDCn-050 to PDC-100 using 40w UV lamp
PDC-1300 using 87w UV lamp
PDC-1500 to PDC-12k using 155w UV lamp
PDCn is threaded connection, PDC is flange connection


Drain inch

1/2" threaded


Lamp useful life

Standard 9000 Hours


UV lamp brand

" Lightsource" from USA


Single UV lamp

40w in general. We can aslo supply 75w, 87w, 155w, 240w, 320w


UV lamp select

If you need we can aslo supply UV lamp which can generater ozone


Chamber pressure

Rated to 0.6Mpa. If you need higher pressure, please tell me


Water temperature

The appropriate temperature is 4 - 50 DEGREE (-5-60 degree range)


Packing

Wooden packaging


Optional

UV intensity monitor system

Water temperature monitor system

Time accumulator system

Cleaning system: Maunal cleaning, Pneumatic cleaning and Electric cleaing


                                  Welcome to inquire, we will offer you the best items !
Prod Model: PDC
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Centrifuge Installation: Vertical
Method: Physical Treatment
Usage: Industrial, Home, Agriculture, Water Disinfection
Centrifuge Technology Use: Water Disinfection
Material: Ss304, 316L Plastic
Application: Water Disinfection
Certification: CE, ISO, SGS
Started from 2004, Peide has been concentrating on research and production for water treatment equipment, our founder Mr. Wu has been supplying team work for over 7000 project, and draw lessons from A large number of engineering practice and accumulated rich experience in design and installation. Considering from better cost-efficiency, safety, credibility, we supplied our solutions to our customers, such as Cocacola China, Pepsi China, Siemens, Gates Hydraulic, HSBC, Shanghai Expo Venue, Danone, Kerry food, Kafu, Hair, Lenovo, GE, Benz, Toyota, Hyundai Motor etc.,

For decades, we have been water treatment equipment for food, beverage, pharmacy, hospital, precision electronics, chemical, electric power, surface cleaning, air-conditioner industries. Our customer is mainly in the USA, Japan, South Korea, France, Norway, England, India, Chile, Mexico and other 70 countries.

Mainly Products: UV water sterilizer & disinfection equipment, Water Filter equipment including Bag type filter, Sucking automatic type filter, Automatic brush type filter, Sand filter equipment, Electric scale equipment, Recycling water treatment equipment, Ion stick etc., .

Certificate: ISO: 9001: 2008, CE, China Famous Brand

Sales: 20M RMB/year

Peide is always looking for new ways to increase the value of the products and services we offer to our customers. Our goal is to creat class quality, class service, class management and class environment. Try to make our sky bluer, our ground greener our water cleaner.
