1.Natural Gas---its main component is CH4,which takes 90% of the whole content.Thermal efficiency of conversion is 65%, which is same to the LPG and higher than Coal; Calculated on the same calorific value, the price of natural gas is lower than the price of coal and petroleum. Natural gas is used by civil use, generation, industrial chemicals and industrial fuel etc. it's a good substitute of coal and petroleum. It can take instead of civil coal gas; it can be used as nitrogenous fertilizer instead of coal and petroleum; it can be used as ethylene instead of naphtha; it can be used as the car engine fuel instead of petroleum.
Natural Gas Generator, fueled mainly by natural gas and LPG, is widely used in regions or areas with abundant oil field and natural gas. Global electrical power demand will be 80% higher by 2040, with gas becoming a key energy source for EP generation. The unit starts quickly, be operated easily, with complete set of safety system, and can be as power device and electricity device for oil field and local companies.
2.Core spare parts:
Ignition system: American ALTRONIC.
Controller: Comap, Deepsea, Smartgen
Automatic control system: Automatic control plate and ATS fully automatic switch between generator and national grid.
Woodward technology: Adopted Woodward lean burning technology, Woodward or ComAp speed adjusting system
Starting system: DC24V electric motor.
Mixer: IMPCO
Sparking plug: STITT
3.Genset worksite requirements:
1). Ambient temperature between -40ºC~40ºC;
2). Relative humidity less than 95%(35ºC);
3). Site elevation not higher than 2500m;
4). For outdoor installation, simple rain shelter is required.
4.Gas requirements:
1m from genset's pressure regulating valve
1). Temperature of biomass≤40ºC;
2). Pressure of biomass: 5~20kPa, velocity of pressure≤ 1kPa/min;
3). H2S≤200mg/Nm3;
4). NH3≤20mg/Nm3;
5). Coke tar content≤20mg/Nm3;
6). Impurities particle size≤5μm; impurity content≤30mg/Nm3;
7). Moisture Content of biomass ≤40g/Nm3;
8). Biomass calorific value≥4.2MJ/Nm3.
Purification of biomass gas has a significant impact on machine life and continuous running time!

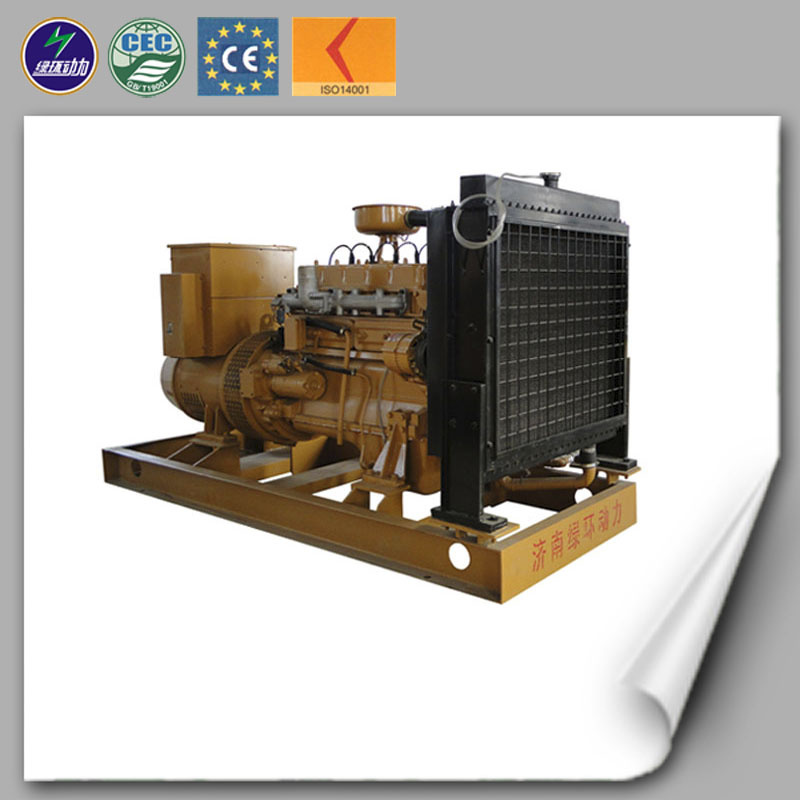

5.Parameter of Natural Gas Generator Set
| Model Number (Engine Type) | LHNG120 |
| Brand Name | LVHUAN |
| Prime Power/Standby Power | 118KW/100KW |
| Rated Speed | 1500/1800RPM |
| Rated Frequency | 50/60Hz |
| Rated Voltage | 400V/230V |
| Phase | AC 3-Phase, 4 wire |
| Voltage Stability | ≤±2% |
| Voltage transient | ≤±10% |
| Voltage Stable time | ≤1s |
| Heat consumption | ≤11mj/kw.h |
| Lubricant consumption | ≤1.0g/kw.h |
| Engine Capacity | 12.90 L |
| Cylinder Number | 6 |
| Cylinder Bore | 135mm |
| Stroke | 150mm |
| Starting System | DC 24V electric motor |
| Cooling method | water cooler |
| Lubricant method | Passive and flying lubricant |
| Isolation class | H |
| Protection | IP23 |
| Alternator | Chinese Stamford |
| Power Factor | 0.8 lagging |
| Exciting method | brushless |
| Colour | your choice |
| Certificates | ISO 9001:2008, CE |
| Warranty | 1 year or 1000 running hours which arrives first |
| Type | Open |
| Control system | Automatic alarm system |
| Size | 2850x1100x1750mm |
| Weight | 1900kg |
6.Why you chioce Shandong Lvhuan Power equipment Co.,Ltd.Diesl generator?
1.We are professional manufacturer for gas/diesel generator set, over 15 years produced experience;
2.Products range of gas engines/genset, including diesel engines, biomass generator sets, natural gas generator sets, biogas generator sets, coal mine gas generator set, etc.Products arrange from 5kw-3000kw ;
3.Our workshop covering more than 40000 square meters, techincal engineer and after-service more than 100 people.Also products achieved CE,ISO9001:2008,ISO2001:1400 etc.Certificats.And passed many patents.
4.Our products are well received by our customers in Spain, Italy, Canada, Venezuela, Austraila, Thailand, Malaysia,Philippine,Indonesia,and with some Africa countries etc.
5.We have many cooperation companies :Like dehydration equipment,desulfurization equipment,gasified equipment,recovery system exhaust heat,CCHP system etc.So can offer you complete project proposal if you like.
7.High Configuration
--Ignition system: ALTRONIC(USA)
--Starting system: DC24V electric motor.
--Mixer: IMPCO(USA)
--Sparking plug:STITT
--Engine Control System: Woodward(USA), HEINZMANN(Germany)
--Electric Control System: ComAp(Czech), Deepsea(UK)
--Alternator: Siemens, LEROY-SOMER, Marathon
8. Certificate
We have CE, ISO14001, ISO9001 and CEC certificate to keep the good quality. Please contact us for more details.
9. Service
(1) 24 hours- technology support service and the promptly reply
(2) Professional engineer team and strong technology support
(3) Customized design based on real situation
(4) Detailed and professional layout drawing, installation drawing and other drawing required by the customers supplied
(5) Engineer service on site
(6) Free training in Factory
(7) Equipment test before delivery
(8) One year guarantee period and lifetime service
(9) Spare parts lifetime supplied
10. Accessories
1) Application scope of the Accessories, such as 12v190, 8v190, 6190, 6135 and other engine types.
2.)All parts were from original factories or professional factories, complete in specification, keep good quality.
11.Contact us
| Company | Shandong Lvhuan Power Equipment Co.,Ltd |
| Phone | 86-13969022385 |
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
