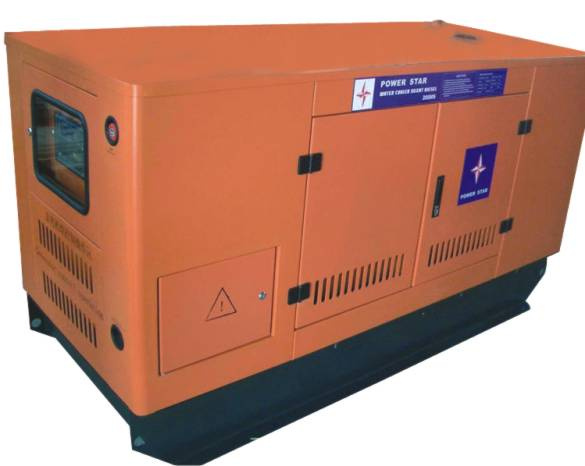

Diesel generator
We produce water cooled diesel generator sets from 8kw up to 1500kw
Also cummins detuz daewoo Volvo yanma lister etc engine brand for your choice
Low-noise units have the following functions and models for your choice:
1. Self-start and automatic function.
2. Electronic speed adjust wiyh multi self protection functions.
3. Unattended, computer long-range remote control function.
4. Digital program-control, The user may make the machine stop automatically at a preset time.
5. Super-low noise design.
6. Lower-noise unit needs no adding of water and is auitable for use in water -deficient areas.
7. The low-noise unit needs no adding of water and is suitable for use in water-deficient areas.
8. Good appearance, coordinated shape, sturdy and durable noise-lowering shell make the product suitable for use at all places.
1000 kVA Generator for Specification
Gensets Model CS800GF
Rated Output ( kVA /KW ) 1000kVA/800KW
Rated Speed ( RMF ) 1500
Prime power/Standby power(kVA) 1000 / 1100
Prime power/Standby power(kW) 800 / 880
Power factor 0.8(Lagging)
Rated frequency(Hz) 50
Rated voltage(V) 400 / 230
Rated curren(A) 1443.4 / 1587.8
Genset Size(L× W× H)(mm) 4450× 2200× 2360
Genset net weight(kg) 9370/9600
Engines
Engine Band Cummins
Manufacture Chong Qing Cummins Engine Co., Ltd)
Model KTA38-G5 Rotating speed (r/min(RPM) 1500
Cylinder No. 12 Max. Output(kW) 970
Cylinder arrangment type L Fuel Standard\Grad China 0#(Light diesel )
Bore/Stroke(mm) 159*159 Fuel consumption ratio (100%)g/kw. H 229/228
Cylinder Total Capacity(L) 37.8 Lub oil grade\Level API-CD above
Compression Ratio 13.9: 1 Lubricating system capacity(L) 135
Intaking method turbo charged Lub oil Temperature 121
Governing Type electrical Lub oil consumption(L/h) 0.86
Thermostat regulate temperature range 82-93 Exhaust gas temperature 499/513
Permit Max. Back pressure(mmHg) 10 Intake pressure (kPa) 2.49
Cooling method water-cooled, inline, direct injection, wet cylinder liner Intake air flow(L/S) 1140/1213
Cooling system capacity(L) 124 Exhaust air flow(L/S) 3051/3306
Start style DC24V 24V Electric start cooling liquid temperature 100/104
Alternator
Manufacture: Megaton Brushless Alternator (MEGATON)
Model: MWL34540 42ES1 Excitation Type: Brushless, automatic electric excitation(PMG as options)
Voltage adjust range: ≥ ± 5% Voltage Regulation scope: ≤ ± 1.0%
Temperature rising: H Voltage control type: AVR(SMAVC6307F)
Insulation Class: H Overloading ability: 1.5 times 2 minutes
Protection degree: IP22 Short circuit ability: 3 times 2 seconds
Power Efficiency: 96.1% Cooling method: Self-cooling type
Telephone Interference Factor: THF<2%, TIF<50 Rotor type: Salient pole type
More products information psl cotnact with me by email pls
We would like to introduce ourselves as a leading manufacturer and exporter. Specialized in generator, engine, water pump, gradening machine and other power equipment which passed, CE, EPA and ISO9001 attestation.
We are the manufacture of the below products:
1. Air cooled diesel engine: 4/7/10/11HPS
Air cooled gasoline engine.: 6.5/8/11/13/15 HPS
2. Current diesel, gasoline generator from 0.45kw up to 6kw.
SILENCE DIESEL WATER& AIR COOLED SILENCE GENERATOR FROM 8KW UP TO 500KW
3. (high pressure)diesel, gasoline water pump: 1.5, 2, 3, 4 inch.
4. Pressure washer
5. Tractor with light tower
6. Garden machine
7. Construction machine
We do believe you will find our products are in the great competitive position in this line.
