Water-Cooled Diesel Generator Silent Type (GF2-50kVA)

Water-Cooled Diesel Generator Silent Type (GF2-50kVA)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union

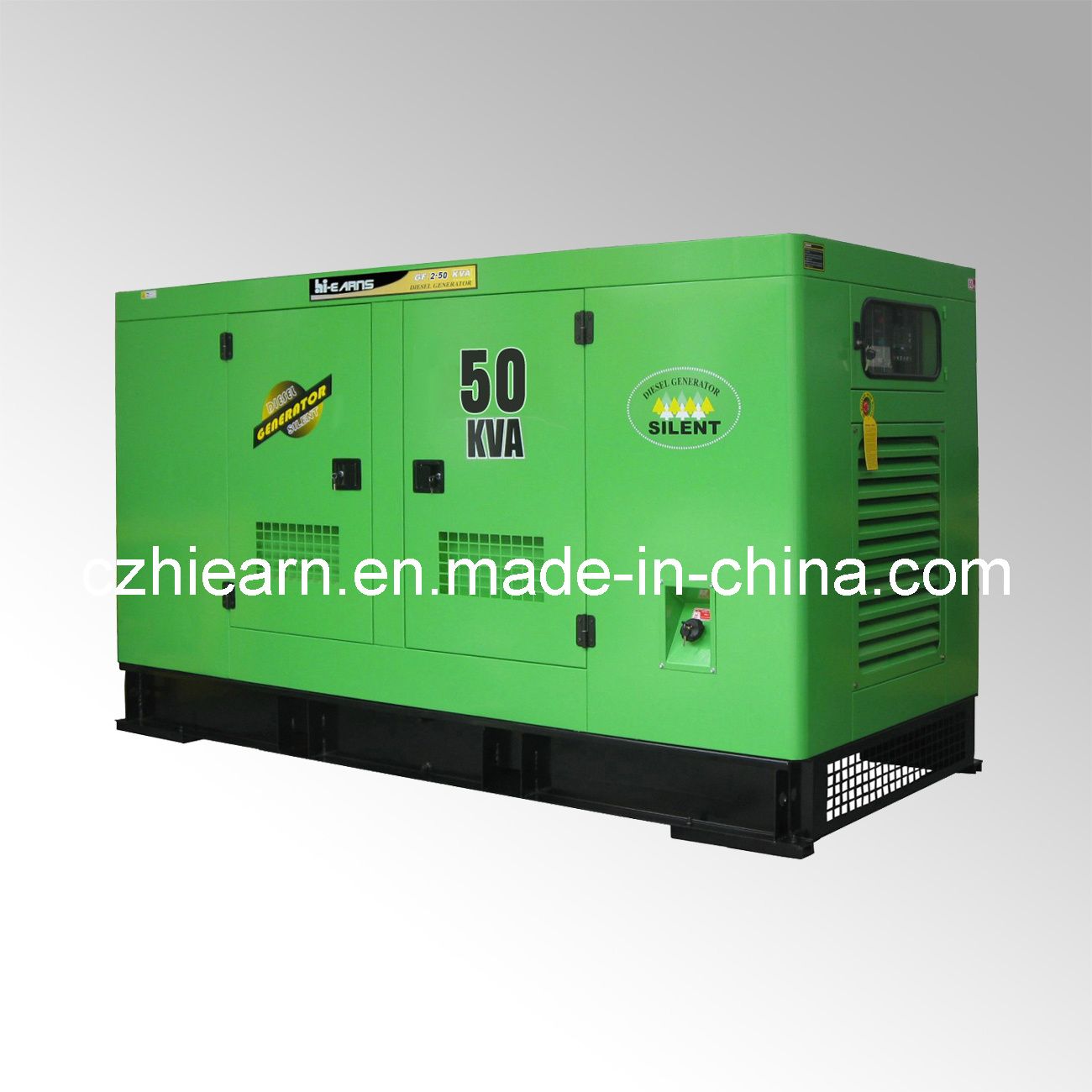

50KVA silent diesel generator set with Cummins engine (GF2-50KVA)

With Famous Quanchai engine, best mute cotton and silence housing to make sure the lower noise;


1)Cummins engine, Stamford/Engga/Marathon alternator

2)Low fuel consumption

3)Good quality and after service

4)Silent type or openframe type are choosed by you

5)Also different famous water-cooled diesel engine can be choosed by you like
MODEL  GF2 - 50KVA
Standby Power(50HZ ) 42KW / 52KVA
Prime Power(50HZ ) 40KW / 50KVA

ENGINE DATA
Manufacturer/Model: DCEC Cummins 4BTA3.9-G2,4-cycle
Air Intake System: Turbo
Fuel System: A type fuel pump
Cylinder Arrangement: 4 in line
Displacement: 3.9L
Bore and Stroke:  102×120(mm)
Compression Ratio: 16.5:1
Rated RPM: 1500rpm
Max.Standby Power at Rated RPM:          65KW / 88.4HP
Governor Type: RSV Mechanical(Std) / Electronic(Optional)
Exhaust System
Exhaust Gas Flow: 14.8m3/min
Exhaust Temperature: 497°C
Max Back Pressure: 10kPa
Air Intake System
Max Intake Restriction:  6.2kPa
Buring Capacity: 5.9m3/min
Intake Flow: 158m3/min
Fuel System
100%(Prime Power) Load: 216 g/Kw.h
75%(Prime Power) Load: 214 g/Kw.h
75%(Prime Power) Load: 221 g/Kw.h
Oil System
Total Oil Capacity: 146.L
Oil Consumption: ≤4g/kwh
Engine Oil Tank Capacity: 14.3L
Oil Pressure at Rated RPM: 350kPa
Cooling System
Total Coolant Capacity: 24L
Thermostat: 83-95°C
Max Water Temperature: 100°C
Open Type  Soundproof Type
Overall Size:1800(mm)×750(mm)×1450(mm) Overall Size:2400(mm)×1000(mm)×1450(mm)
Weight:930kg Weight:1450kg
Prod Model: GF2-50KVA
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engine Model: Dcec Cummins
Optional Features: Dcec Cummins 4BTA3.9-G2
Generator Output: 50kVA
Cooling System: Water Cooled
Engine Company: Cummins
Cooling Method: Water Cooling
Stroke: Four Stroke
Installation Method: Fixed
Type: Self-Starting Diesel Generator
Output Type: AC Three Phase
