Home Generator Products Water Cooled Diesel Generator 10kw-2000kw (100GF)

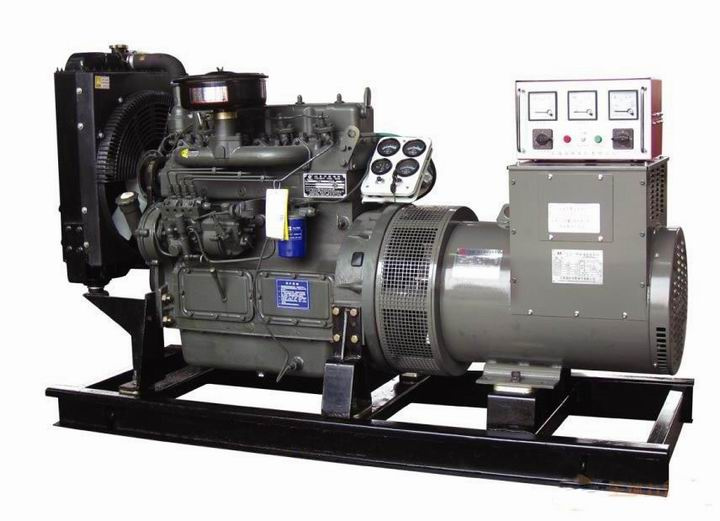

Water Cooled Diesel Generator 10kw-2000kw (100GF)

Water Cooled Diesel Generator 10kw-2000kw (100GF)
Price: Negotiable/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Specification Dimension\Weight
Model Engine Prime Standby Voltage Steady State Voltage Regulation Steady State Voltage Regulation Open type(mm× Mm) Weight(kg) Silent type (mm× Mm) Weight(kg)
KW/kVA KW/kVA (V)
24GF 4B3.9-G 24/30 26.4/33 400/230 ≤ ± 1% ≤ 5% 1950× 700× 1095 876 2600× 1000× 1502 1300
34GF 4BT3.9-G 34/42.5 37/46.25 400/230 ≤ ± 1% ≤ 5% 1950× 700× 1095 893 2600× 1000× 1502 1350
50GF 4BTA3.9-G 50/62.5 55/68.75 400/230 ≤ ± 1% ≤ 5% 1840× 700× 1190 930 2600× 1000× 1502 1450
80GF 6BT5.9-G 80/100 88/110 400/230 ≤ ± 1% ≤ 5% 2150× 730× 1230 940 3060× 1100× 1600 1900
100GF 6BTA5.9-G 100/125 110/137.5 400/230 ≤ ± 1% ≤ 5% 2325× 815× 1315 990 3100× 1100× 1652 1950
120GF 6BTAA5.9-G 120/150 132/165 400/230 ≤ ± 1% ≤ 5% 2479× 960× 1400 1260 3230× 1170× 1800 2300
130GF 6CTA8.3-G 130/162.5 143/178.8 400/230 ≤ ± 1% ≤ 5% 2479× 960× 1400 1470 3500× 1100× 1802 2400
160GF 6CTAA8.3-G 160/200 176/220 400/230 ≤ ± 1% ≤ 5% 2479× 960× 1400 1515 3800× 1200× 1853 2750
200GF 6LTAA8.9-G 200/250 220/275 400/230 ≤ ± 1% ≤ 5% 2530× 975× 1500 2200 3800× 1200× 1903 2900
200GF NTA855-GA 200/250 220/275 400/230 ≤ ± 1% ≤ 5% 3155× 1050× 1540 3300 3590× 1250× 2050 2900
250GF NTA855-G1A 250/312.5 275/343.75 400/230 ≤ ± 1% ≤ 5% 3155× 1050× 1540 3350 4225× 1460× 2150 4000
280GF NTA855-G2A 280/350 308/385 400/230 ≤ ± 1% ≤ 5% 3030× 1100× 1900 3150 4225× 1460× 2150 4000
300GF NTA855-G7 300/375 330/412.5 400/230 ≤ ± 1% ≤ 5% 3155× 1050× 1540 4495 4225× 1460× 2150 4200
360GF KTA19-G3 360/450 396/495 400/230 ≤ ± 1% ≤ 5% 3400× 1360× 2090 4200 4800× 1400× 2103 5400
400GF KTA19-G4 400/500 440/550 400/230 ≤ ± 1% ≤ 5% 3400× 1360× 2090 4250 4630× 1660× 2250 5500
Specification Dimension\Weight
Model Engine Prime Standby Voltage Steady State Voltage Regulation Steady State Voltage Regulation Open type(mm×mm) Weight(kg) Silent type (mm×mm)  Weight(kg)
KW/KVA KW/KVA (V)
24GF 4B3.9-G 24/30 26.4/33 400/230 ≤±1% ≤5% 1950×700×1095 876 2600×1000×1502 1300
34GF 4BT3.9-G 34/42.5 37/46.25 400/230 ≤±1% ≤5% 1950×700×1095 893 2600×1000×1502 1350
50GF 4BTA3.9-G 50/62.5 55/68.75 400/230 ≤±1% ≤5% 1840×700×1190 930 2600×1000×1502 1450
80GF 6BT5.9-G 80/100 88/110 400/230 ≤±1% ≤5% 2150×730×1230 940 3060×1100×1600 1900
100GF 6BTA5.9-G 100/125 110/137.5 400/230 ≤±1% ≤5% 2325×815×1315 990 3100×1100×1652 1950
120GF 6BTAA5.9-G 120/150 132/165 400/230 ≤±1% ≤5% 2479×960×1400 1260 3230×1170×1800 2300
130GF 6CTA8.3-G 130/162.5 143/178.8 400/230 ≤±1% ≤5% 2479×960×1400 1470 3500×1100×1802 2400
160GF 6CTAA8.3-G 160/200 176/220 400/230 ≤±1% ≤5% 2479×960×1400 1515 3800×1200×1853 2750
200GF 6LTAA8.9-G 200/250 220/275 400/230 ≤±1% ≤5% 2530×975×1500 2200 3800×1200×1903 2900
200GF NTA855-GA 200/250 220/275 400/230 ≤±1% ≤5% 3155×1050×1540 3300 3590×1250×2050 2900
250GF NTA855-G1A 250/312.5 275/343.75 400/230 ≤±1% ≤5% 3155×1050×1540 3350 4225×1460×2150 4000
280GF NTA855-G2A 280/350 308/385 400/230 ≤±1% ≤5% 3030×1100×1900 3150 4225×1460×2150 4000
300GF NTA855-G7 300/375 330/412.5 400/230 ≤±1% ≤5% 3155×1050×1540 4495 4225×1460×2150 4200
360GF KTA19-G3 360/450 396/495 400/230 ≤±1% ≤5% 3400×1360×2090 4200 4800×1400×2103 5400
400GF KTA19-G4 400/500 440/550 400/230 ≤±1% ≤5% 3400×1360×2090 4250 4630×1660×2250 5500
500GF KTAA19-G7 500/625 550/687.5 400/230 ≤±1% ≤5% 3443×1300×1916 5010 5500×1800×2418 6500
600GF KTA38-G2 600/750 660/825 400/230 ≤±1% ≤5% 4550×2060×2450 5900 6058×2438×2591 11500
800GF KTA38-G5 800/1000 880/1100 400/230 ≤±1% ≤5% 4800×2060×2450 7550 6058×2438×2896 12500
900GF KTA38-G9 900/1125 990/1237.5 400/230 ≤±1% ≤5% 4900×2200×2450 8500 6058×2438×2896 13000
1000GF KTA50G3 1000/1250 1100/1375 400/230 ≤±1% ≤5% 4525×1900×2310 9900 6058×2438×2896 18000
Prod Model: 100GF
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output: 100kw
Cooling: Water Cooled
Cooling Method: Water Cooling
Stroke: Four Stroke
Installation Method: Portable
Type: Self-Starting Diesel Generator
Output Type: AC Three Phase
Founded in 2010 Shanghai, China, Powercox has perfect general dynamic products and system matching solutions. To create broad prospect mutually on the basis of meeting the demands from customer in an all-round way, Powercox is providing innovational production and service for global clients as well as contributing to sustainable profit and profitable increase. Always adhere to provide users with energy saving, safety, high efficiency mechanical products.

Powercox, paying special concentration to the development of low-carbon-emission and packaged dynamic products, has formed an industrial group including engine, generator, water pump, garden tools, construction equipment, agriculture machinery and photovoltaic products, by which, Powercox enjoys high reputation in its field.

Powercox has got great-leap-forward development by its top rank research and development capacity worldwide. Conform to the idea of global advocate energy-saving emission reduction, it actively searches for solution to produce and provide low pollution products. Actively contribute to environmental protection.

Powercox regards the concept "The quality wins the market; The honesty moulds the quality" as its core enterprise culture. Provides superior products and high quality service to USA, UK, France, Germany, Russia, Chile, Argentina and most EU, Asia and African countries, as well as have good reputation in China domestic market. We always unwavering pursuit of first-class quality, first-class service and first-class technology to return to the community. We only honor to get the recognition and trust of the users.

We sincerely welcome new and regular customers at home and abroad work with us together, share bright future!

Corporate vision - to become the best provider and manufacturer of power equipments in the world!
