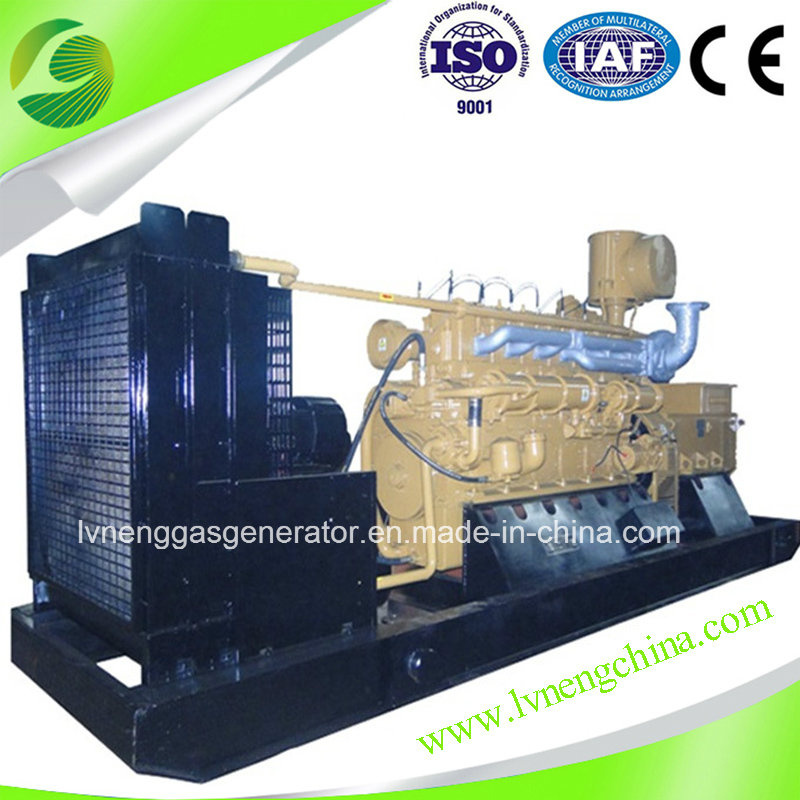

Water Cooled 150kw Turbine Power Natural Gas Generator Price
Core Features:
Power supply range: 10kw-1000kw
Continuous supply range: 8kw-800kw
Standard componient and assembly
Multi-option of control panel
With CE and ISO certificate
Specification and parameters:
Power factor: 0.8
Rated Voltage and Rated Frequency: 400V/230V, 50/60HZ
Voltage Stabilized Regulation: ≤ ± 1.5%
Frequency Fluctuation Ratio: ≤ ± 1%
Insulation Class: H
Fuel: Natural Gas (CNG,LPG), oilfield associated gas
Model Number |
LNNG10-1000 |
|
Brand Name |
Lvneng |
|
Rated Power |
10-1000 |
|
Rated Speed |
1000/1500rpm |
|
Rated Frequency |
50/60 Hz |
|
Rated Voltage |
400/230V |
|
Phase |
AC 3 phase 4 wire |
|
Starting system |
24V DC electric motor |
|
Cooling method |
water cooler |
|
Lubricant method |
passive and splash |
|
Isolation class |
H |
|
Protection |
IP23 |
|
Power Factor |
0.8 lagging |
|
Exciting method |
Brush less |
|
Voltage Stability |
≤±2% |
|
Voltage Transient |
≤±10% |
|
Voltage Stable time |
≤1 s |
|
Engine Capacity |
1.81-71.45L |
Cylinder Number |
2-16 |
Cylinder Diameter |
100-190mm |
Range |
115-210mm |
Heat consumption |
≤9.8mj/kw.h |
Oil consumption |
≤1.63g/kw. |
Cutting - edge of our generator
1.Pure copper water tank for best cooling effect
2.Famous component brand to ensure overall quality
3.Expansion fitting combined with shrinking fitting give high tightness to the system
4.Safety guarantee form electromagnetic valve as well as back-fire relief valve
5.Residual heat CHP recycle system available for choice.
Machine supply details:
Ignition system:We adopt ignition system of magneto which produced by American ALTRONIC company,including:magneto,high-tension coil,sparking plug.
Starting system: DC24V electric motor,12v190 adopt ST710 of direct-current.
Pressure charging system:Pulse Mixed-flow supercharger, compression ration is 1:8,meet engine's requirement for gas-flow rate.
Speed regulating system: EGS gas controller of American WOODWARD Company.
Automatic control system for generator
1.Manual control panel: This mode can not only provide start/stop fundamental function, but also can supervise the sunning situation if the generator set bu showing ass the technical data. Based on the alarm system and protection function, the generator can run more steady and reliably.
2.Long distance control system: The generator can be controlled in a long distance. We fix start time-lapse relay and stop time-lapse relay on the panel, so the system is easier to operate and it can run more reliable.
3.Automatic control panel and automatic loading switch: Freestanding control cabinet with ATS and automatic start control function available form us. It's easy to operate and suitable for the central control of electric equipment.
A. National grid power and self-generated power can be switched freely by ATS with protection.
Other Specification
Payment: TT(30%+70%), TT30%+LC 70%, LC%
Installation service provided if you need
Inspection:100% inspection before shipment in person or third party
FAQ:
1.How to choose the right model?
A: It depends on real output power, Voltage, Frequency and gas type.
2.What is the oil consumption and capacity per hour?
A: 1.0-1.63g of lubricant oil consumption per hour.
1.0 Cubic meter gas can produce1.5-3.0kw/h power.
The capacity depends on gas energy.
E.g 1.0 Cubic meter natural gas produce about 3.0kw/h
3.What is the overhaul?
A: About 30000 working hours. A week is enough to finish.
4. What is the warranty?
A: 1 year. Inside this 1 year, we offer all spare parts free of charge. After this period, spare parts are not free. But, a set of spare parts will be shipped together with machine free.
5. How is the service?
A: We offer installation,repair and maintain service abroad. And online guide service if needed anytime. Our before-sale, in-sale and after-sale service are all trustable, you can name it.
If you have any questions, contact me freely.
