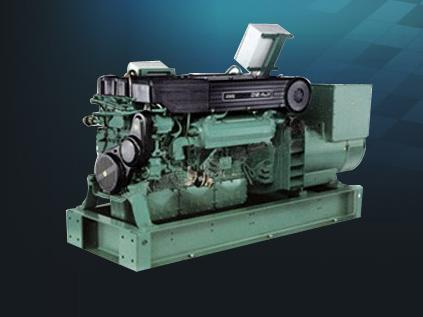

1\Volvo Marine diesel generating sets overview
Volvo was founded in 1927, long-term since, its three core values - quality, safety and environmental protection with its brand has been closely associated together, Volvo diesel generating sets selection, the original import Sweden Volvo engine, because of its powerful, reliable performance, Marion, green environmental protection, the humanized safety design deep global customers. Adopted advanced technology to optimize the burning process and reduce the load duration of operation cost, the optimized design of shock absorber, accurately match the supercharger and slow cooling fans, to reduce the noise, when the unit operation of Germany, TALuft standard discharge efi machine is far better than Germany TALuft emissions standards.
2\Volvo Marine diesel generating sets characteristics
Volvo series Marine diesel generating sets have balanced running, reliable performance and super start-up performance, efficient fuel process and low consumption reduced operating costs and sustained load, advanced low sulphur fuel optimization design extended the engine service cycle, to meet European emissions standards. Generator choose ABB or marathon brushless generator, this generator adopts saliency overall rotor technology, H extremely insulation, steel body, take induction motor and nonlinear load ability, advanced performance, stable operation and reliable.
3\Volvo Marine diesel generating sets cooling and ventilation systems
Standard Volvo diesel generating sets for a closed circulating system
Because of limited conditions may adopt fission computer cooling systems or heat exchanger system
Into the wind and decorate should reasonable vents, avoid heating backflow
Into the wind and vents area to meet minimum headroom requirement
Into the wind and decorate should reasonable vents, avoid heating backflow
Into the wind and vents area to meet minimum headroom requirement
4\Volvo Marine diesel generating sets exhaust system
Volvo diesel generating sets standard configuration a industrial muffler
Exhaust system should minimize the elbow quantity and shorten the total length of exhaust
Beyond the prescribed length and the number of elbow, be appropriately enlarging the exhaust pipe diameter
Tailpipes and units in between shock-isolation installation bellows
Unit model |
Rated power |
Speed/frequency |
Rated voltage |
Diesel engine model |
Unit size |
Unit weight |
KW |
RPM/HZ |
V |
L× W× H(mm) |
Kg |
CCFJ62 |
62 |
1500/50 |
400/230 |
D5AT/77 |
1800X700X1200 |
1120 |
CCFJ70 |
70 |
1500/50 |
400/230 |
D5AT/77 |
1800X700X1200 |
1140 |
CCFJ80 |
80 |
1500/50 |
400/230 |
D5ATA/92 |
1900X700X1200 |
1230 |
CCFJ90 |
90 |
1500/50 |
400/230 |
D7AT/116 |
2200X700X1200 |
1390 |
CCFJ100 |
100 |
1500/50 |
400/230 |
D7AT/116 |
2200X700X1200 |
1390 |
CCFJ110 |
110 |
1500/50 |
400/230 |
D7ATA/139 |
2250X700X1200 |
1510 |
CCFJ120 |
120 |
1500/50 |
400/230 |
D7ATA/139 |
2300X700X1200 |
1560 |
CCFJ160 |
160 |
1500/50 |
400/230 |
D9MG/239 |
2859X1035X1394 |
2490 |
CCFJ180 |
180 |
1500/50 |
400/230 |
D9MG/239 |
2859X1035X1394 |
2590 |
CCFJ200 |
200 |
1500/50 |
400/230 |
D9MG/239 |
2859X1035X1394 |
2675 |
CCFJ250 |
250 |
1500/50 |
400/230 |
D12/310 |
2918X1035X1394 |
3012 |
CCFJ280 |
280 |
1500/50 |
400/230 |
D12/310 |
2859X1038X1394 |
3012 |
CCFJ320 |
320 |
1500/50 |
400/230 |
D16MG/450 |
2400X1051X1644 |
3565 |
CCFJ360 |
360 |
1500/50 |
400/230 |
D16MG/450 |
2400X1267X1799 |
3705 |
CCFJ400 |
400 |
1500/50 |
400/230 |
D16MG/450 |
2450X1267X1799 |
3850 |
