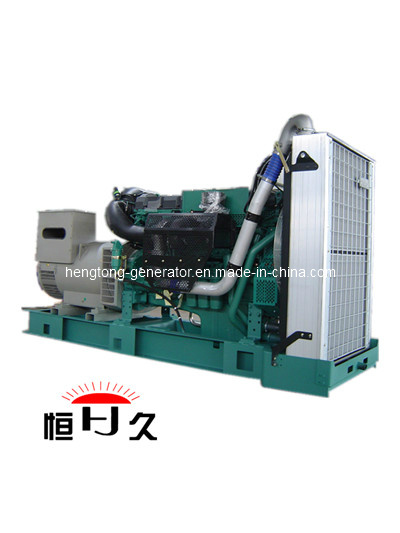

Volvo Electric Generators(HJI 625kVA)
Power Generators 625kVA/Generator set Company/Volvo Diesel Generators/Electric Diesel Generator/Generator PMG /Volvo Generator Set/Diesel Generator Set/Electric Generator Set/Diesel Genset
A: Own Brand: Hengjiu (HJI Series)
-Type: Stamford Brushless
-Manufacturer: Jiangsu Hengtong Generator Manufacture Co., Ltd.
-Output Type: AC Three-Phase
-Frequency: 50/60 Hz
-Rated Power (kVA): 625
-Insulation Class: H
-Bearing Number: Single/ Double
-Protection Class: 23
-Powerful Robust and Universal Brushless Generator, technology authorized by Shanghai Stamford with 100% Copper Wires and 100% Rated Power Guarantee.
B: Diesel Engine Information
-Optional Diesel Engine: Cummins, Volvo Penta, Deutz, Styer, Daewoo, Chinese Weichai, Shangchai, Wudong, Paou and Jichai.
-Output Type: 1500RPM 24V Electrical Start
-Rated Power (kVA): 625
-Cylinder No.: 4
-Bore * Stroke (mm): 108*130
-Displacement (L): 4.76
C: Generator Set Information
-Brand: Volvo/Hengjiu or OEM
-Type: GF500V
-Output Type: AC 400V 50Hz Three-Phase Four-Wire
-Controller Basic Control System
-Normal Power (kVA): 625
-Standby Power (kVA): 687.5
-Rated Current (A): 900
-Cooling System: Air Cooled
-Weight (Kg): 4050
-Dimension (mm): 3400*1400*1950
D: Test before shippment
1, Each Generator Set shall be put into commission more than 4 hours totally, tested on idle load, fully load and 10% overload.
2, Noise level shall be tested.
3, All of the meters on the control panel shall be tested.
4, The appearance of the Set and the label, nameplate shall be tested. "
Voltage available: 50Hz: 380-400-415V/ 220-230-240V; 60Hz: 220-380-416-440-480V/ 110-208-220-240V. Any special voltage is also available as cilent's request.
E: Packing & Warranty
Packing: Wooden, Plywood or Metal Case.
Delivery Time: Less than 25 working days after receiving prepayment.
Warranty: One year or 1, 000 hours from the date of shippment
(15 Months or 1, 200 hours for Alternator Part).
Our warranty standard is higher than most manufacturers for about 25%, because we are confident in our strict test and quality management during each step of manufacture.
F: Generator Set with Silent Canopy:
The silent generator set produced by Hengtong is scientifically designed, in which such advanced technologies in the field of acoustics and airflow science are adopted, thus casuing its noise reduced to 68-75dB (An average value measured at 7 meters away from the set), It is applicable to the places, where there are high requirments for the noise, such as hospital, residential quarters and office buildings.
H: Optional AST & ATS Control System:
AST (Automatic Start Type Control System), Optional Automatic Start Type System is provided with a 101A control module or a DACT704 module with LCD display. When there is an interruption in the commercial power supply (or there is a start signal in other generator sets), this generator set will, subject to time delay acknowledgement (0-30 S adjustable), be automatically started (1-8 times adjustable). In addition, it is provided with a basic protection function and digital or meter indication of voltage, current, frequency and rotation speed parameters.
ATS (Automatic Transfer System), The optional system is provided with a fully automatic transfer switch, a control electric apparatus and an indicator light on the control panel and is coordinated with an automatic type contral cabinet, thus serving the fuction of automatic changeover between the power supplied by the grid and the power generated by the genset.
Parameters of Hengjiu Volvo Diesel Generator Set |
Type |
Parameters of Generator Set |
Parameters of Engine |
(400V Three-Phase, Four-Wires, 50Hz) |
(24V Electric Start, 1500RPM) |
Power of Output (KW/KVA) |
Rated Current(A) |
Net Weight (KG) |
Dimensions (MM) |
Type |
Power |
Cylinders No. |
Bore* Stroke |
Displacement |
Prime Power |
Standby Power |
Length |
Width |
Height |
(KW) |
(MM) |
(L) |
GF68V |
68/85 |
75/94 |
123 |
1100 |
2080 |
720 |
1450 |
TD520GE |
83 |
4 |
108*130 |
13 |
GF80V |
80/100 |
88/110 |
145 |
1150 |
2080 |
750 |
1450 |
TAD531GE |
98 |
4 |
108*130 |
13 |
GF100V |
100/125 |
110/138 |
181 |
1250 |
2080 |
750 |
1450 |
TAD532GE |
125 |
4 |
108*130 |
13 |
GF120V |
120/150 |
132/165 |
217 |
1560 |
2400 |
870 |
1450 |
TAD731GE |
148 |
6 |
108*130 |
20 |
GF150V |
150/187.5 |
165/206 |
270 |
1600 |
2550 |
1050 |
1500 |
TAD732GE |
179 |
6 |
108*130 |
34 |
GF180V |
/ |
180/225 |
270 |
1800 |
2600 |
1050 |
1770 |
TAD733GE |
197 |
6 |
108*130 |
34 |
GF200V |
200/250 |
220/275 |
360 |
2400 |
2650 |
1120 |
1590 |
TAD734GE |
241 |
6 |
108*130 |
29 |
GF260V |
260/325 |
280/350 |
468 |
2700 |
3000 |
1120 |
1590 |
TAD941GE |
308 |
6 |
120*138 |
35 |
GF300V |
300/375 |
330/412.5 |
540 |
2810 |
3100 |
1100 |
1630 |
TAD1241GE |
354 |
6 |
131*150 |
35 |
GF360V |
/ |
360/450 |
648 |
3000 |
3100 |
1100 |
1630 |
TAD1242GE |
387 |
6 |
131*150 |
35 |
GF360V |
360/450 |
400/500 |
648 |
3800 |
3300 |
1160 |
2000 |
TAD1640GE |
431 |
6 |
144*165 |
48 |
GF400V |
400/500 |
440/550 |
720 |
4150 |
3300 |
1270 |
2030 |
TAD1641GE |
473 |
6 |
144*165 |
48 |
GF450V |
450/562.5 |
500/625 |
810 |
3850 |
3300 |
1160 |
2000 |
TAD1642GE |
536 |
6 |
144*165 |
48 |
GF500V |
500/625 |
550/687.5 |
900 |
4050 |
3400 |
1400 |
1950 |
TWD1643GE |
596 |
6 |
144*165 |
48 |
Jiangsu Hengtong Generator Manufacture Co., Ltd.Is located in Yangzhou city, (3 hours distance by car from Shanghai) which is established in 1986.As a manufacturer, we offer quality Brushless Alternator and Generator Set for Domestic and Overseas Market for more than 20 years.Up to now the total area of factories and offices is almost to 80, 000 M2 and 180 staffs work in our company.
Hengtong started the research and manufacture of 6.5-1760KW brushless AC Synchronous Alternator at 2004 and we've already developed the annual production to 10, 000 sets.Hengtong also produces quality Generator Sets with world class diesel engine such as Cummins, Volvo, Perkins, Daewoo, Styer, Deutz, Shangchai, Wudong, Paou, Jichai, Weichai and so on.Because of stronger research and engineers' hard working, Our Generator sets are applicable as normal and backup power source to communication project, oil industry, airport, air defense, highway and real estate industry.
Our brand "Hengjiu" has been awarded as a Yangzhou famous brand at 2006 which encourages all Hengtong people to offer a better service for our worldwide customers.
For advantaged equipment, standard workshop and high skilled workers, our company has got CE, ISO, CQC, CCS Certificates and other honors.Furthermore, Hengtong has professional sales and after-sales service team for Domestic and Overseas Markets.Under the guidance of the core philosophy "Customer and Service First", Hengtong Generator does provide top quality products and perfect service for all customers.
